Harfington Square End Mill 27/64" x 1" x 27/64" x 2-3/4" TiAlN Coat 4 Flute 30 Degree Helix

Square End Mill 27/64" x 1" x 27/64" x 2-3/4" TiAlN Coat 4 Flute 30 Degree Helix

ID:
AU$80.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

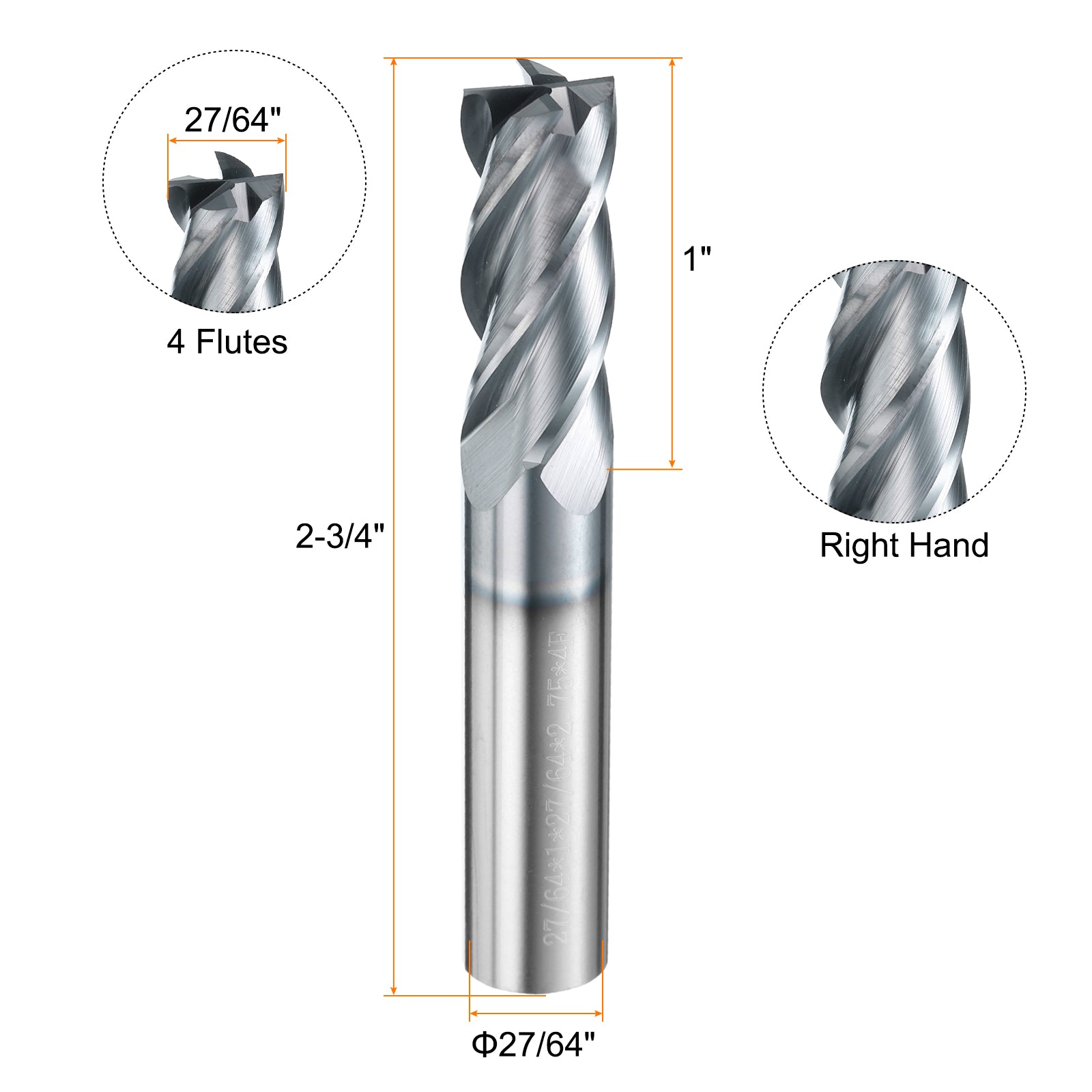

  • Size - Cutting diameter: 27/64" (right hand); shank diameter: 27/64"; cutting length: 1"; total length: 2-3/4"; helix angle: 30 degree; cutting hardness: HRC53-55; number of flutes: 4 flutes. Make sure the end mill is suitable for the specific application and material being processed.
  • Material - TiAlN (Titanium Aluminum Nitride) coating provides high hardness, increased lubricity, and improved heat resistance. Performs well under high-temperature cutting conditions and provides good wear resistance. Micro-grain carbide mill bit has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance.

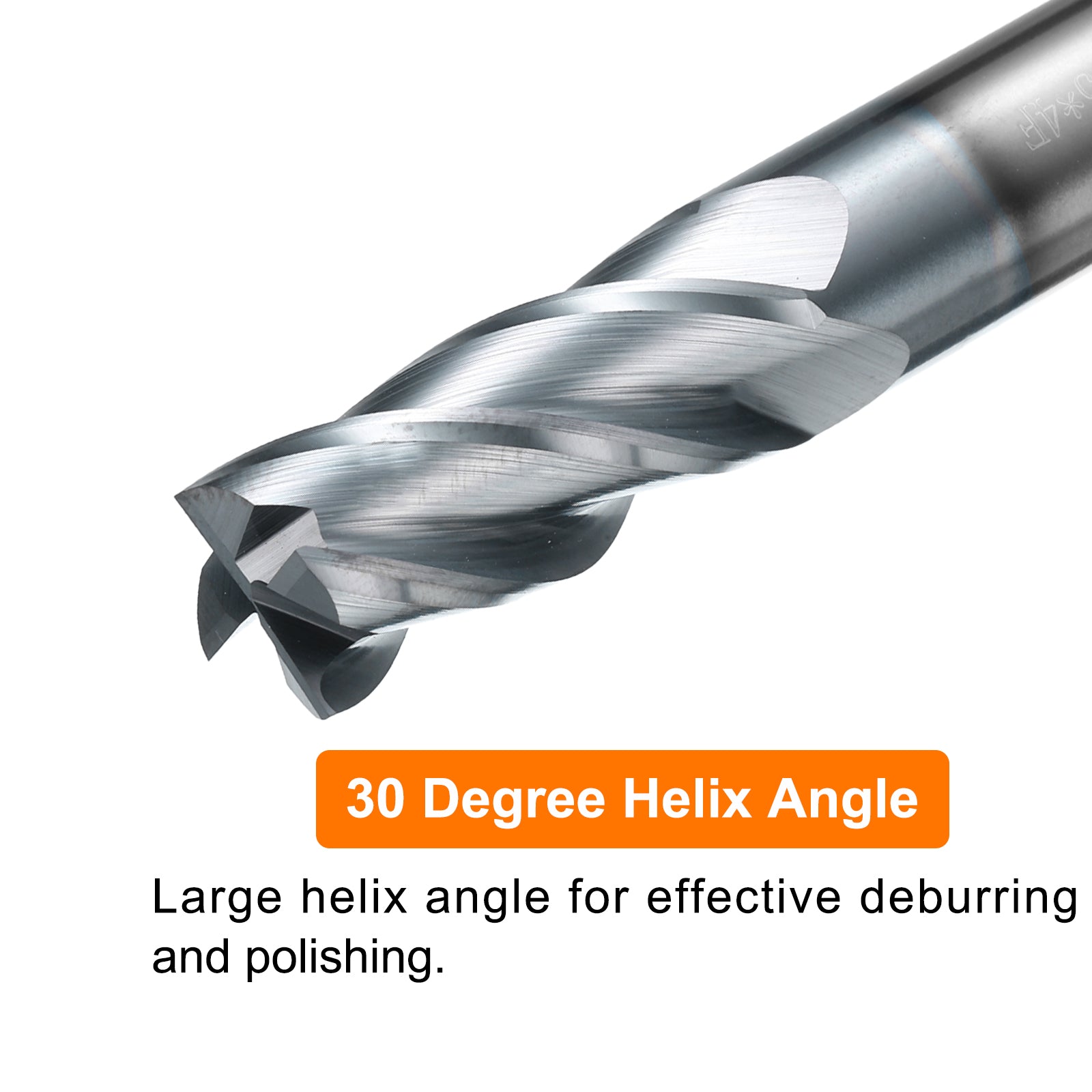

  • Features - Fully ground mirror body with high smoothness, 30 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Precision ground cutting edges for clean, precise cuts. Universal chamfered round shank, good compatibility and easy to use.

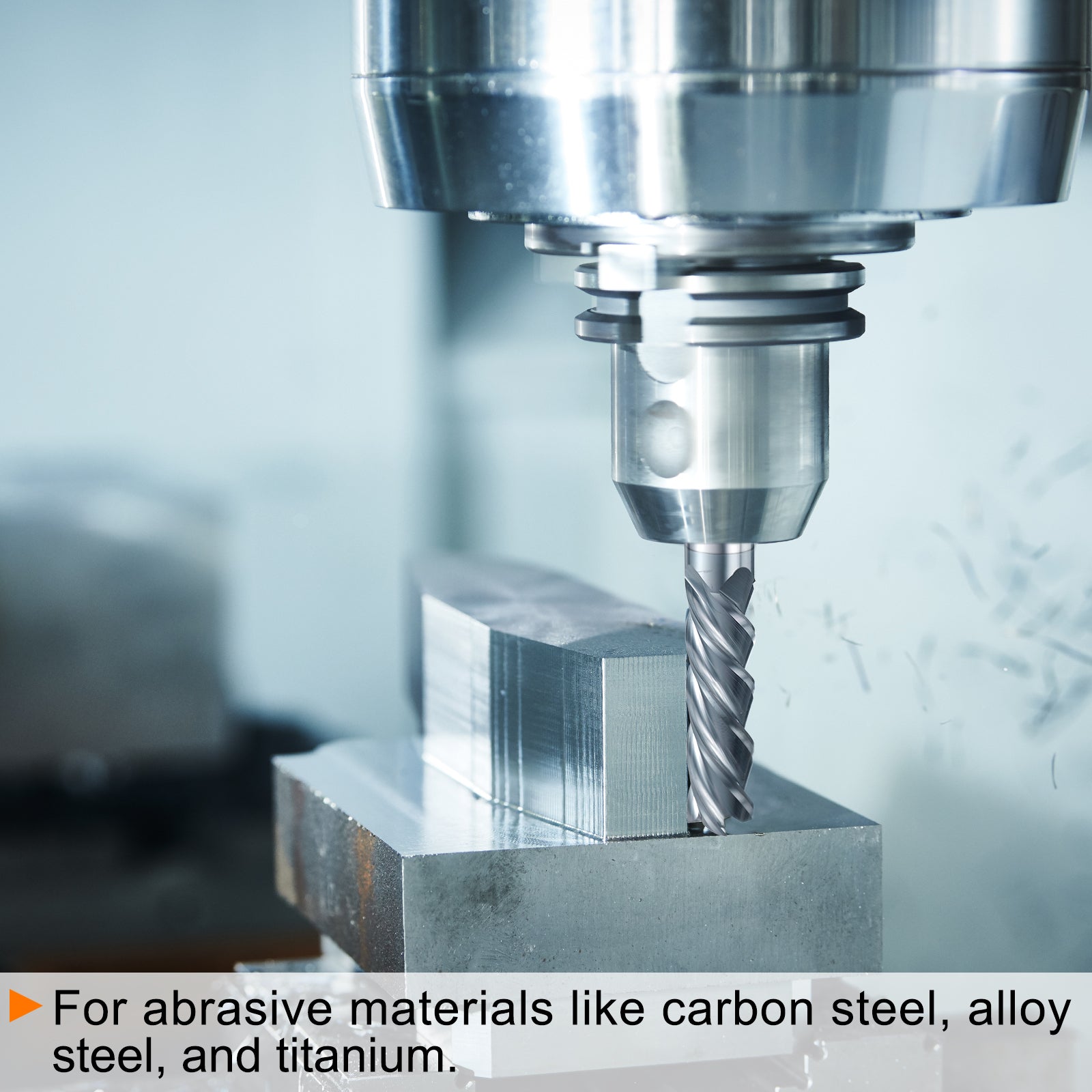

  • Applications - Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. It is a milling cutter for machining abrasive materials like carbon steel, alloy steel, and titanium.
  • Notes - Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
  • In stock, ready to ship
Cart
Cart
About this item
  • Size - Cutting diameter: 27/64" (right hand); shank diameter: 27/64"; cutting length: 1"; total length: 2-3/4"; helix angle: 30 degree; cutting hardness: HRC53-55; number of flutes: 4 flutes. Make sure the end mill is suitable for the specific application and material being processed.
  • Material - TiAlN (Titanium Aluminum Nitride) coating provides high hardness, increased lubricity, and improved heat resistance. Performs well under high-temperature cutting conditions and provides good wear resistance. Micro-grain carbide mill bit has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance.
  • Features - Fully ground mirror body with high smoothness, 30 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Precision ground cutting edges for clean, precise cuts. Universal chamfered round shank, good compatibility and easy to use.
  • Applications - Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. It is a milling cutter for machining abrasive materials like carbon steel, alloy steel, and titanium.
  • Notes - Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

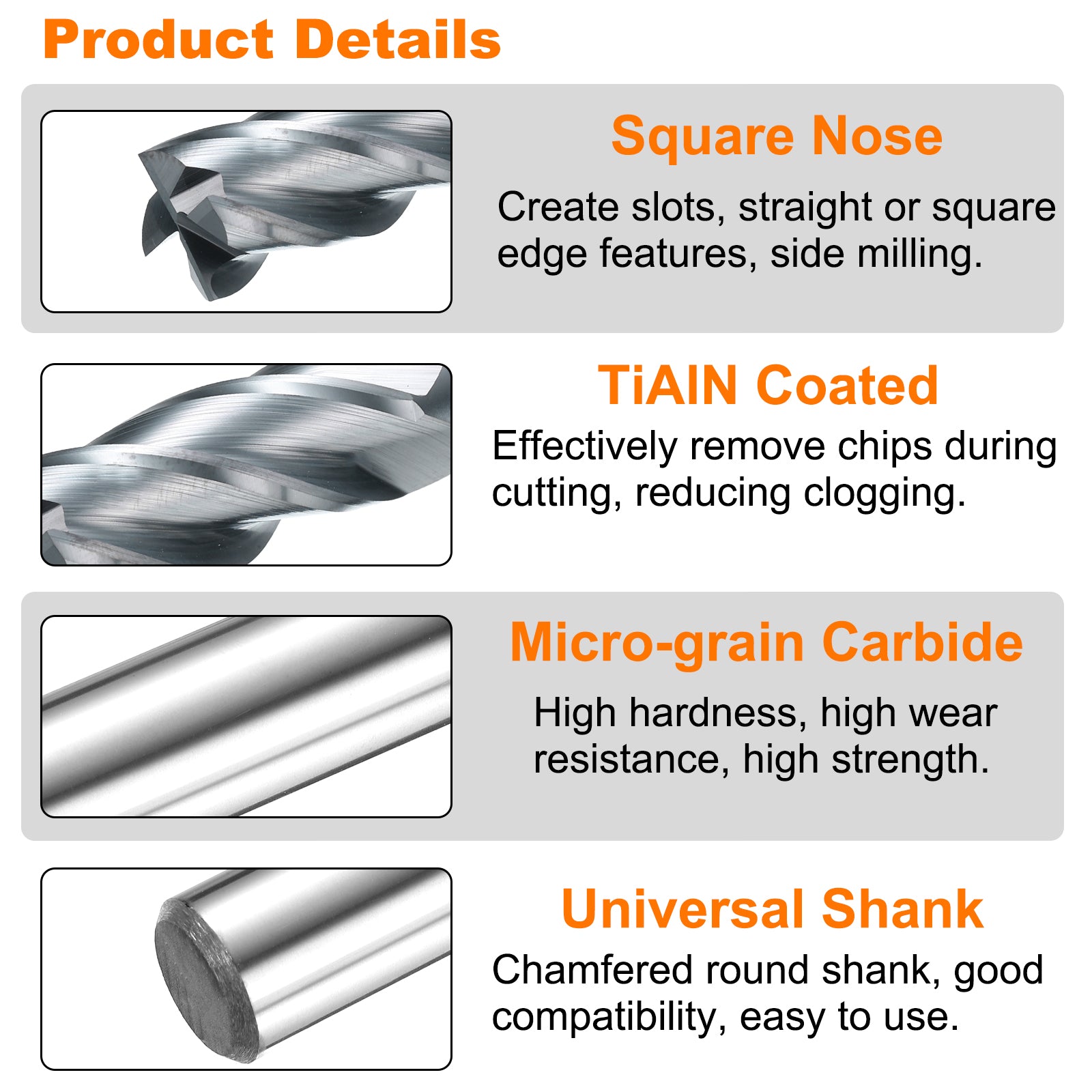

  1. TiAlN (Titanium Aluminum Nitride) coating provides high hardness, increased lubricity, and improved heat resistance. Performs well under high-temperature cutting conditions and provides good wear resistance. Micro-grain carbide mill bit has high hardness, high wear resistance, high strength, enhanced rigidity and high temperature resistance.
  2. Fully ground mirror body with high smoothness, 30 degree large helix angle for effective deburring and polishing, larger core diameter is not easy to break the edge. Precision ground cutting edges for clean, precise cuts.
  3. Square end mill can create slots (keyways or internal grooves), straight or square edge features, flat smooth surfaces, holes or for roughing, finishing and side milling operations. It is a milling cutter for machining abrasive materials like carbon steel, alloy steel, and titanium.
  4. Applicable machines: CNC machining center, engraving machine, precision engraving machine and other high-speed machines. Universal chamfered round shank, good compatibility and easy to use. The longer the length of the tool clamped by the chuck, the better.
  5. Tips: Make sure the end mill is suitable for the specific application and material being processed. Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Select an appropriate feed rate and cutting speed.
