Harfington PCB Screw Terminal Steel Plated Zinc Contact AC300V 12A 2P 5mm Pitch Green 20pcs

PCB Screw Terminal Steel Plated Zinc Contact AC300V 12A 2P 5mm Pitch Green 20pcs

ID:
AU$13.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 25%OFF
    Order $5000+
  • 20%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item

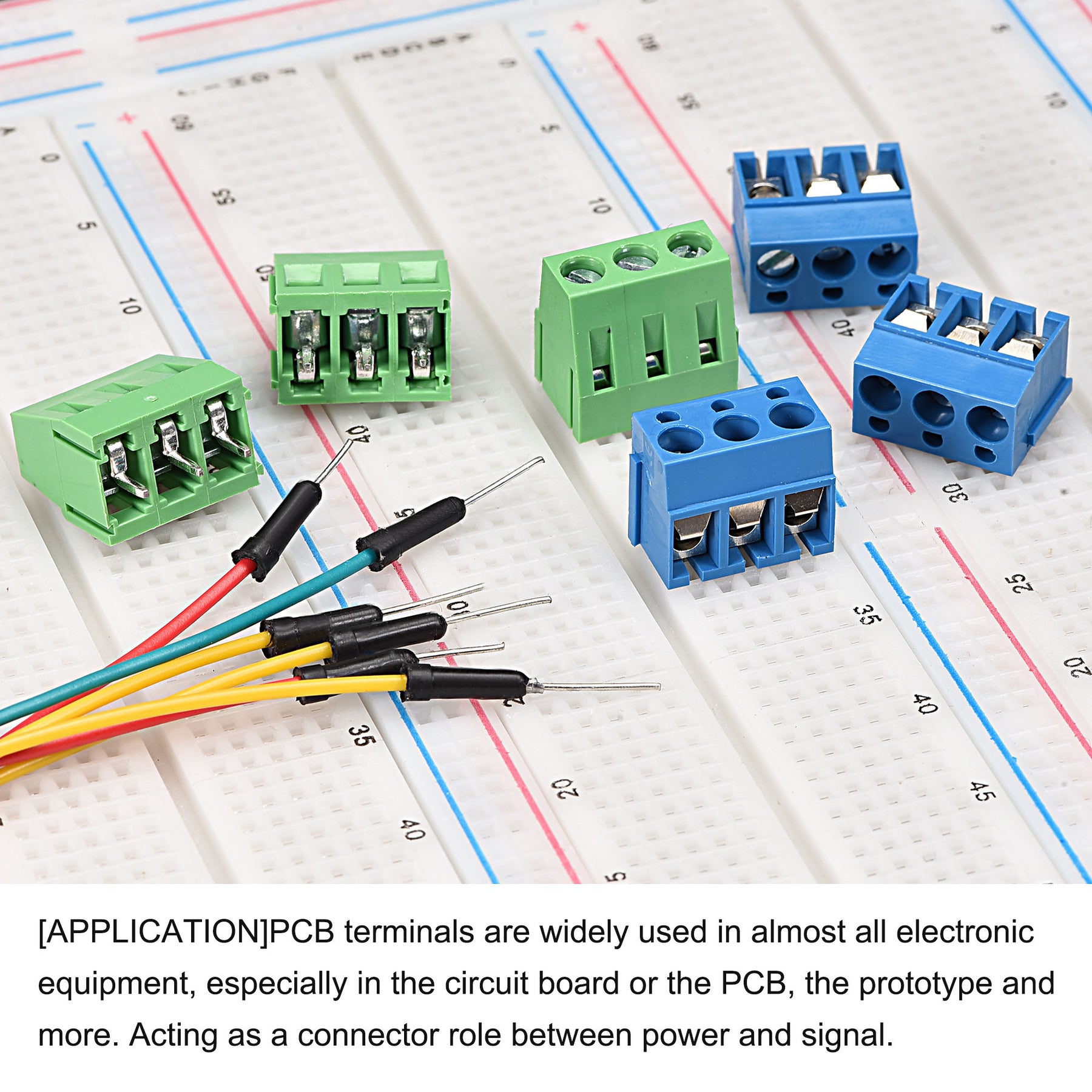

  • PCB terminals are widely used in almost all electronic equipment, especially in the circuit board or the PCB, the prototype and more. Acting as a connector role between power and signal.

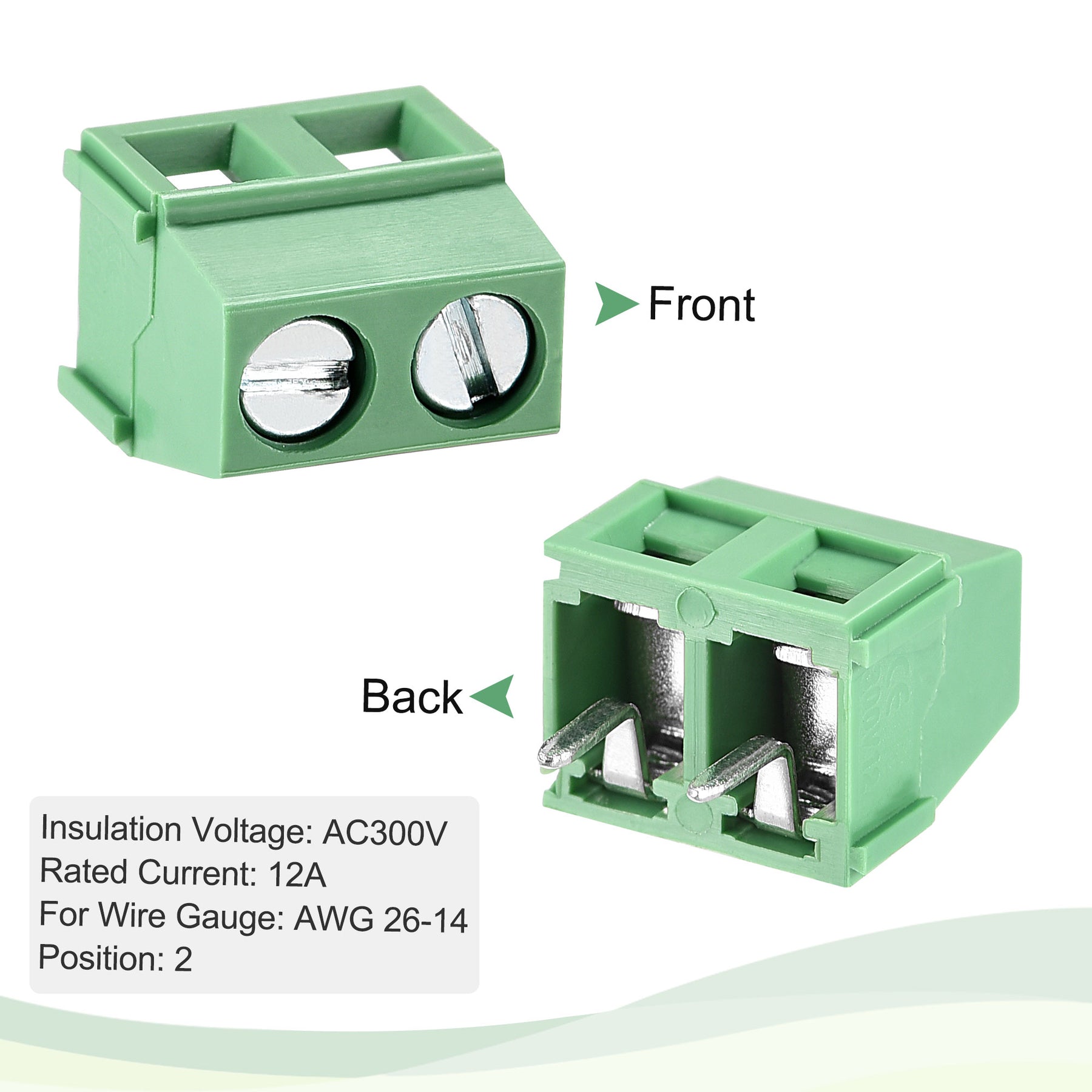

  • The insulation voltage is AC300V, the rated current is 12A, with 2 positions, suitable for the 5mm pitch board and AWG 26-14 wire. Package comes with 20 pack PCB terminal block.
  • The terminal pins are made of brass tinned material, with good electrical conductivity. Side of the each PCB connector is produced with the spliced slot, good for adding positions. Besides, the simple structure makes the small space occupation and easy usage.
  • Insert the pin to the board, then jointing to connect. When wiring is needed, peel off your wire first, then unscrew out of the screw to release the wiring hole, insert the wire into the hole, finally fasten the screws to tightly hold.
  • The wiring sequence should be confirmed in advance, or it is very easy to connect incorrectly.
  • In stock, ready to ship
Cart
Cart
About this item
  • PCB terminals are widely used in almost all electronic equipment, especially in the circuit board or the PCB, the prototype and more. Acting as a connector role between power and signal.
  • The insulation voltage is AC300V, the rated current is 12A, with 2 positions, suitable for the 5mm pitch board and AWG 26-14 wire. Package comes with 20 pack PCB terminal block.
  • The terminal pins are made of brass tinned material, with good electrical conductivity. Side of the each PCB connector is produced with the spliced slot, good for adding positions. Besides, the simple structure makes the small space occupation and easy usage.
  • Insert the pin to the board, then jointing to connect. When wiring is needed, peel off your wire first, then unscrew out of the screw to release the wiring hole, insert the wire into the hole, finally fasten the screws to tightly hold.
  • The wiring sequence should be confirmed in advance, or it is very easy to connect incorrectly.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What is this?
PCB terminals are widely used in almost all electronic equipment, especially in the circuit board or the PCB, the prototype and more. Acting as a connector role between power and signal.

What will I get?

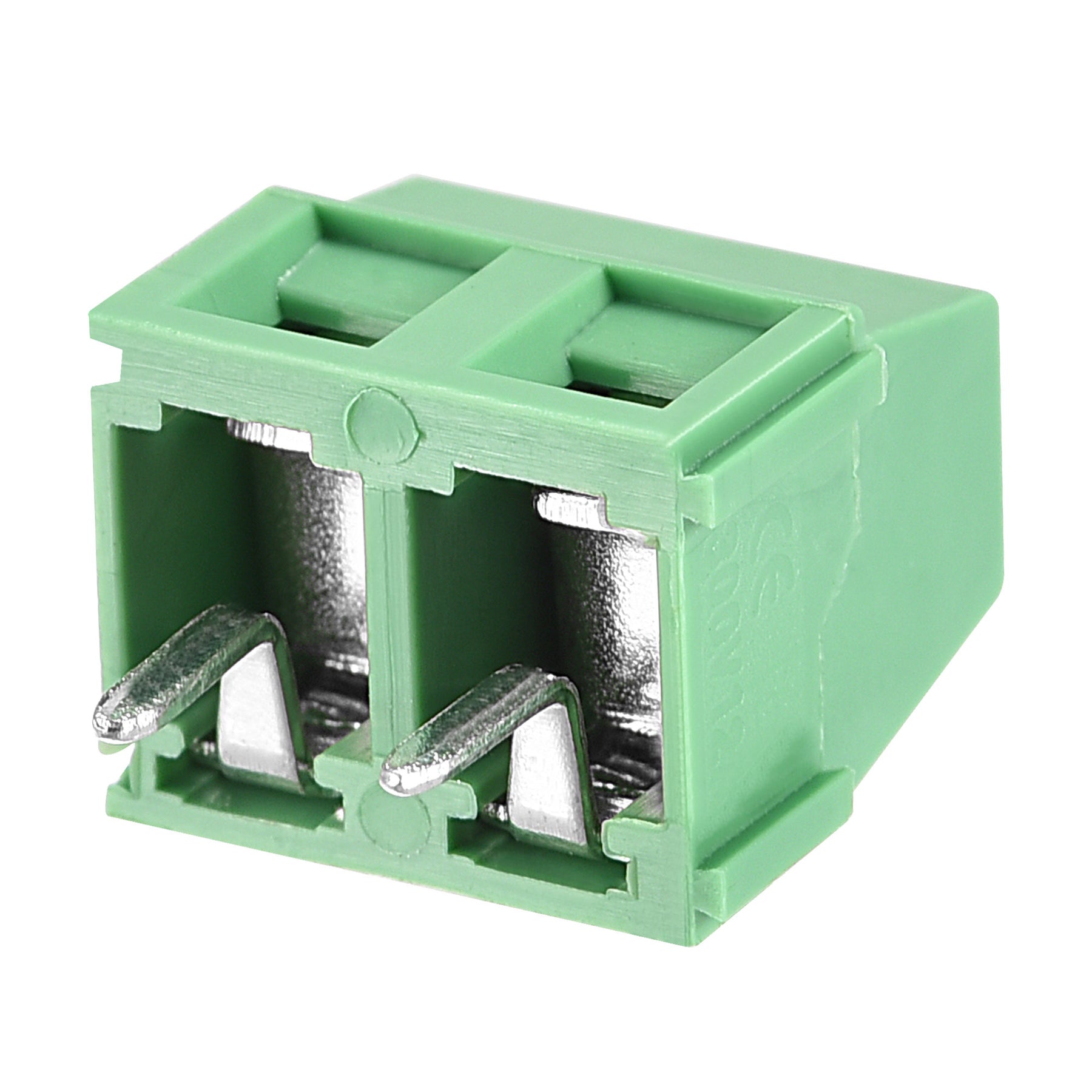

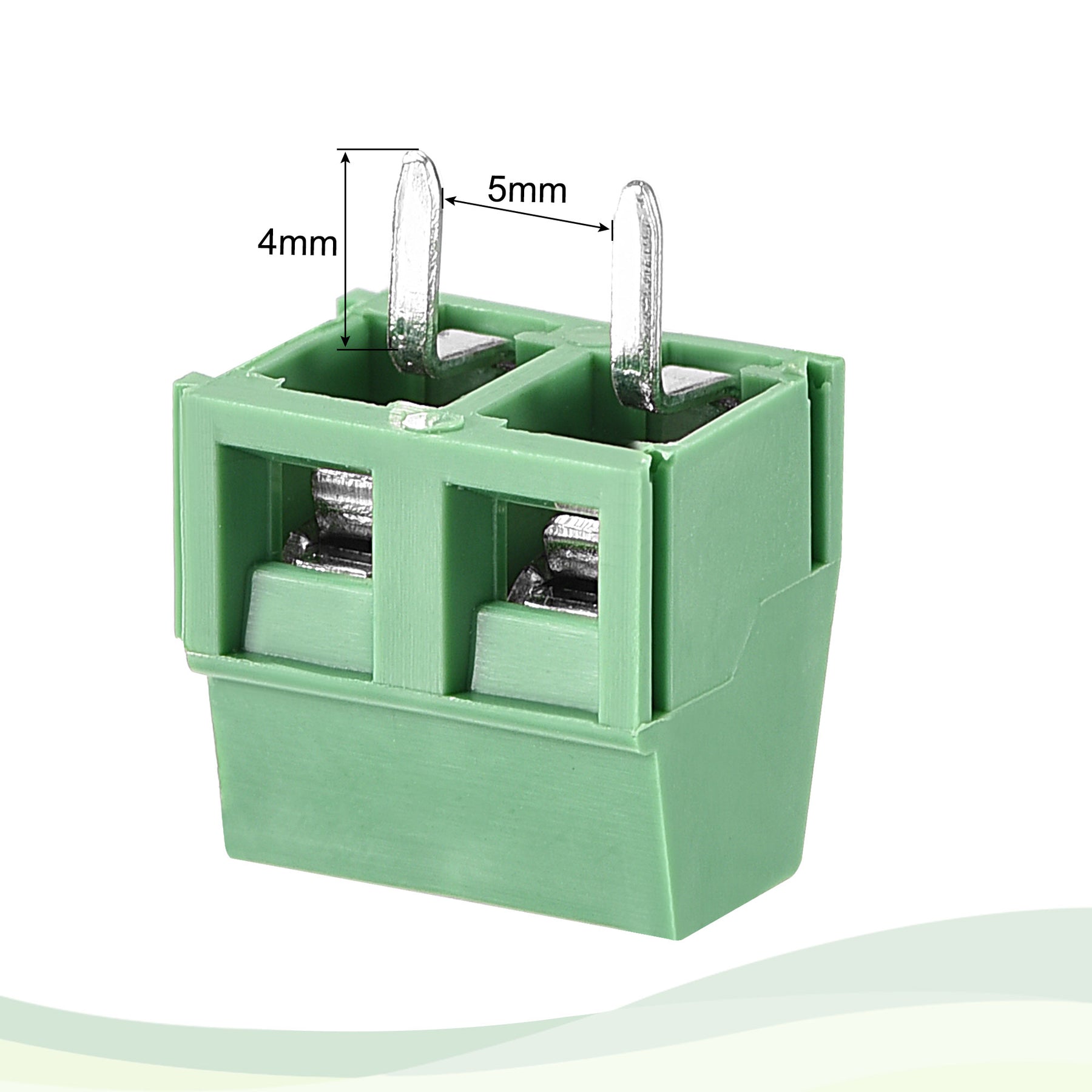

The PCB Screw Terminals, we provide here, is in the size of: Insulation Voltage: AC300V; Rated Current: 12A; For Wire Gauge: AWG 26-14; Position: 2; Pitch: 5mm; Wiring Type: Lifting; Wiring Contact Material: Steel Plated Zinc; Terminal Material: Brass Tinned; Shell Material: Plastic; Color: Green; Terminal Length: 4mm; Body Size (Not Included Terminal): 10 x 8.1 x 10.1 mm / 0.39 x 0.32 x 0.4-inch(L*W*H)

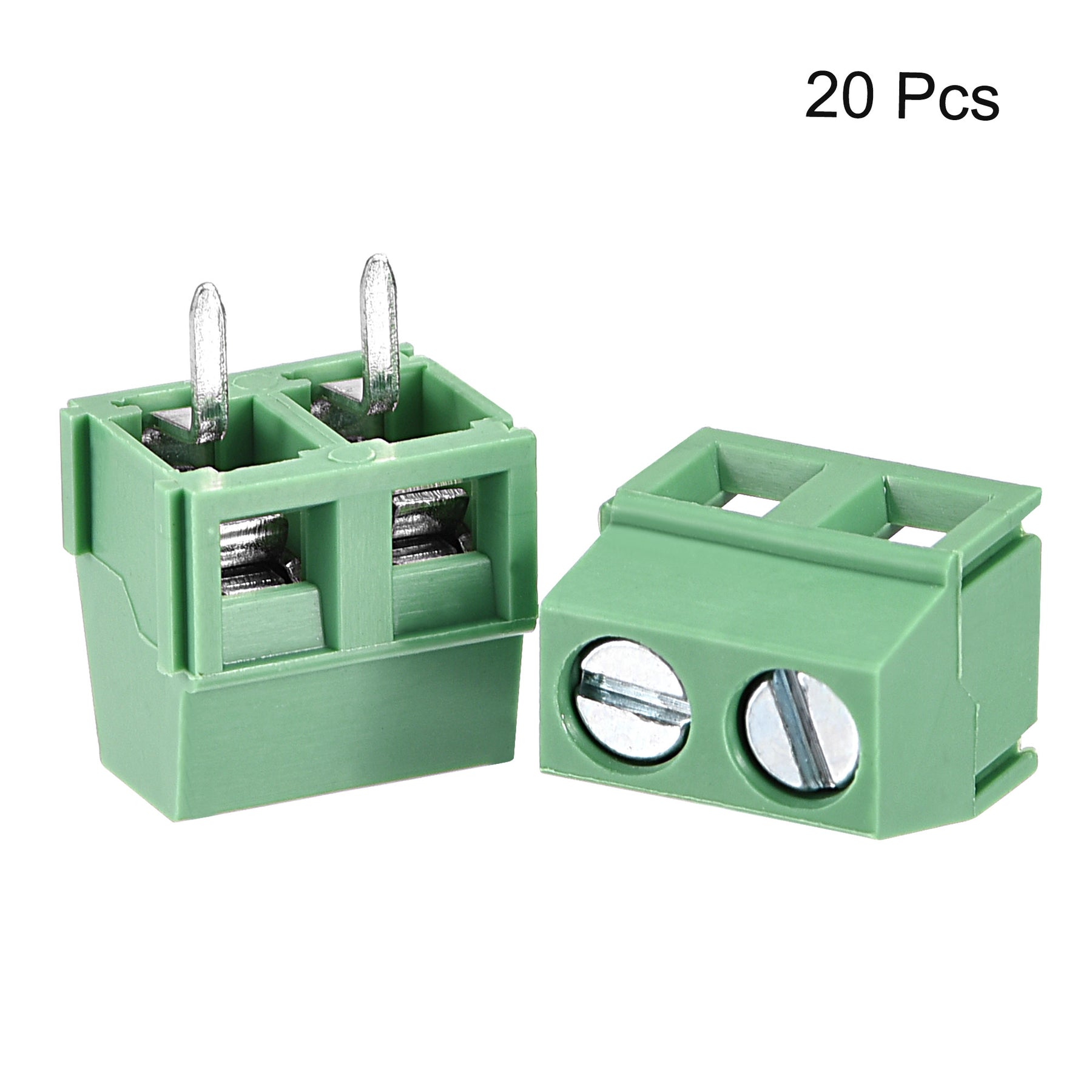

In the package of: 20 x PCB Screw Terminals

Is there any advantages of the product?
GOOD MATERIAL - High conductivity brass tinned contacts terminal connectors with a durable moderate thickness plastic structure.

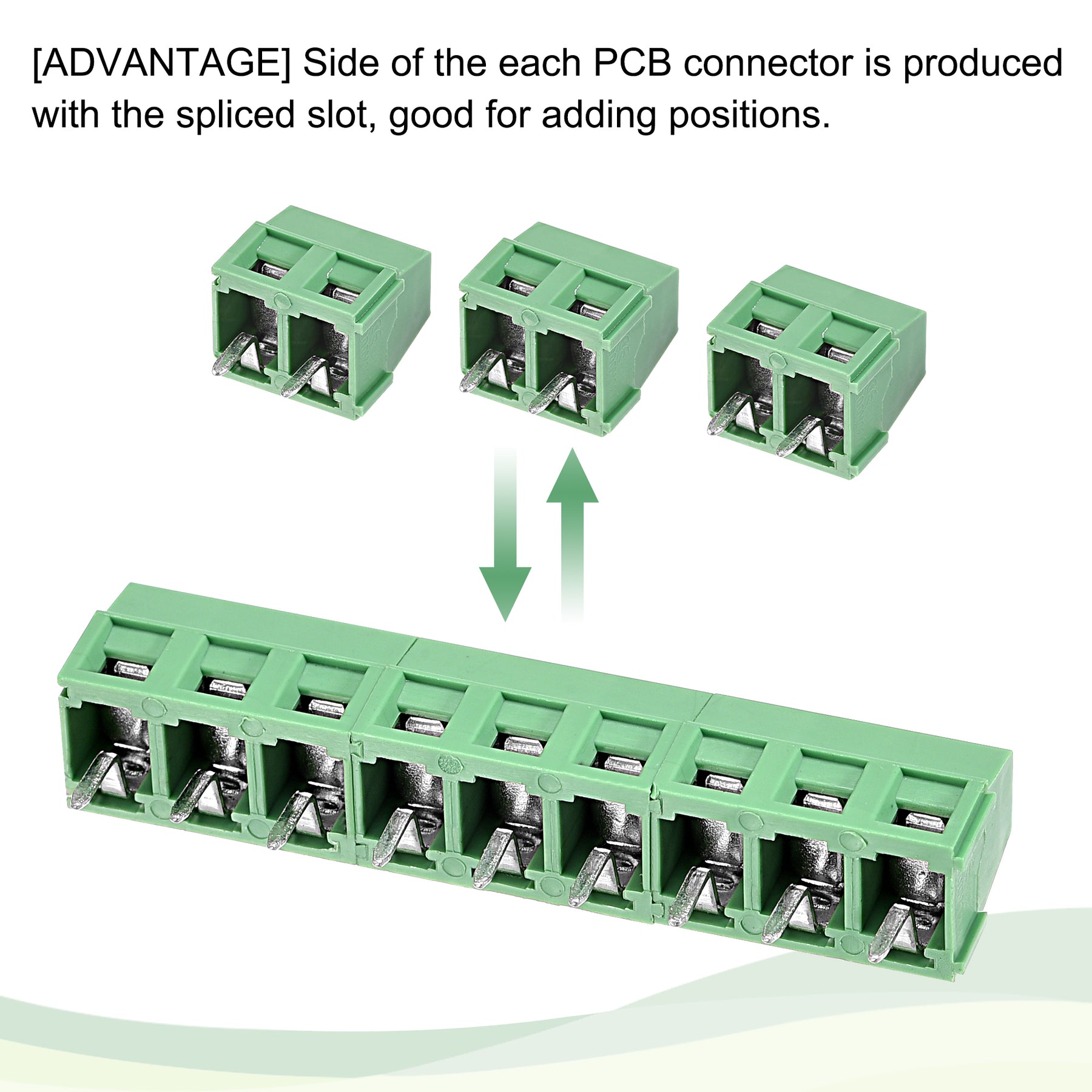

CAN BE SPLICED - Side of the each PCB connector is produced with the spliced slot, good for adding positions.
EASY FASTEN - With lifting type wiring hole, for use with screw to fasten, simple to hold the wire tightly.

How to use it?

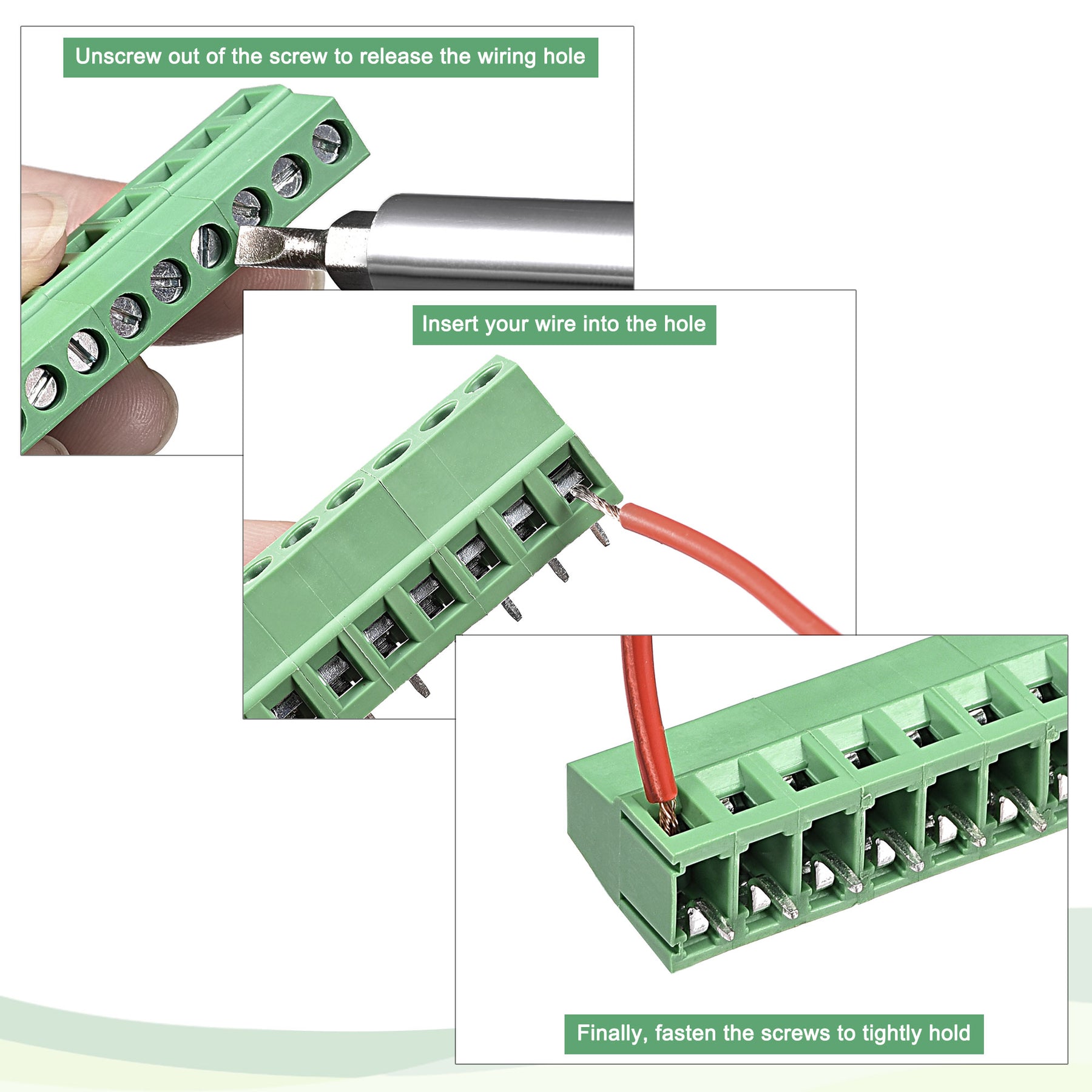

Steps of installation: 1. Insert the pin to the board, then jointing to connect; 2. When wiring is needed, peel off your wire first; 3. Then unscrew out of the screw to release the wiring hole; 4. Insert your wire into the hole; 5.Finally, fasten the screws to tightly hold.

What should  I notice?
The wiring sequence should be confirmed in advance, or it is very easy to connect incorrectly.
