Harfington Uxcell AXK110145 Thrust Needle Roller Bearings 110x145x4mm with AS110145 Washers 2pcs

Uxcell AXK110145 Thrust Needle Roller Bearings 110x145x4mm with AS110145 Washers 2pcs

ID:1459138
ID:1459138
Wholesale Price
20%OFF
Order 8,000+
  • 20%OFF
    Order 8,000+
  • 15%OFF
    Order 3,200+
  • 10%OFF
    Order 1,280+
  • 7%OFF
    Order 800+
  • 5%OFF
    Order 320+
About this item
  • [MODEL] - Bearing Model: AXK110145 (I.D.=110mm, O.D.=145mm, Thickness=4mm); Washer Model: AS110145
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways

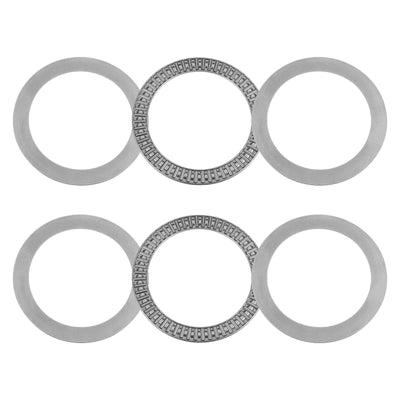

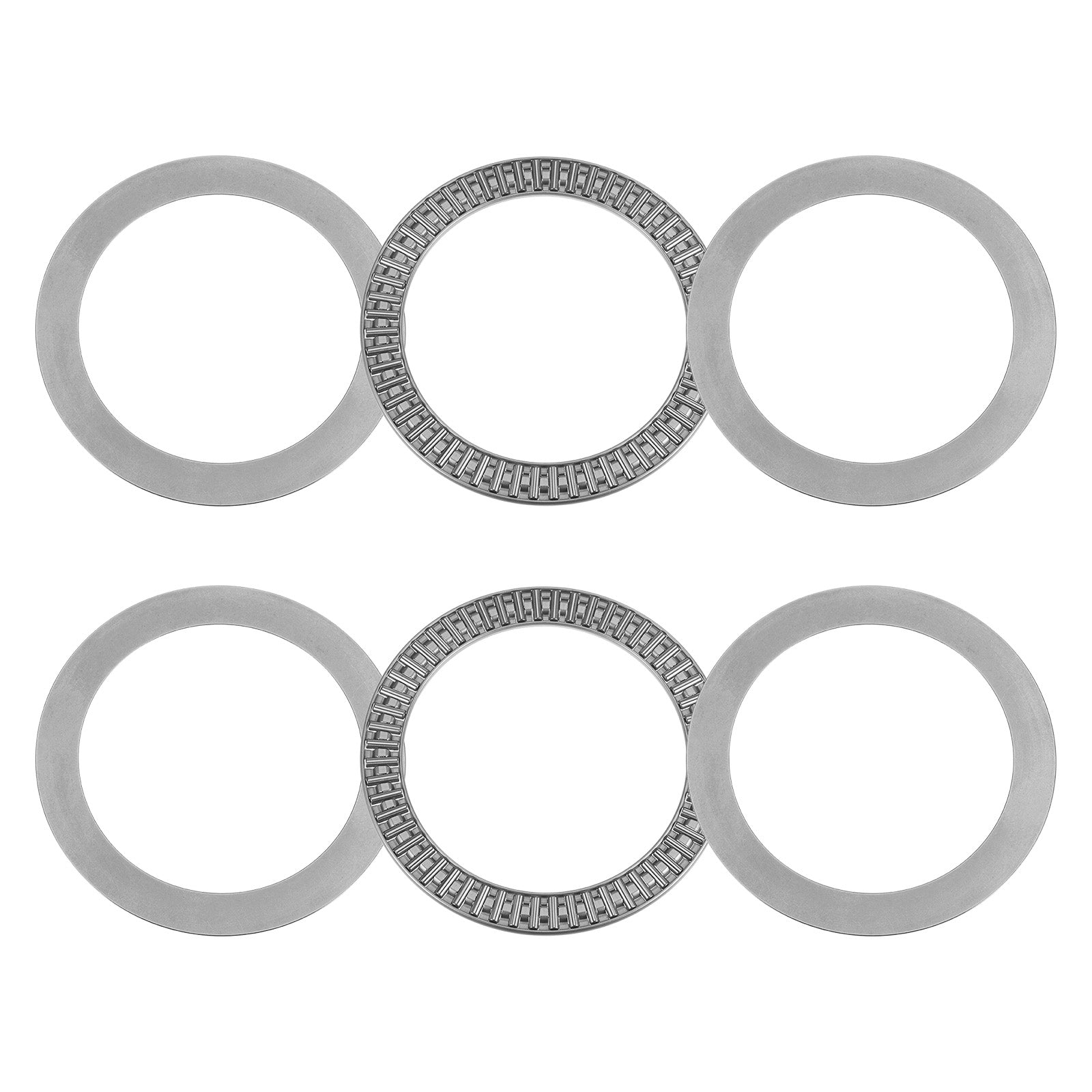

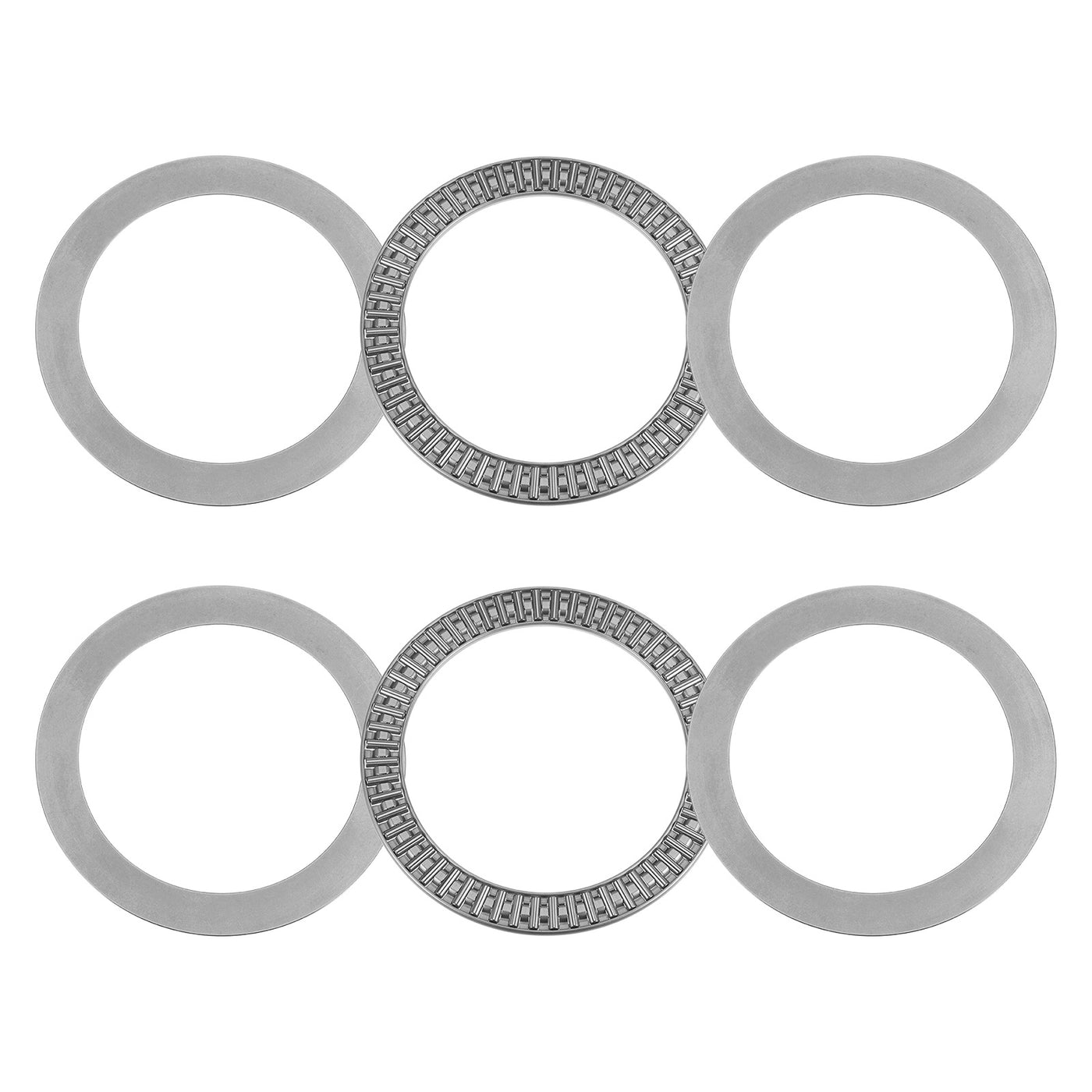

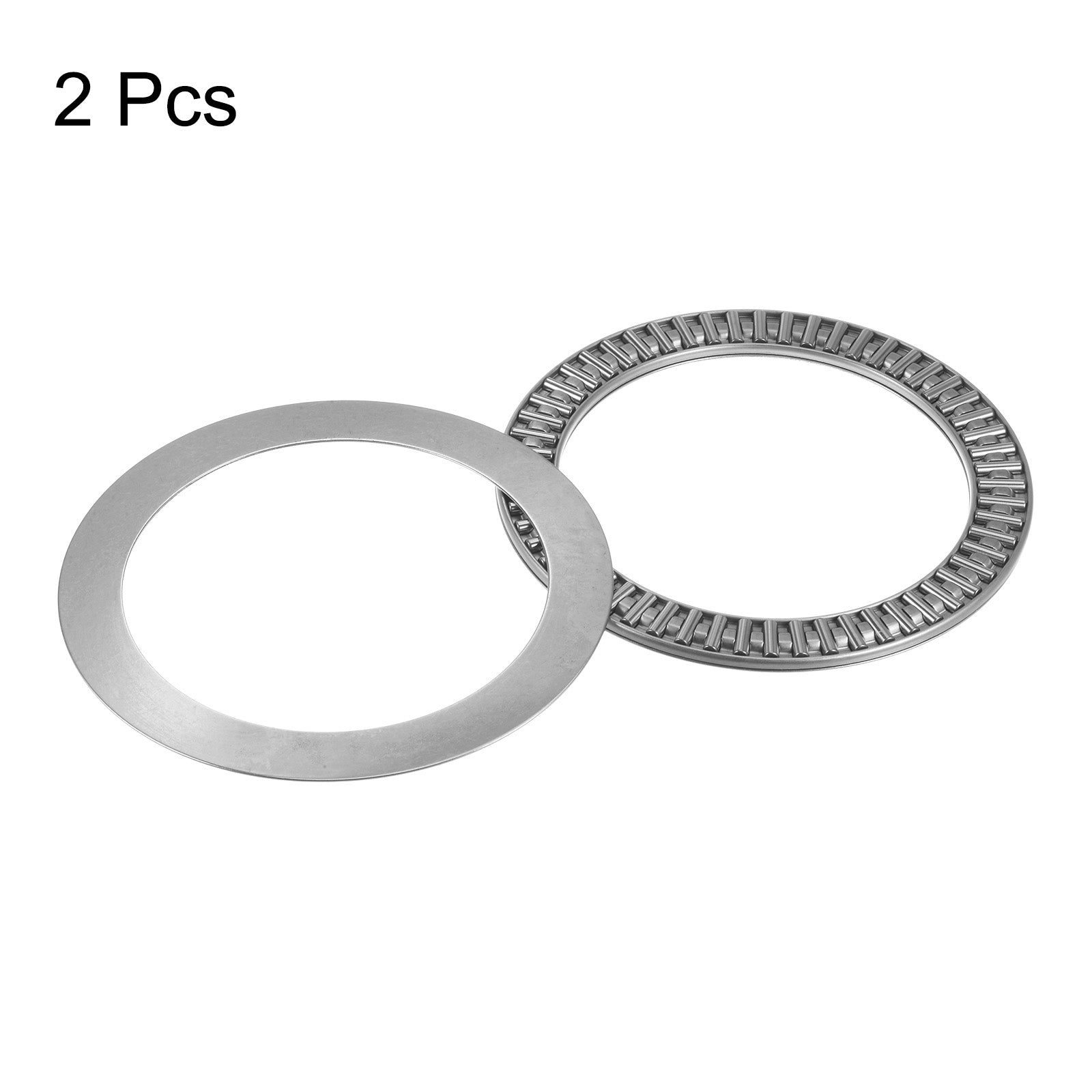

  • [PACKAGE CONTENT] - 2 x Bearings, 4 x Bearing Washers
About this item
  • [MODEL] - Bearing Model: AXK110145 (I.D.=110mm, O.D.=145mm, Thickness=4mm); Washer Model: AS110145
  • [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
  • [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
  • [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
  • [PACKAGE CONTENT] - 2 x Bearings, 4 x Bearing Washers
Specification

Specification

SKU
a23080800ux0390
Brand
Uxcell
Washer Quantity
2
Material
GCr15,ST13 Steel
Bearing Model
AXK110145
Outer Dia.
145mm
Inner Dia.
110mm
Thickness
4mm
Pkg.Qty
2
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description:

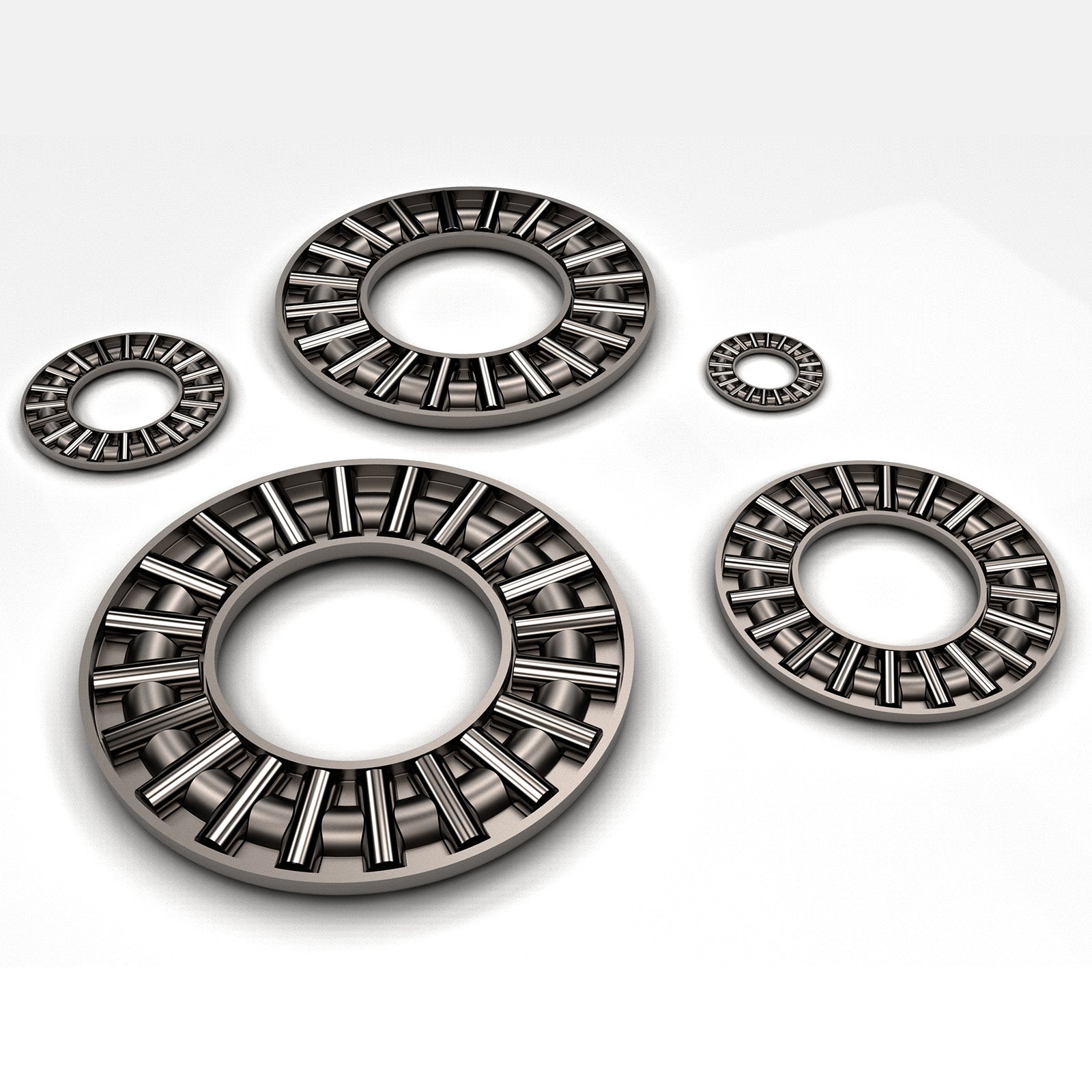

  • Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  • These bearings accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly.

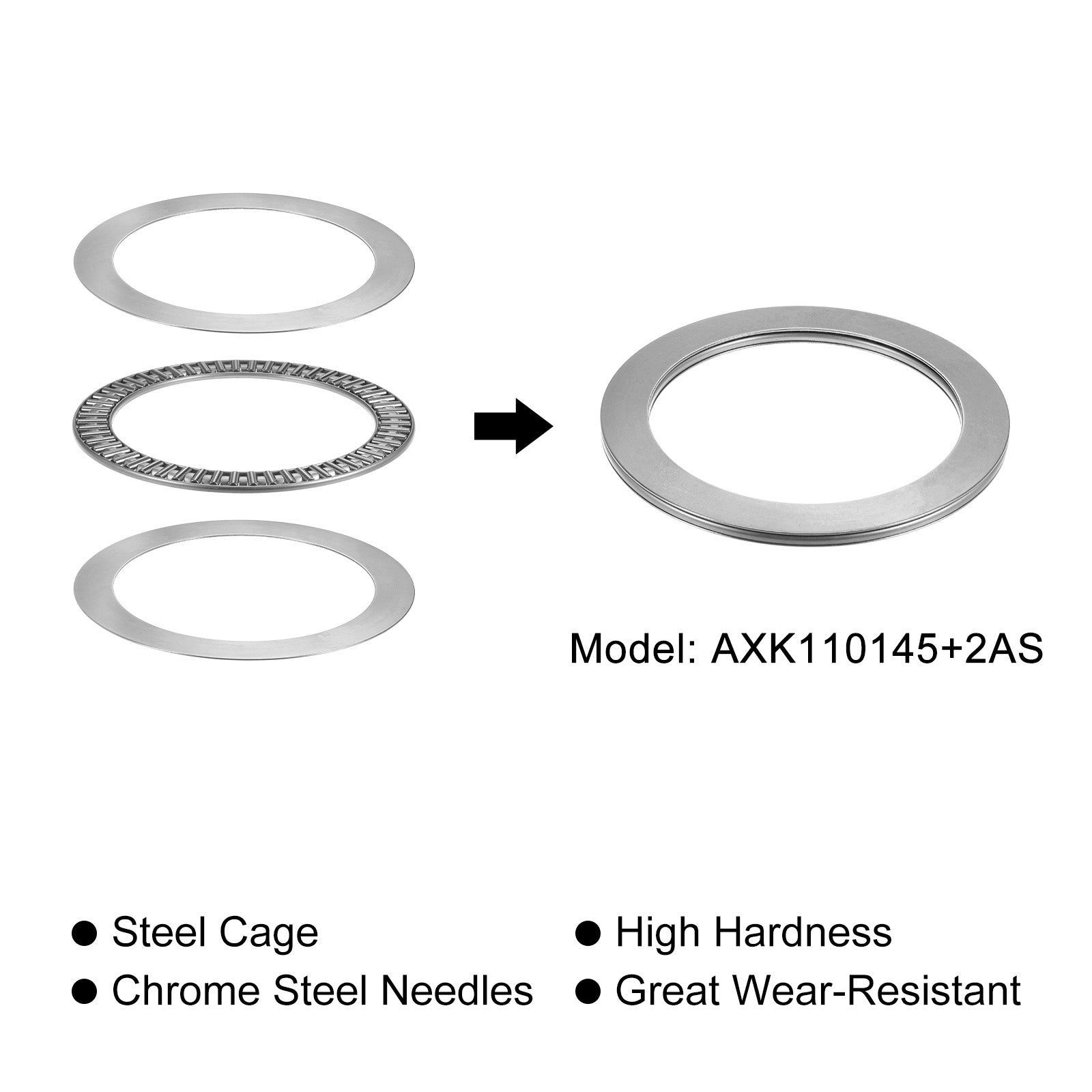

  • Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  • Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.

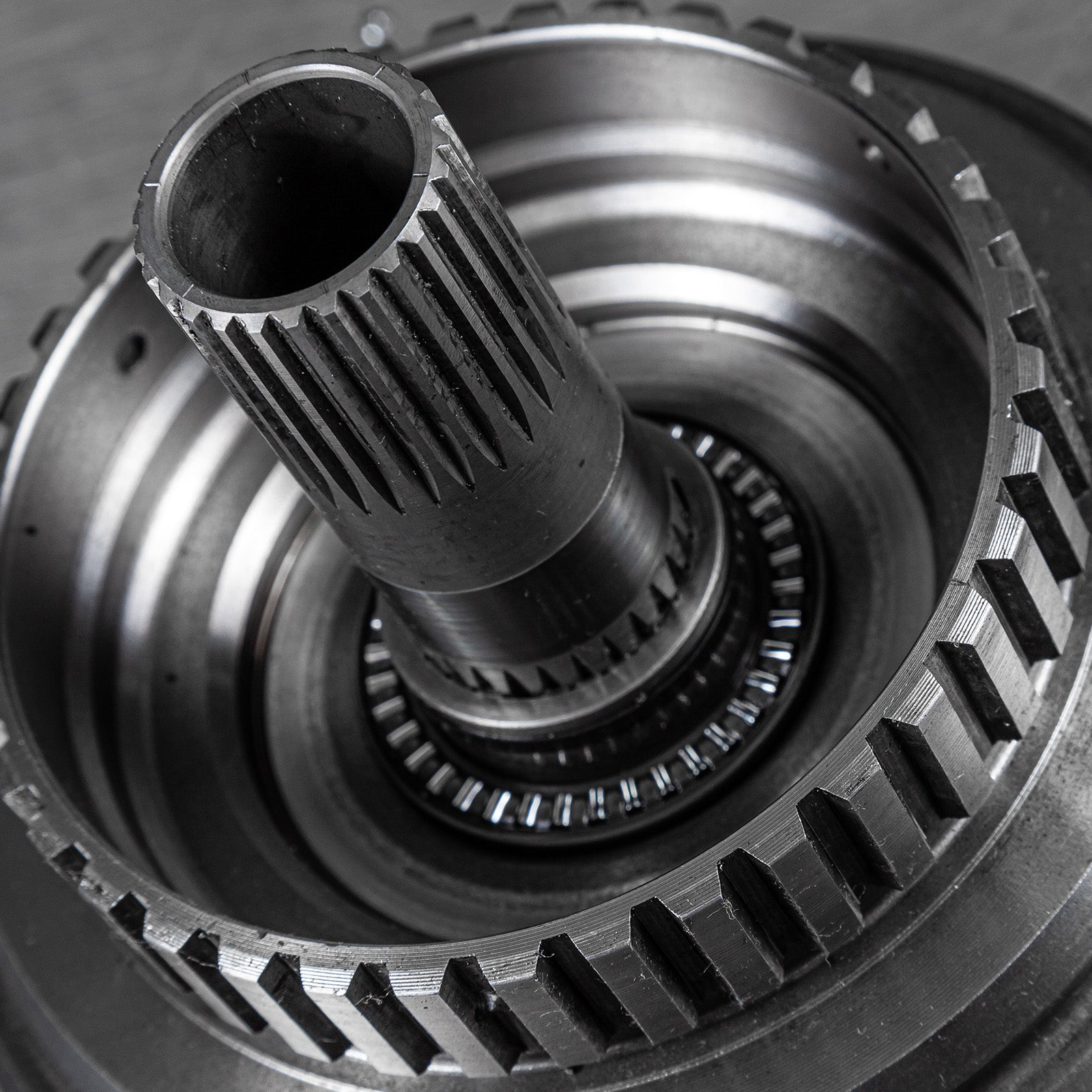

  • Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

  • Bearing Model: AXK110145
  • Bearing Washer Model: AS110145
  • Needle Roller Material: Chromium Steel (GCr15)
  • Cage Material: ST13 Steel
  • Bearing Washer Material: 65Mn Spring Steel

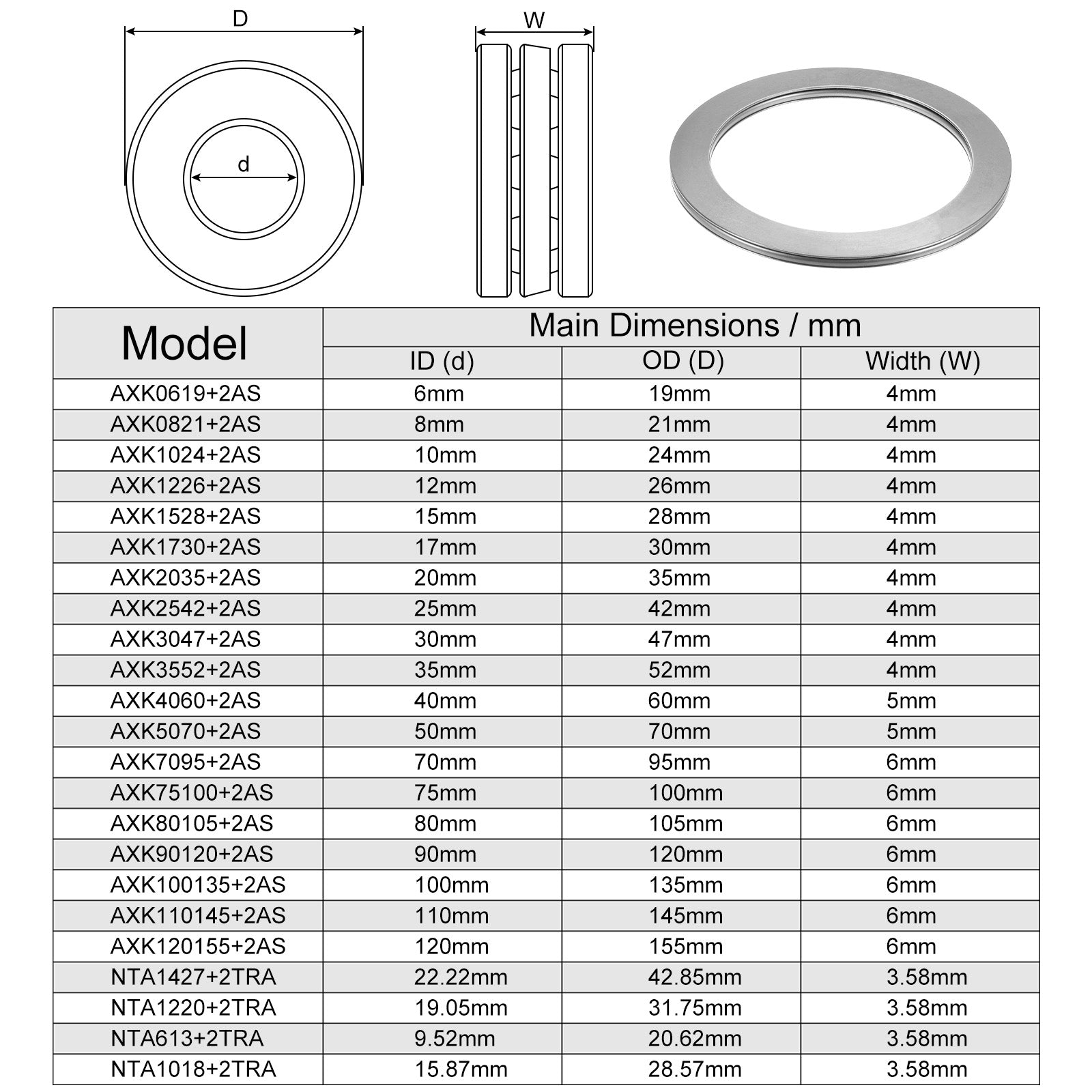

  • Bore Diameter (d): 110mm
  • Outside Diameter (D): 145mm
  • Bearing Thickness (T1): 4mm
  • Washer Thickness (T2): 1mm (Approx.)
Package Contents:
  • 2 x Bearings
  • 4 x Bearing Washers
AU$31.00 AU$15.50/eachRegular price
AU/
Wholesale Price
20%OFF
Order 8,000+
  • 20%OFF
    Order 8,000+
  • 15%OFF
    Order 3,200+
  • 10%OFF
    Order 1,280+
  • 7%OFF
    Order 800+
  • 5%OFF
    Order 320+
  • Ship from the US
  • In stock, dispatch in 24 hours.
Cart
Cart
Free Shipping over AU$30 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Description

Description

Description:

  • Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
  • These bearings accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly.
  • Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
  • Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
  • Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Specification:

  • Bearing Model: AXK110145
  • Bearing Washer Model: AS110145
  • Needle Roller Material: Chromium Steel (GCr15)
  • Cage Material: ST13 Steel
  • Bearing Washer Material: 65Mn Spring Steel
  • Bore Diameter (d): 110mm
  • Outside Diameter (D): 145mm
  • Bearing Thickness (T1): 4mm
  • Washer Thickness (T2): 1mm (Approx.)
Package Contents:
  • 2 x Bearings
  • 4 x Bearing Washers
