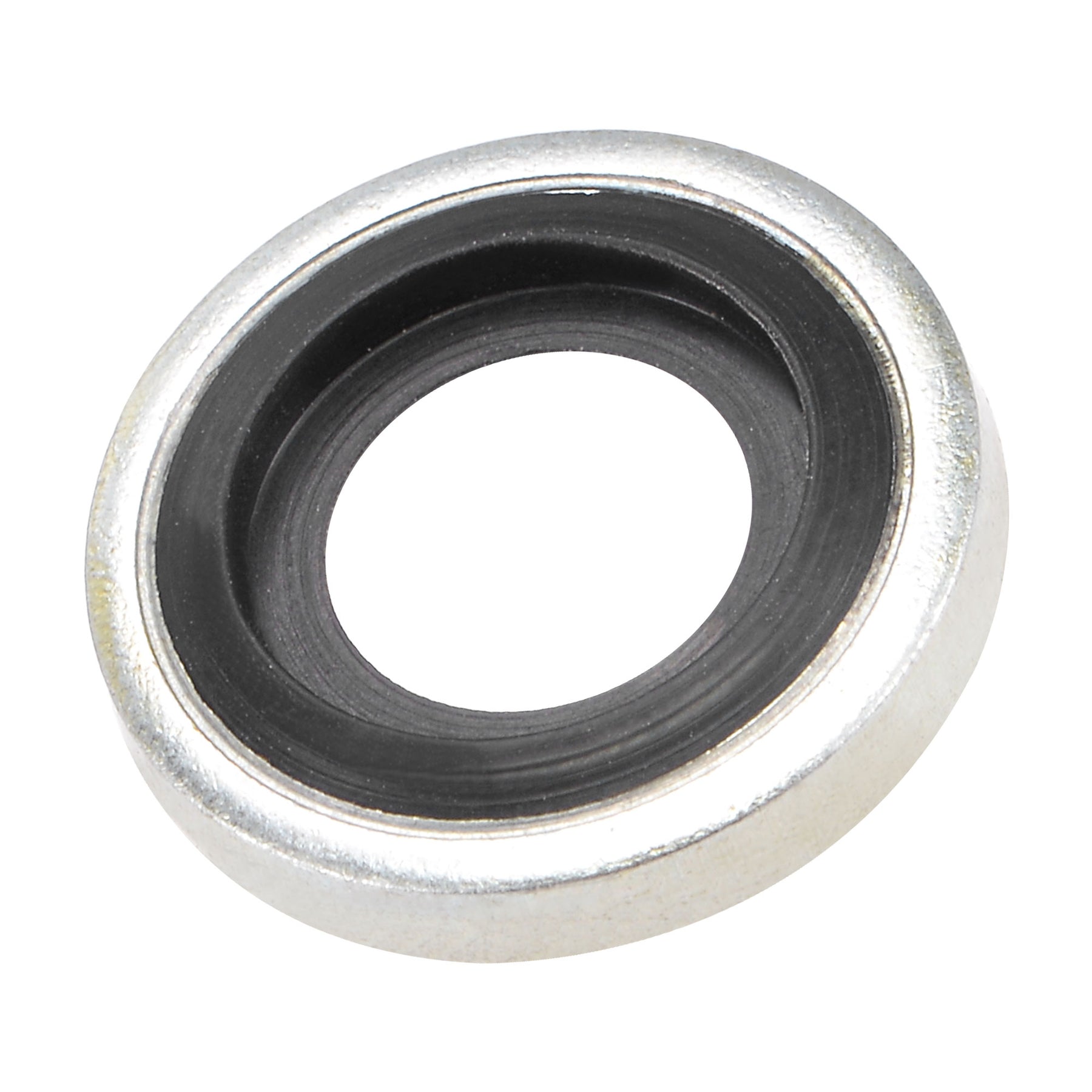

Harfington Bonded Sealing Washers M8 13.7x6.5x2.9mm Carbon Steel Nitrile Rubber Gasket, Pack of 10

Bonded Sealing Washers M8 13.7x6.5x2.9mm Carbon Steel Nitrile Rubber Gasket, Pack of 10

ID:
AU$11.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal

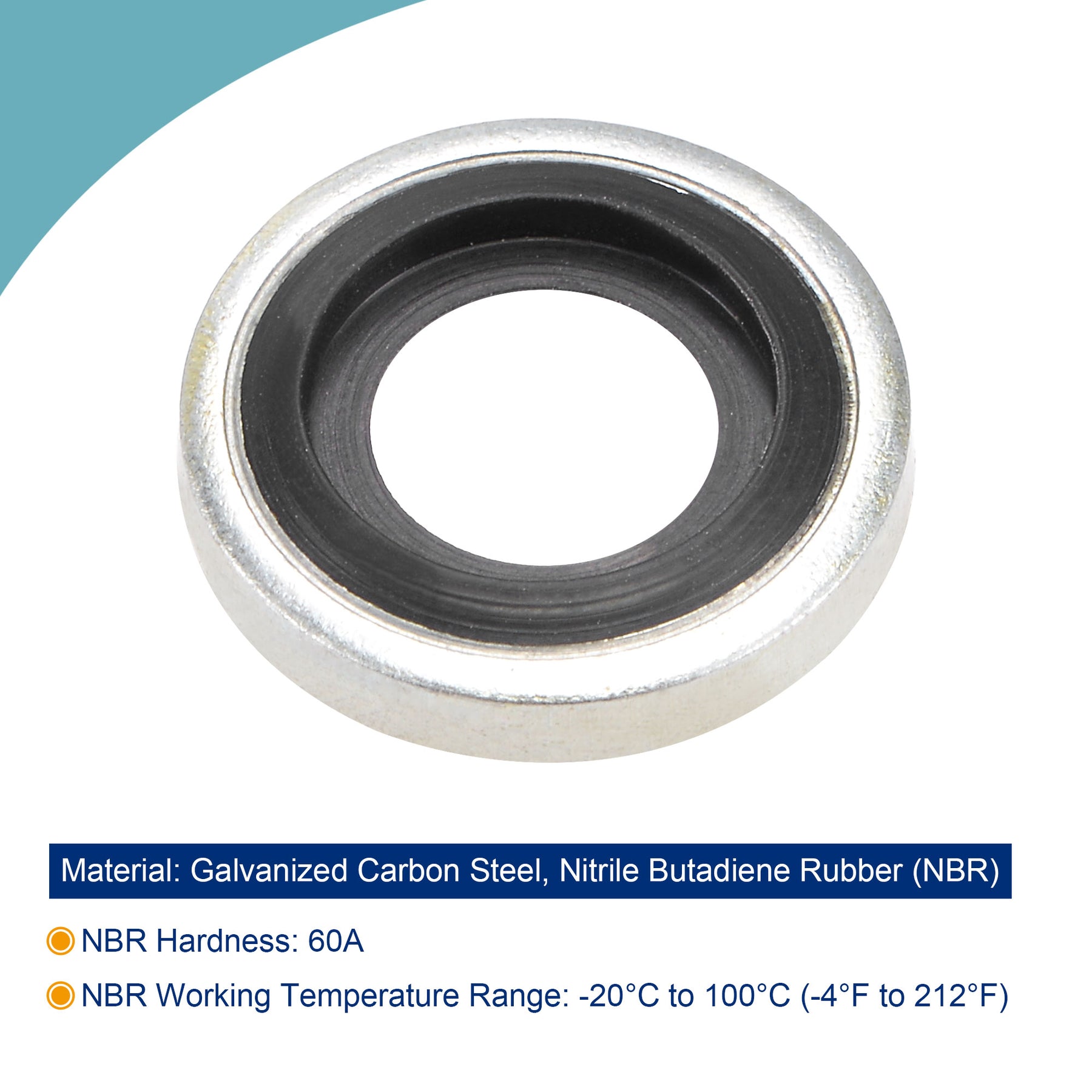

  • Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber (NBR): Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)

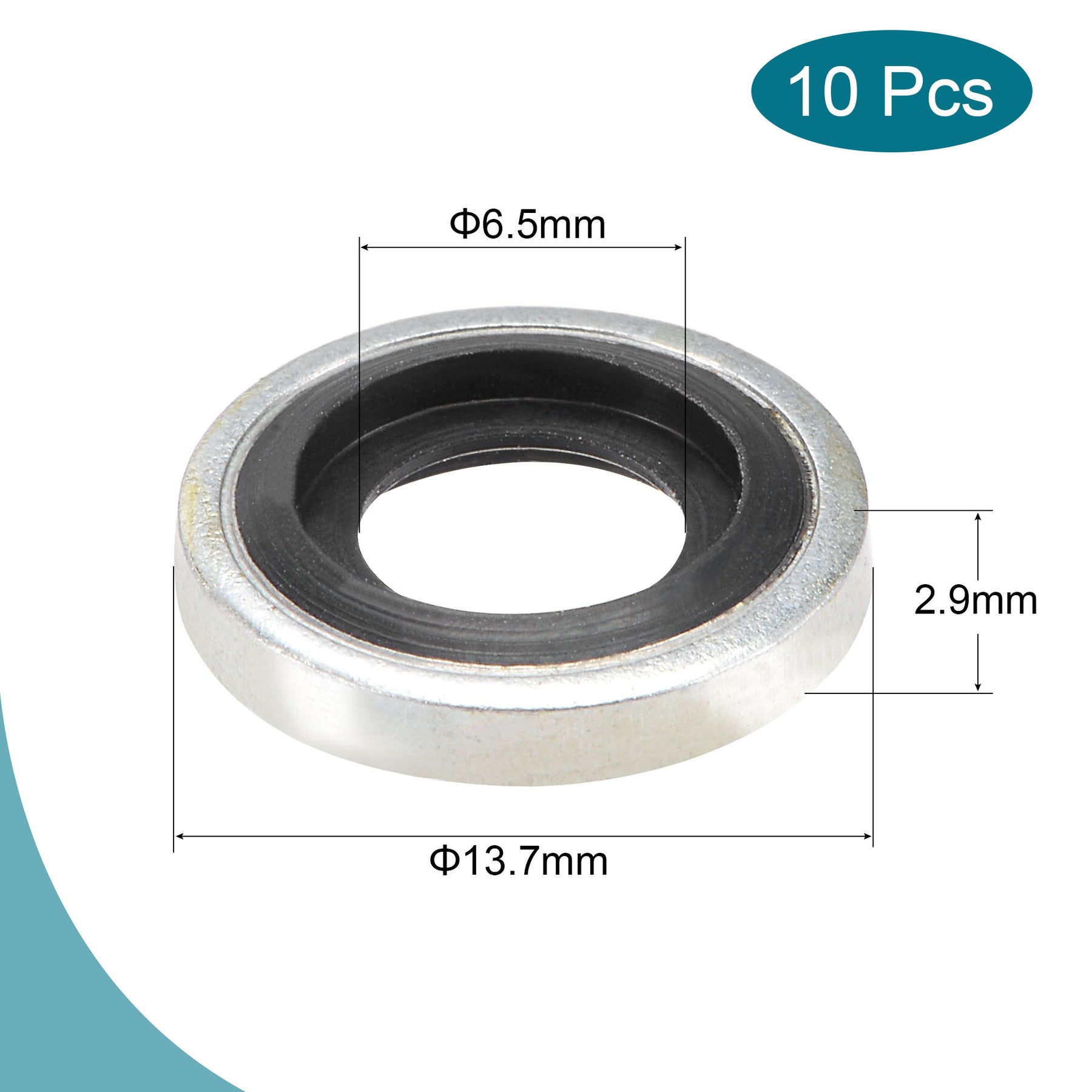

  • Fit for Size: M8; Outer Diameter: 13.7mm; Inner Diameter: 6.5mm; Thickness: 2.9mm
  • Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings

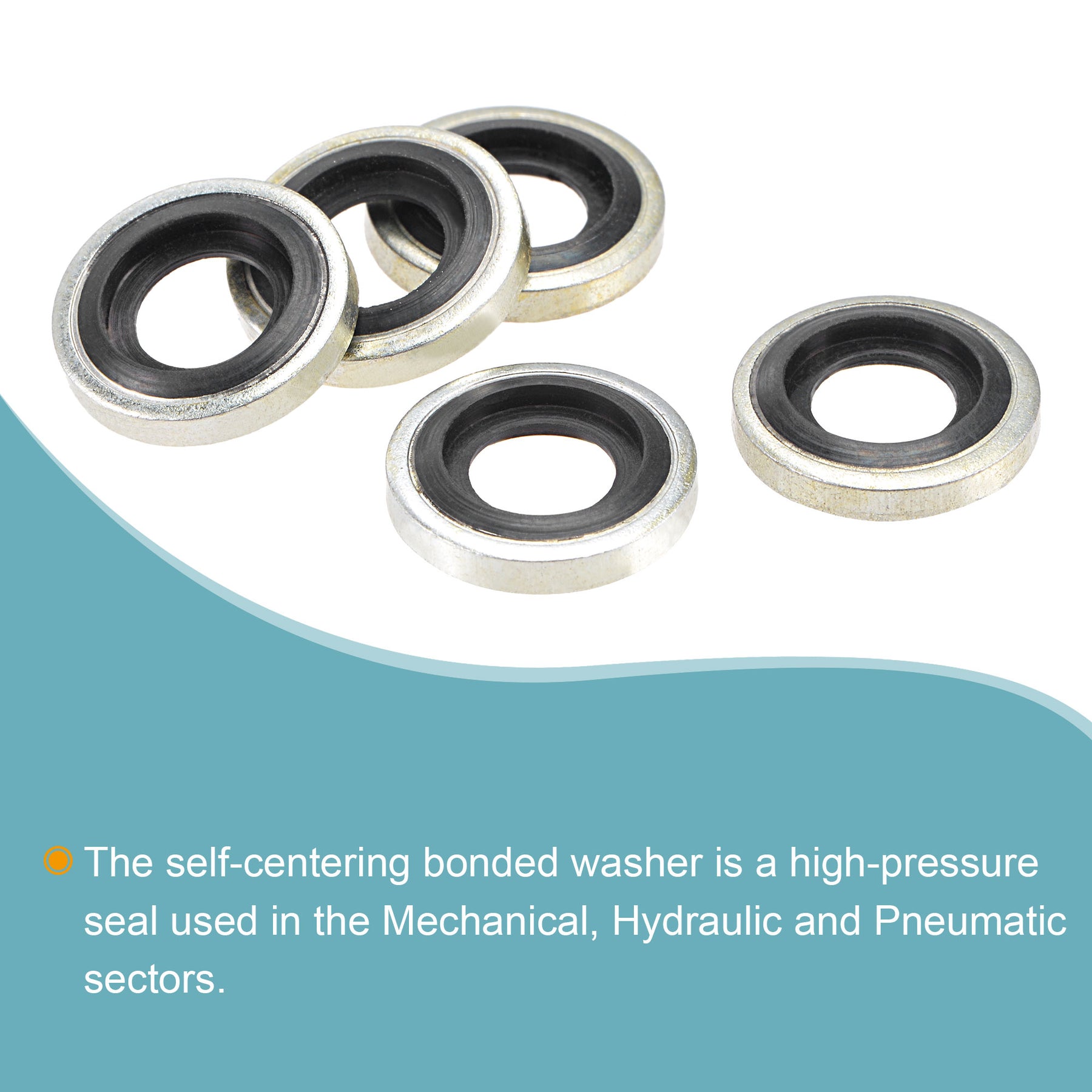

  • The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
  • In stock, ready to ship
Cart
Cart
About this item
  • The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal
  • Materials: Galvanized Carbon Steel; Nitrile Butadiene Rubber (NBR): Hardness: 60A; Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
  • Fit for Size: M8; Outer Diameter: 13.7mm; Inner Diameter: 6.5mm; Thickness: 2.9mm
  • Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings
  • The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
What will I get?
Color: Silver, Black
Material: Carbon Steel, Nitrile Butadiene Rubber (NBR)
Metal Surface Treatment: Galvanized
Fit for Size: M8
Outer Diameter: 13.7mm
Inner Diameter: 6.5mm
Thickness: 2.9mm
NBR Hardness: 60A
NBR Working Temperature Range: -20°C to 100°C (-4°F to 212°F)
Package Contents: 10 x Bonded Seals

What is this?

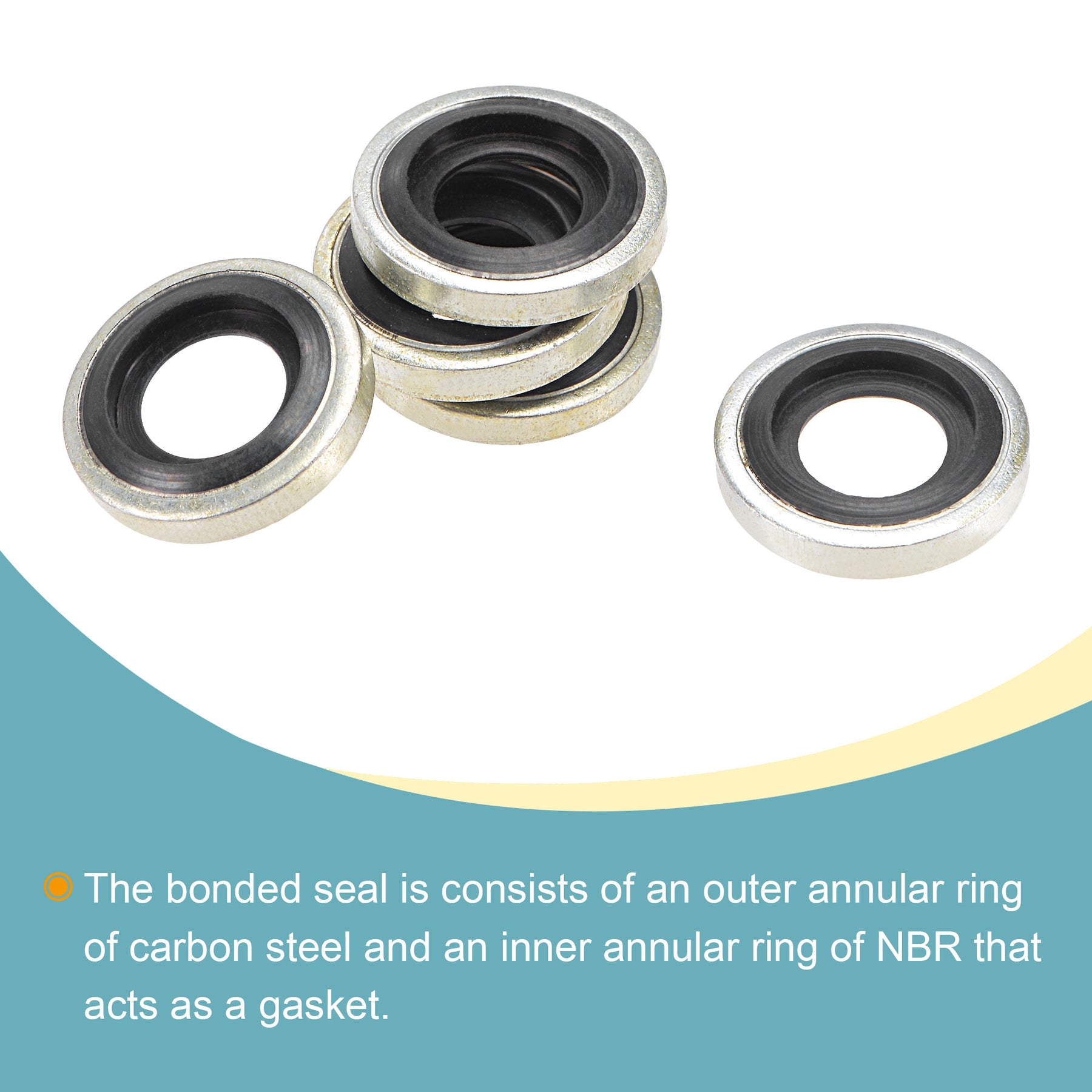

A bonded seal is a type of washer used to provide a seal around a screw or bolt. Consists of an outer annular ring of carbon steel and an inner annular ring of NBR that acts as a gasket.

Are there any advantages of the product?
The nitrile rubber is bonded by heat and pressure to the outer ring, which holds it in place. This structure increases resistance to bursting, increasing the pressure rating of the seal.
Because the bonded washer itself acts to retain the gasket material, there is no need for the parts to be sealed to be shaped to retain the gasket. This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.

How to use it?
The self-centering bonded washers are high-pressure seals that are used in the Mechanical, Hydraulic, and Pneumatic pipelines.
