Harfington CF6 Cam Fllower Bearing Stud Type Needle Roller KR16 Bearings M6x1mm

CF6 Cam Fllower Bearing Stud Type Needle Roller KR16 Bearings M6x1mm

ID:
AU$12.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • CF6(KR16). 16mm diameter and 28.2mm in length, the thread size is M6x1mm. Standard shape and size make the installation easier.
  • The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
  • High load capacity. 270kgf on Dynamic Load Rating (Cr), 170kgf Static Load Rating (Cor). The limited speed goes to 25000 rpm.
  • Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
  • Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.
  • In stock, ready to ship
Cart
Cart
About this item
  • CF6(KR16). 16mm diameter and 28.2mm in length, the thread size is M6x1mm. Standard shape and size make the installation easier.
  • The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
  • High load capacity. 270kgf on Dynamic Load Rating (Cr), 170kgf Static Load Rating (Cor). The limited speed goes to 25000 rpm.
  • Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
  • Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

CF6 Cam Fllower Needle Roller Bearing.

Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

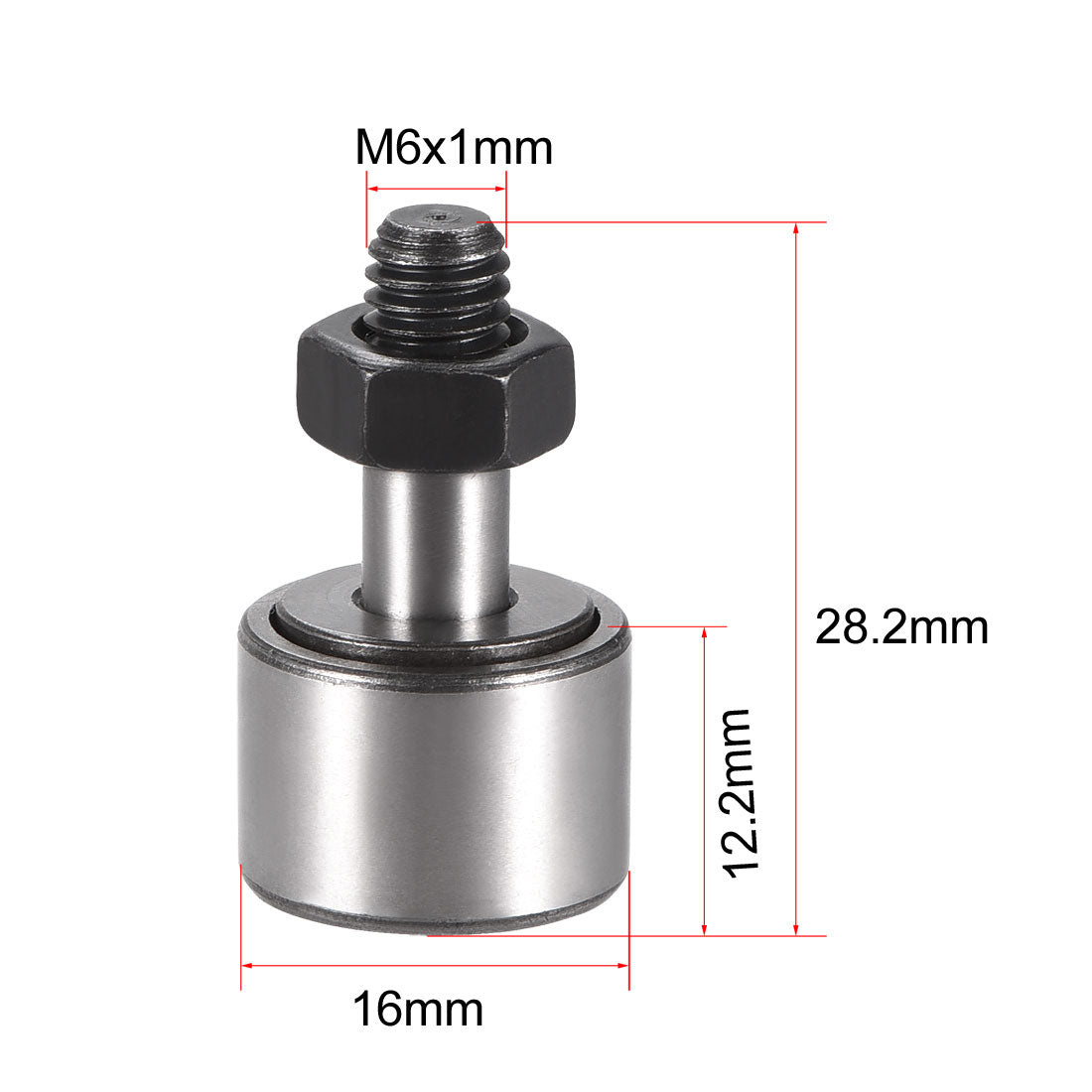

  • Model: CF6 or KR16
  • Outside Diameter: 16mm
  • Screw Thread Size: M6x1mm
  • Overall Length: 28.2mm
  • Bearing Thickgfess: 12.2mm
  • Dynamic Load Rating (Cr): 270kgf
  • Static Load Rating (Cor): 170kgf
  • Limited Speed: 25000 rpm
  • Bearing Material: GCr15 Steel
  • Cage Material: Mild Steel
  • Weight: 23g
  • Package Content: 1 pcs CF6 Cam Fllower Needle Roller Bearing
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$12.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

CF6 Cam Fllower Needle Roller Bearing.

Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

  • Model: CF6 or KR16
  • Outside Diameter: 16mm
  • Screw Thread Size: M6x1mm
  • Overall Length: 28.2mm
  • Bearing Thickgfess: 12.2mm
  • Dynamic Load Rating (Cr): 270kgf
  • Static Load Rating (Cor): 170kgf
  • Limited Speed: 25000 rpm
  • Bearing Material: GCr15 Steel
  • Cage Material: Mild Steel
  • Weight: 23g
  • Package Content: 1 pcs CF6 Cam Fllower Needle Roller Bearing
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
