Harfington 25mm Brazed Diamond Core Drill Bits with M10 Arbor Adapter for Tile Marble Stone

25mm Brazed Diamond Core Drill Bits with M10 Arbor Adapter for Tile Marble Stone

ID:
AU$19.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Core Drill Bits: Drilling Diameter: 25mm / 0.98"; Working Depth (Max .): 51mm / 2.01"; Female Thread Size: M10 x 1.5. Used on M10 angle grinders, easy to operate.

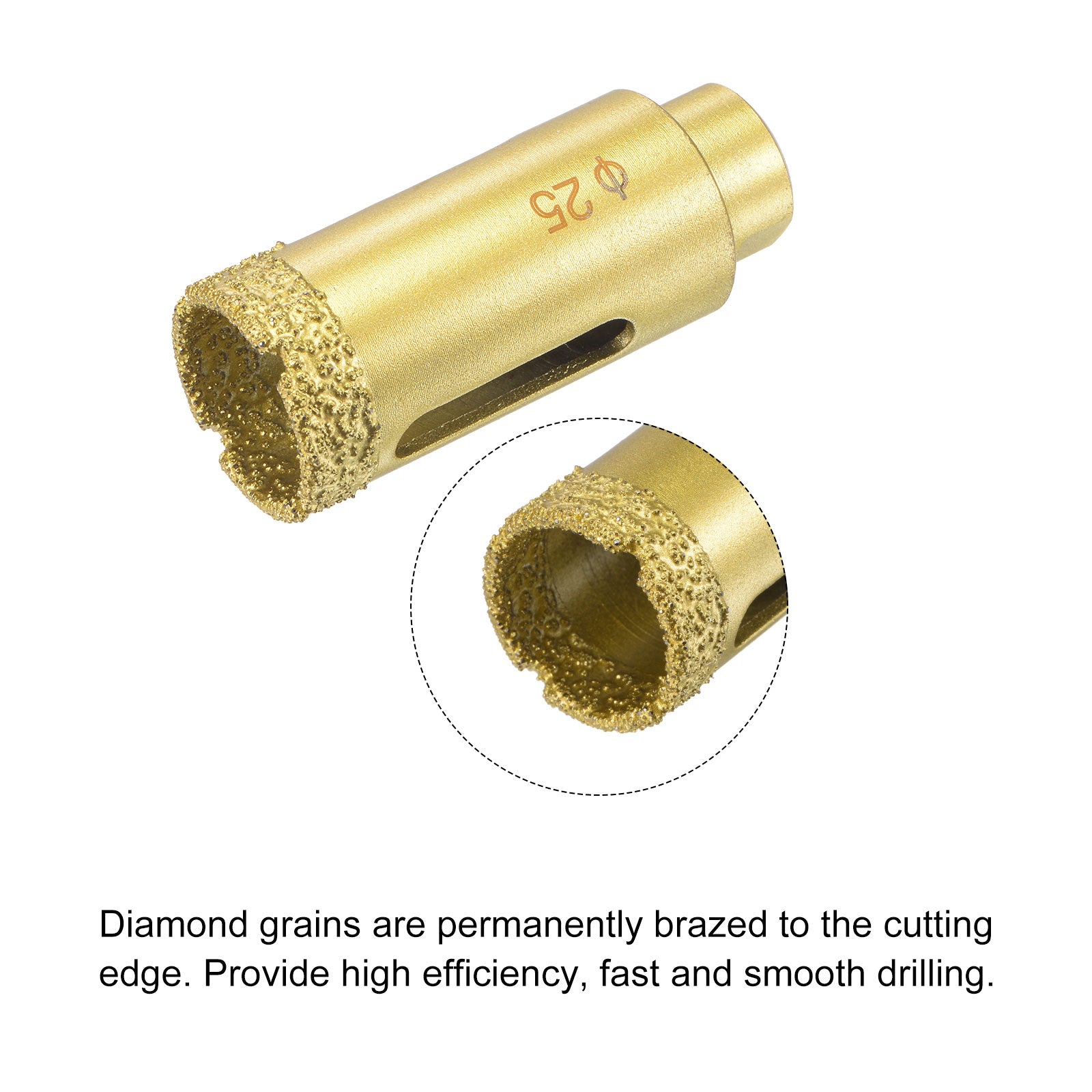

  • Brazed Diamond: Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, and also ensure longer working life.

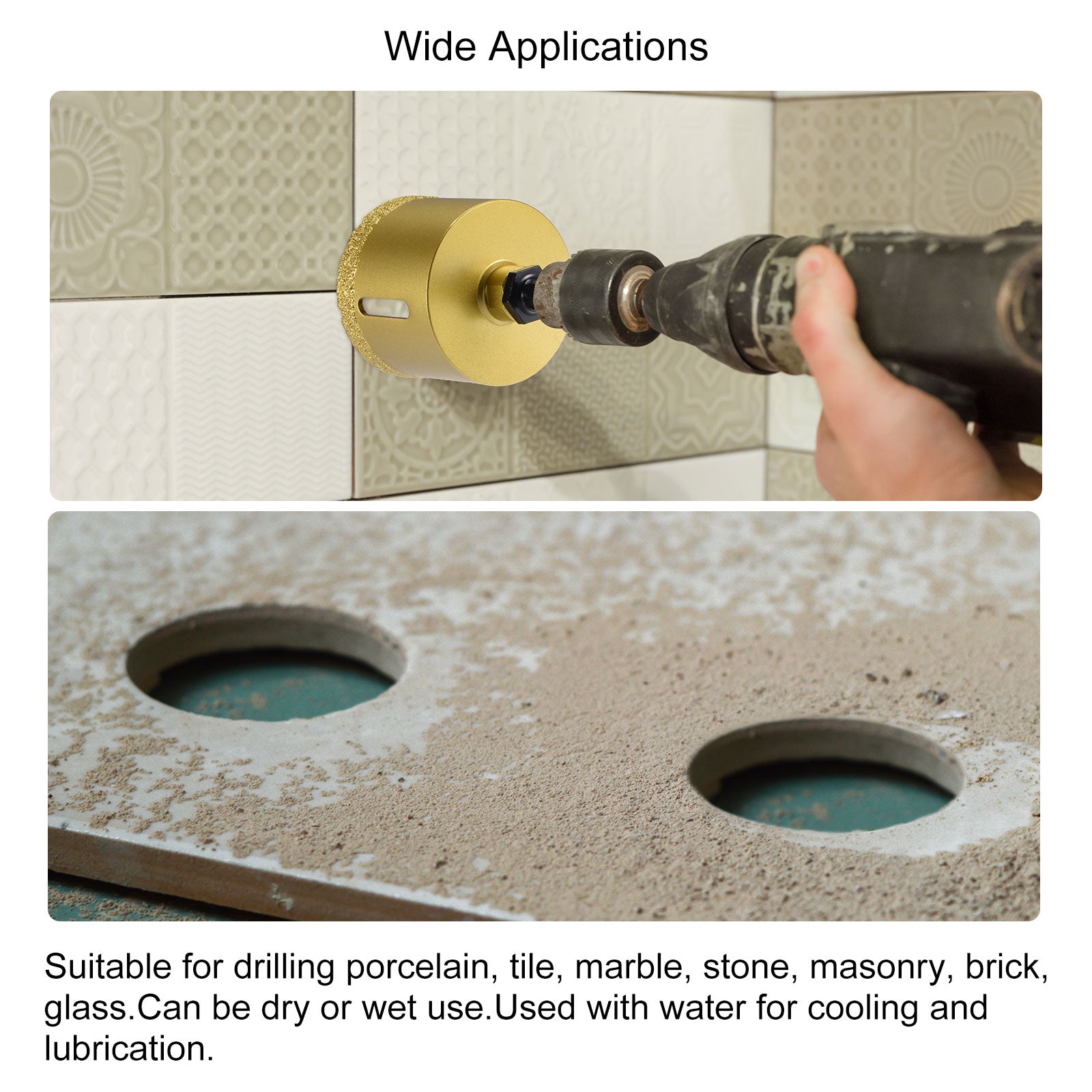

  • Wide Applications: Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  • Features: Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.

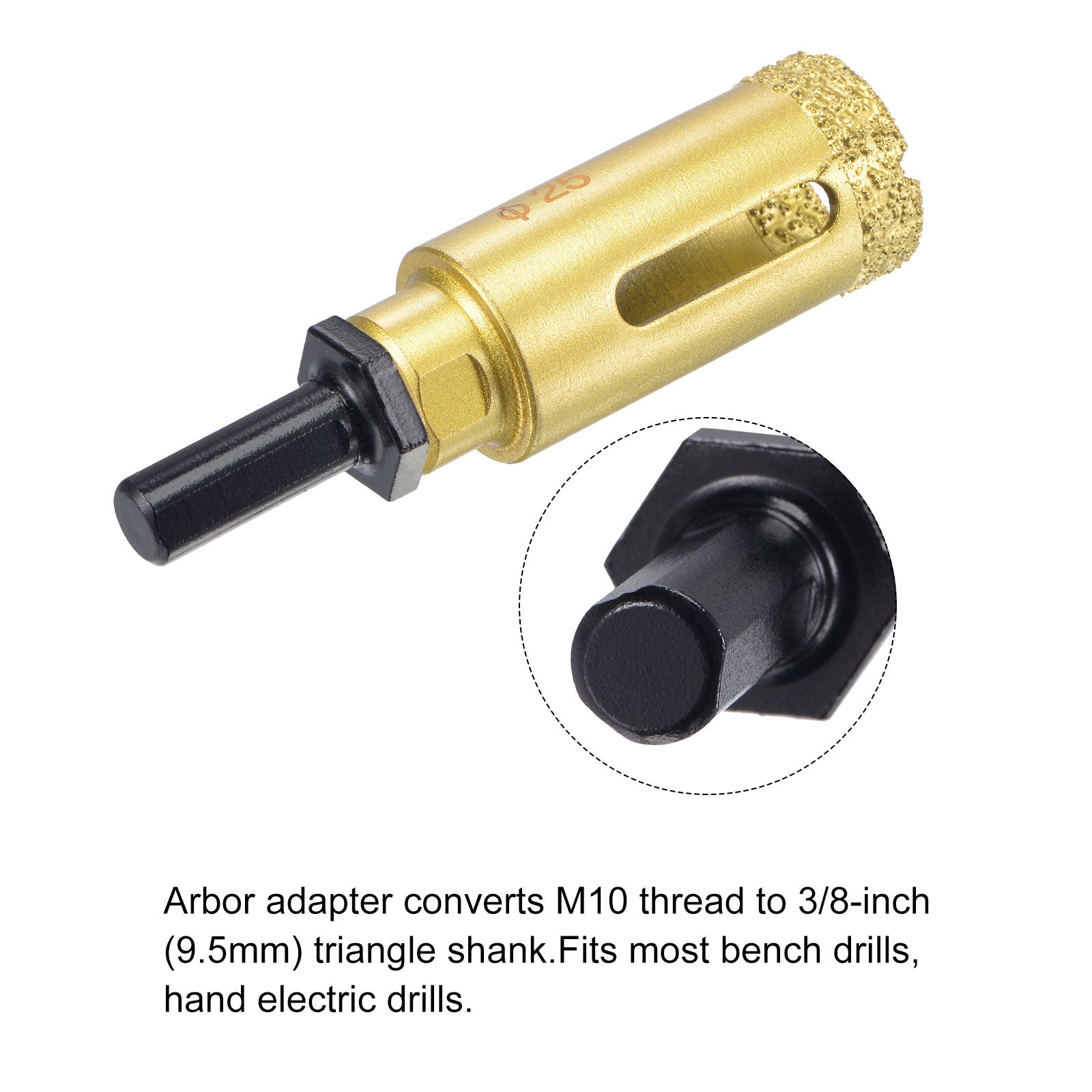

  • Arbor Adapter: The adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
  • In stock, ready to ship
Cart
Cart
About this item
  • Core Drill Bits: Drilling Diameter: 25mm / 0.98"; Working Depth (Max .): 51mm / 2.01"; Female Thread Size: M10 x 1.5. Used on M10 angle grinders, easy to operate.
  • Brazed Diamond: Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, and also ensure longer working life.
  • Wide Applications: Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  • Features: Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  • Arbor Adapter: The adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specifications:

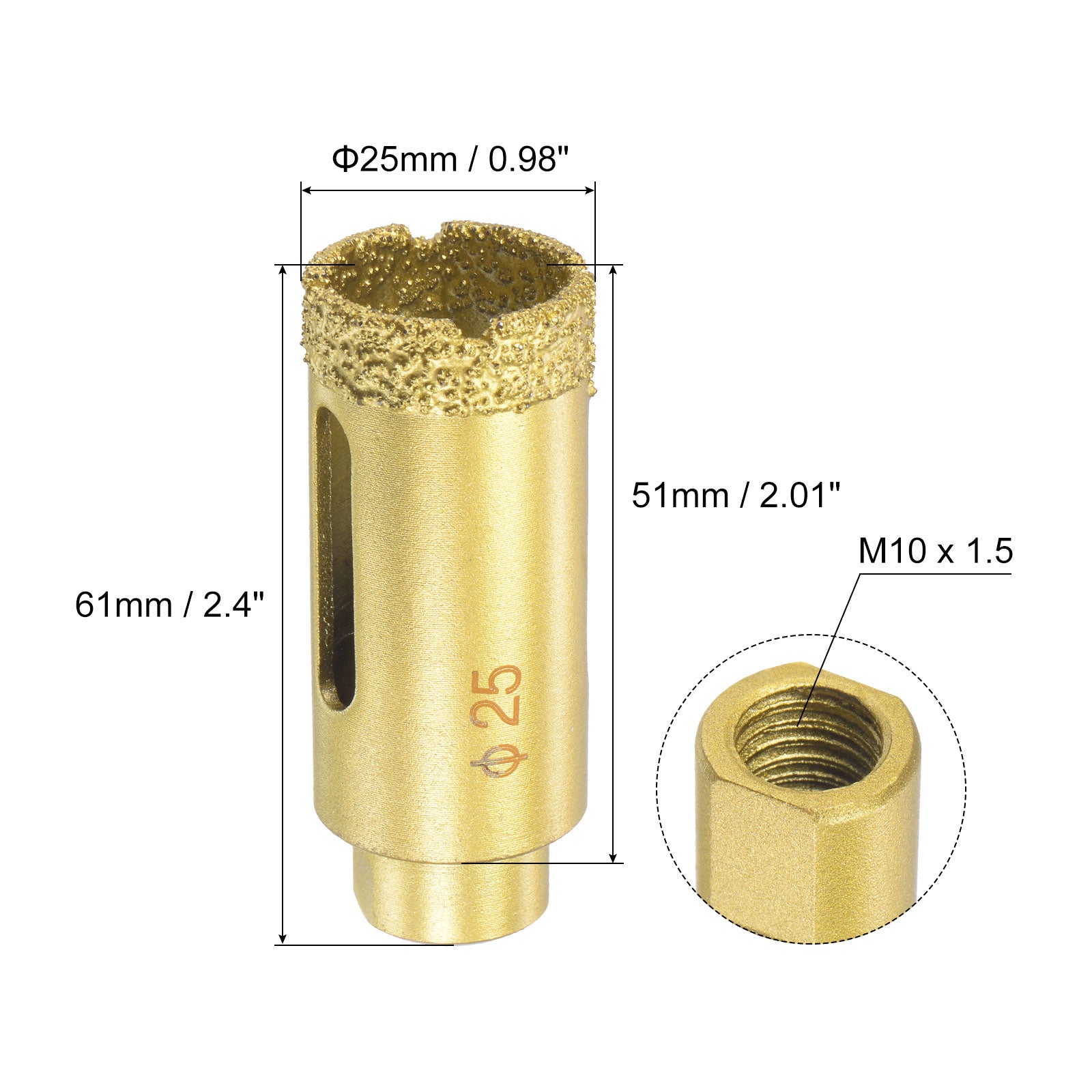

  • Drilling Diameter: 25mm / 0.98"
  • Working Depth (Max .): 51mm / 2.01"
  • Female Thread Size: M10 x 1.5
  • Total Length: 61mm / 2.4"
  • Material: Brazed Diamond, Carbon Steel

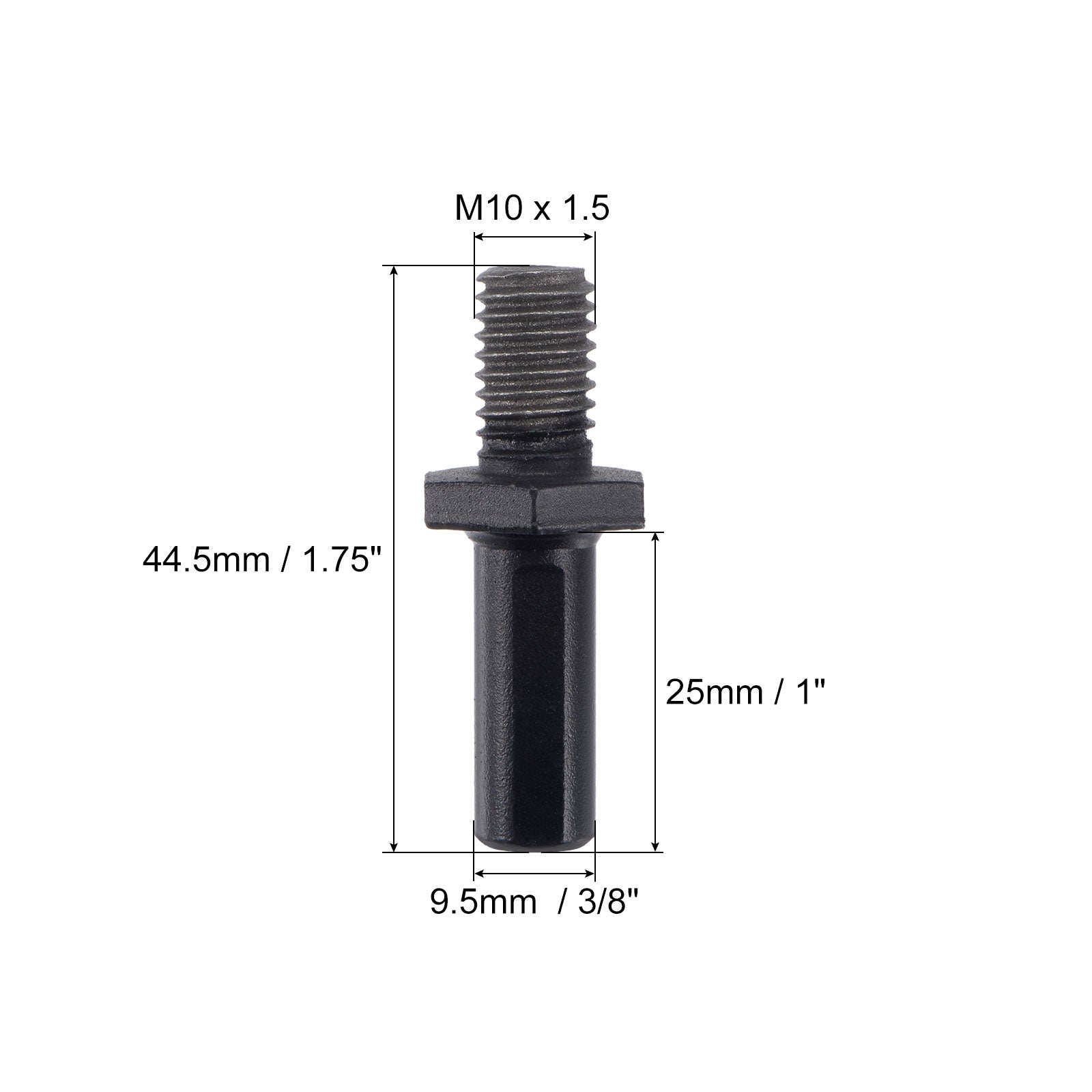

  • Adapter Male Thread Size: M10 x 1.5
  • Adapter Shank Size: 9.5mm x 25mm / 3/8" x 1" (D*L)
  • Total Length of Adapter: 44.5mm / 1.75"
  • Adapter Finish: Blackening

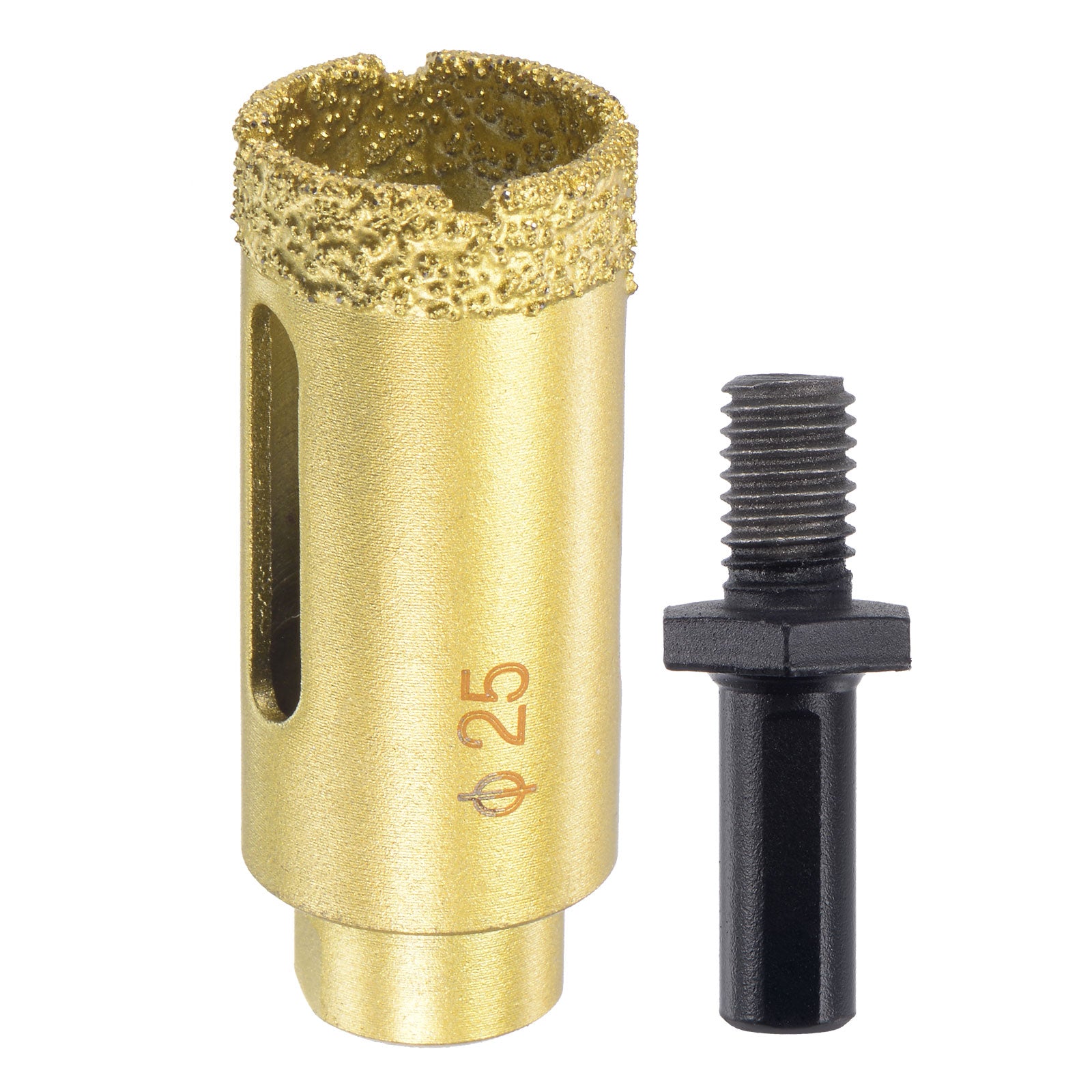

  • Package Content: 1pcs x Diamond Core Drill Bits, 1pcs x Arbor Adapter

Descriptions:
  1. Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, but also ensure longer working life. Used on M10 rotary tool, easy to operate.
  2. Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  3. Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  4. Arbor adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$19.00 Regular price
AU/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specifications:
  • Drilling Diameter: 25mm / 0.98"
  • Working Depth (Max .): 51mm / 2.01"
  • Female Thread Size: M10 x 1.5
  • Total Length: 61mm / 2.4"
  • Material: Brazed Diamond, Carbon Steel
  • Adapter Male Thread Size: M10 x 1.5
  • Adapter Shank Size: 9.5mm x 25mm / 3/8" x 1" (D*L)
  • Total Length of Adapter: 44.5mm / 1.75"
  • Adapter Finish: Blackening
  • Package Content: 1pcs x Diamond Core Drill Bits, 1pcs x Arbor Adapter

Descriptions:
  1. Diamond grains are permanently brazed to the cutting edge. Provide high efficiency, fast and smooth drilling, but also ensure longer working life. Used on M10 rotary tool, easy to operate.
  2. Suitable for drilling porcelain, tile, marble, stone, masonry, brick, glass. Can be dry or wet use. It is recommended to be used with water for cooling and lubrication to prolong the using life and increase the performance.
  3. Large clearance hole facilitates entrance of cooling water and escape of chips and other particles from drilling. Creates a precision and smooth cut, less chipping and minimizing breakage.
  4. Arbor adapter converts M10 thread to 3/8-inch (9.5mm) triangle shank. Fits most bench drills, hand electric drills. Tips: Reduced drill speeds, low drill pressure and increased use of water lubrication will extend drill bit life considerably.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
