Harfington Uxcell 330uF 16V Capacitor, Aluminum Electrolytic Capacitors 105C High Temp 100pcs

Uxcell 330uF 16V Capacitor, Aluminum Electrolytic Capacitors 105C High Temp 100pcs

ID:1095774
ID:1095774
Wholesale Price
35%OFF
Order 8,000+
  • 35%OFF
    Order 8,000+
  • 25%OFF
    Order 3,200+
  • 15%OFF
    Order 1,280+
  • 10%OFF
    Order 800+
  • 5%OFF
    Order 320+
About this item

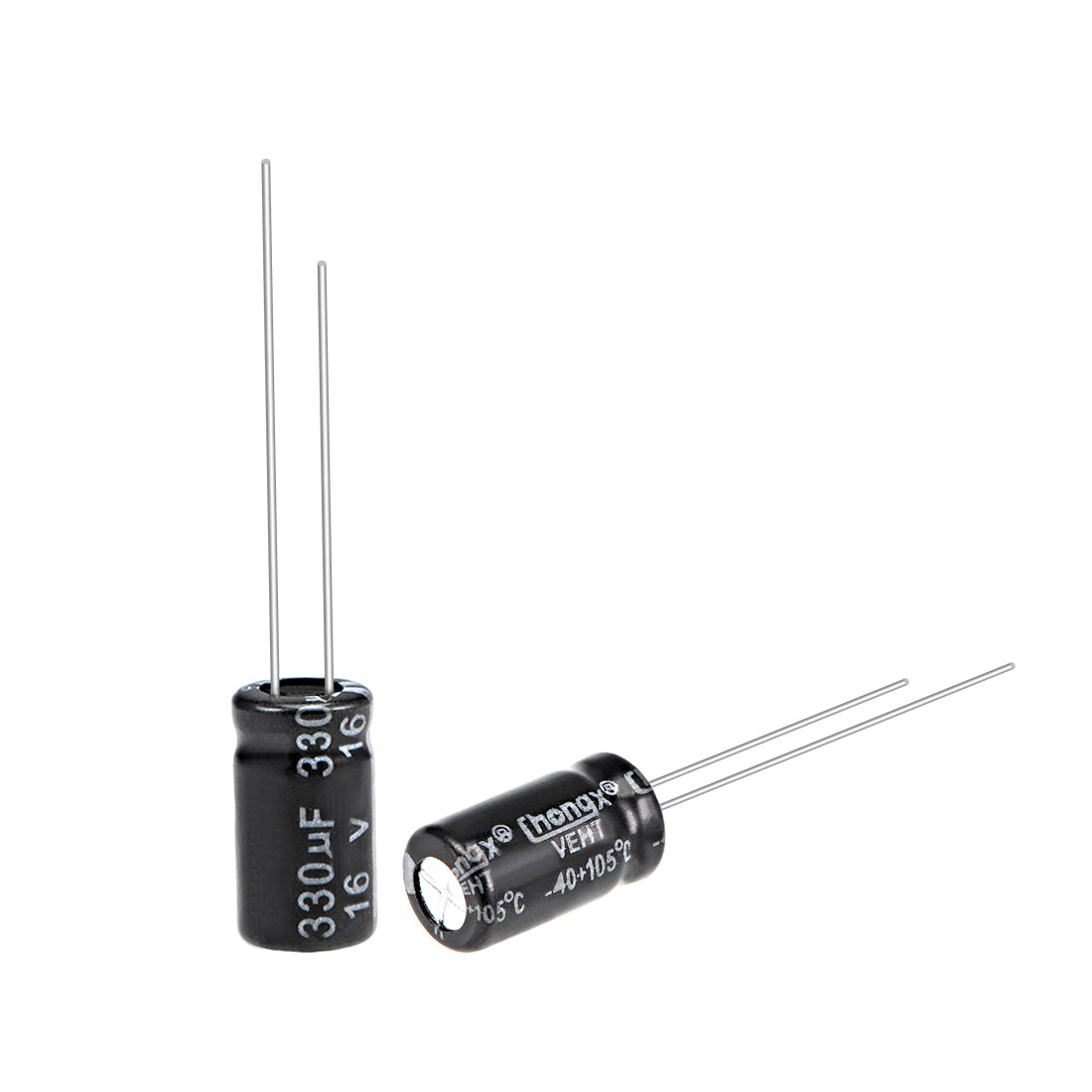

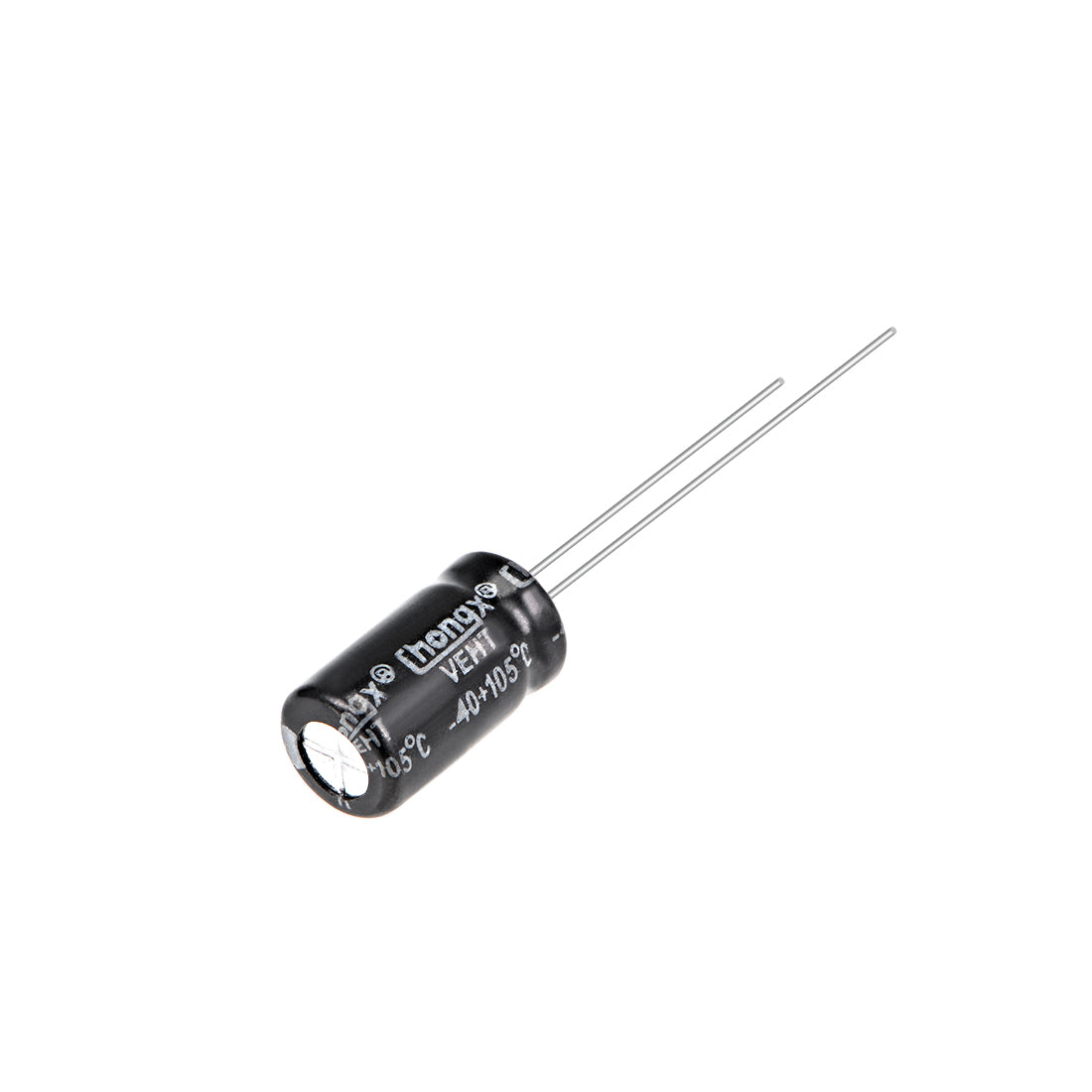

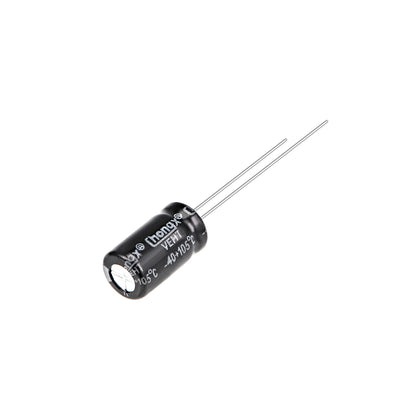

  • Aluminum electrolytic capacitor, 330uF, 16V, 100 pieces in package
  • High working temperature range from -40℃ to +105℃; Capacitance Tolerance: ±20%
  • Body Size: 6.3mm Diameter x 12mm Length; Fit with 2.5mm hole space
  • Widely used in TV, VCD, speaker, digital camera, dishwasher, washing machine, refrigerator, etc.
  • Pleast take all its characteristics (required life, temperature, ripple current and physical size) into consideration before your purchasing
About this item
  • Aluminum electrolytic capacitor, 330uF, 16V, 100 pieces in package
  • High working temperature range from -40℃ to +105℃; Capacitance Tolerance: ±20%
  • Body Size: 6.3mm Diameter x 12mm Length; Fit with 2.5mm hole space
  • Widely used in TV, VCD, speaker, digital camera, dishwasher, washing machine, refrigerator, etc.
  • Pleast take all its characteristics (required life, temperature, ripple current and physical size) into consideration before your purchasing
Specification

Specification

SKU
a19101200ux0596
Material
Aluminum
Body Size(D*L)
6.3*12mm
Temperature Range
-40℃ to 105℃
Capacitance
330µF
Brand
Uxcell
Pkg.Qty
100
Tolerance
±20%
Voltage
16V
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specification:
Capacitance: 330uF
Rated Voltage: 16V
Capacitance Tolerance: +/-20% (at 120Hz, 20 )
Lead Type: Radial
Category Temperature Range: -40 to +105 (6.3~100V)
Life Span: 2000-3000h

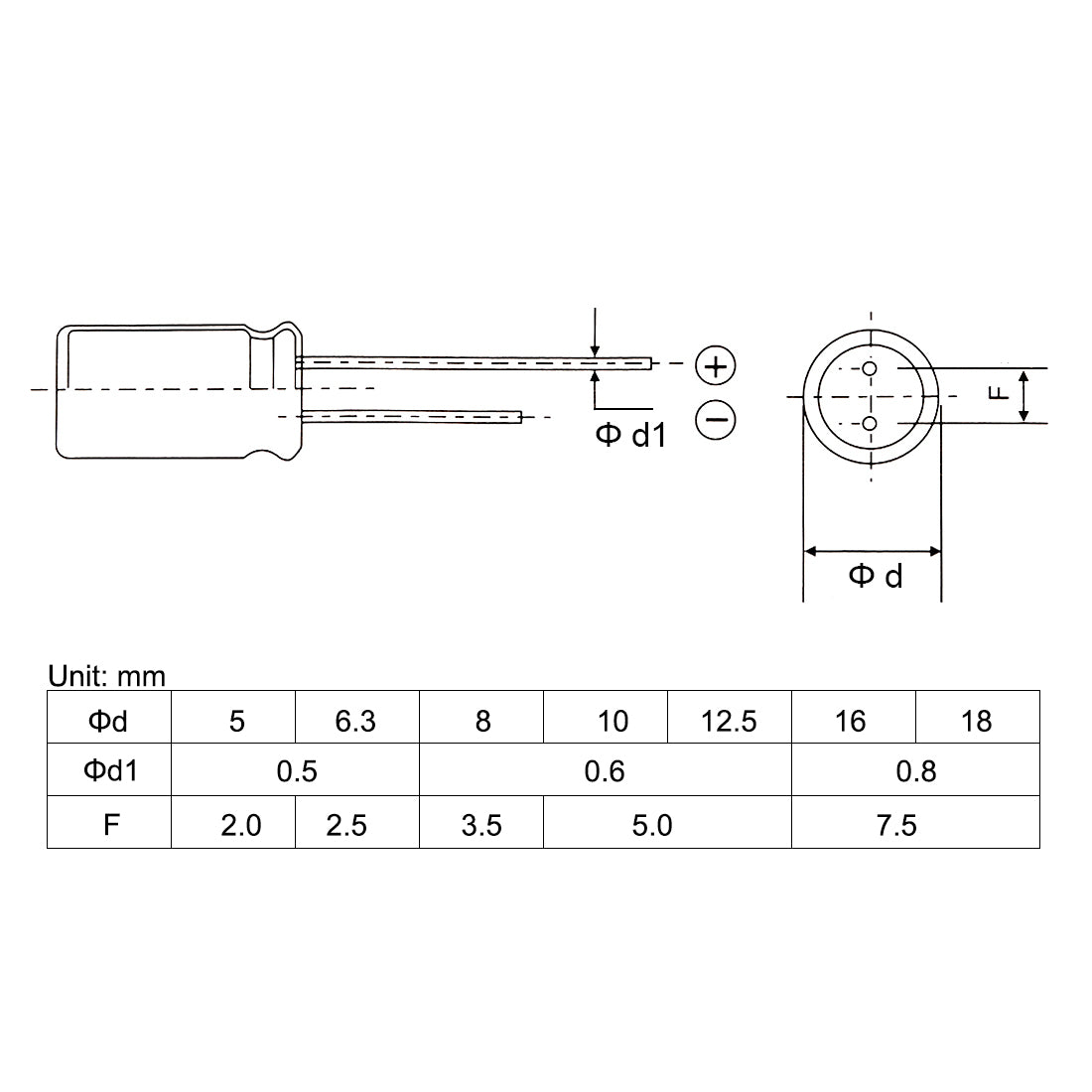

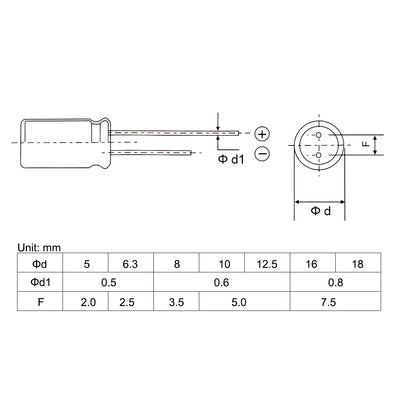

Body Size: 6.3 x 12mm
Lead Length: 20mm, 25mm
Lead Space: 2.5mm
Lead Diameter: 0.5mm
Package Content: 100 x Electrolytic Capacitors

About Our Item:
-Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications and consumer electronics applications.
-These capacitors offer very long life in applications, with rated temperatures up to 105 for general-purpose applications.

-For use in power supplies and computer motherboards.

Pay attention to the following cautions:
DO NOT move the capacitor after soldering to PC board.
DO NOT pick up the PC board by holding the soldered capacitor.
DO NOT insert capacitor on the PC board with a hole space different to specified lead space.
Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.

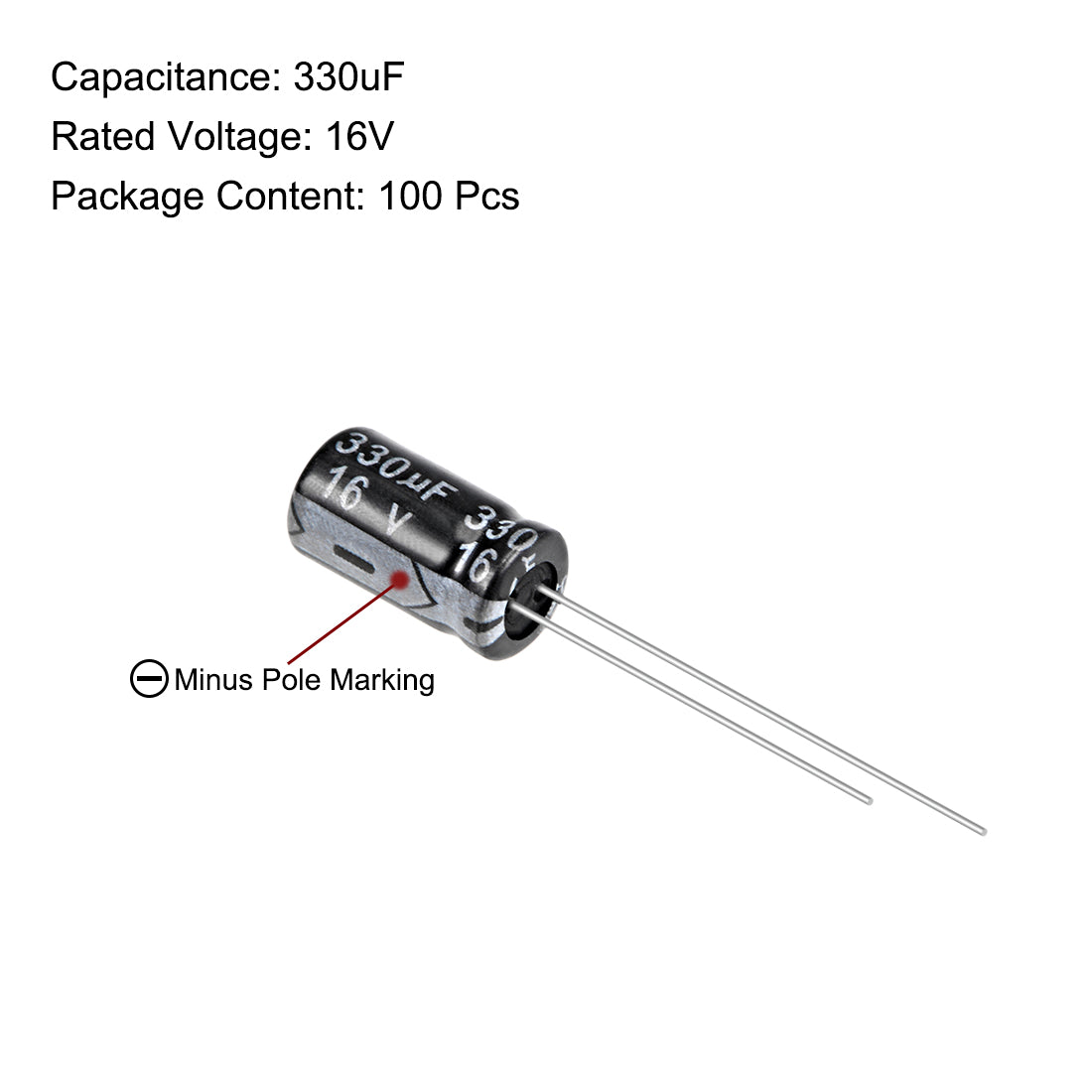

Long lead is positive end and the shorter one is the negative end.

How to select the proper capacitor for your design?
Step 1: Determine the capacitance required by the design.
Step 2: Define the expected ambient operating temperature.
Step 3: Define the DC operating voltage to be applied to the capacitor.
Step 4: Bound the space available for the capacitor (if available space is a concern).
AU$14.00 AU$0.14/eachRegular price
AU/
Wholesale Price
35%OFF
Order 8,000+
  • 35%OFF
    Order 8,000+
  • 25%OFF
    Order 3,200+
  • 15%OFF
    Order 1,280+
  • 10%OFF
    Order 800+
  • 5%OFF
    Order 320+
  • Ship from the US
  • Low stock, 2 items left, dispatch in 24 hours.
Cart
Cart
Free Shipping over AU$30 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Description

Description

Specification:
Capacitance: 330uF
Rated Voltage: 16V
Capacitance Tolerance: +/-20% (at 120Hz, 20 )
Lead Type: Radial
Category Temperature Range: -40 to +105 (6.3~100V)
Life Span: 2000-3000h
Body Size: 6.3 x 12mm
Lead Length: 20mm, 25mm
Lead Space: 2.5mm
Lead Diameter: 0.5mm
Package Content: 100 x Electrolytic Capacitors

About Our Item:
-Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and alternative energy, industrial, telecommunications and consumer electronics applications.
-These capacitors offer very long life in applications, with rated temperatures up to 105 for general-purpose applications.

-For use in power supplies and computer motherboards.

Pay attention to the following cautions:
DO NOT move the capacitor after soldering to PC board.
DO NOT pick up the PC board by holding the soldered capacitor.
DO NOT insert capacitor on the PC board with a hole space different to specified lead space.
Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.
Long lead is positive end and the shorter one is the negative end.

How to select the proper capacitor for your design?
Step 1: Determine the capacitance required by the design.
Step 2: Define the expected ambient operating temperature.
Step 3: Define the DC operating voltage to be applied to the capacitor.
Step 4: Bound the space available for the capacitor (if available space is a concern).
