Harfington Push Button Switch Station Momentary NO Green, 380V 10(6)A

Push Button Switch Station Momentary NO Green, 380V 10(6)A

ID:
AU$17.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Operation Type: Momentary; Terminals Quantity: 2;Ui: 380V; Ith: 10(6)A Contact Type: Green Push Button: 1NO
  • Screw Hole Dia: 4mm / 0.16"; Button Diameter: 25mm / 0.98"
  • Total Size (Approx.): 68 x 68 x 61mm / 2.68" x 2.68" x 2.4" (L*W*H); Package Content: 1 x Push Button Switch Station;
  • Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
  • The push button switch station have one switch, a 1 NO momentary Green push button switch.
  • In stock, ready to ship
Cart
Cart
About this item
  • Operation Type: Momentary; Terminals Quantity: 2;Ui: 380V; Ith: 10(6)A Contact Type: Green Push Button: 1NO
  • Screw Hole Dia: 4mm / 0.16"; Button Diameter: 25mm / 0.98"
  • Total Size (Approx.): 68 x 68 x 61mm / 2.68" x 2.68" x 2.4" (L*W*H); Package Content: 1 x Push Button Switch Station;
  • Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
  • The push button switch station have one switch, a 1 NO momentary Green push button switch.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Specification:
Material: PC
Action Type: Momentary
Contact Type:
Green Push Button: 1 NO
Ith: 10(6)A; Ui: 380V

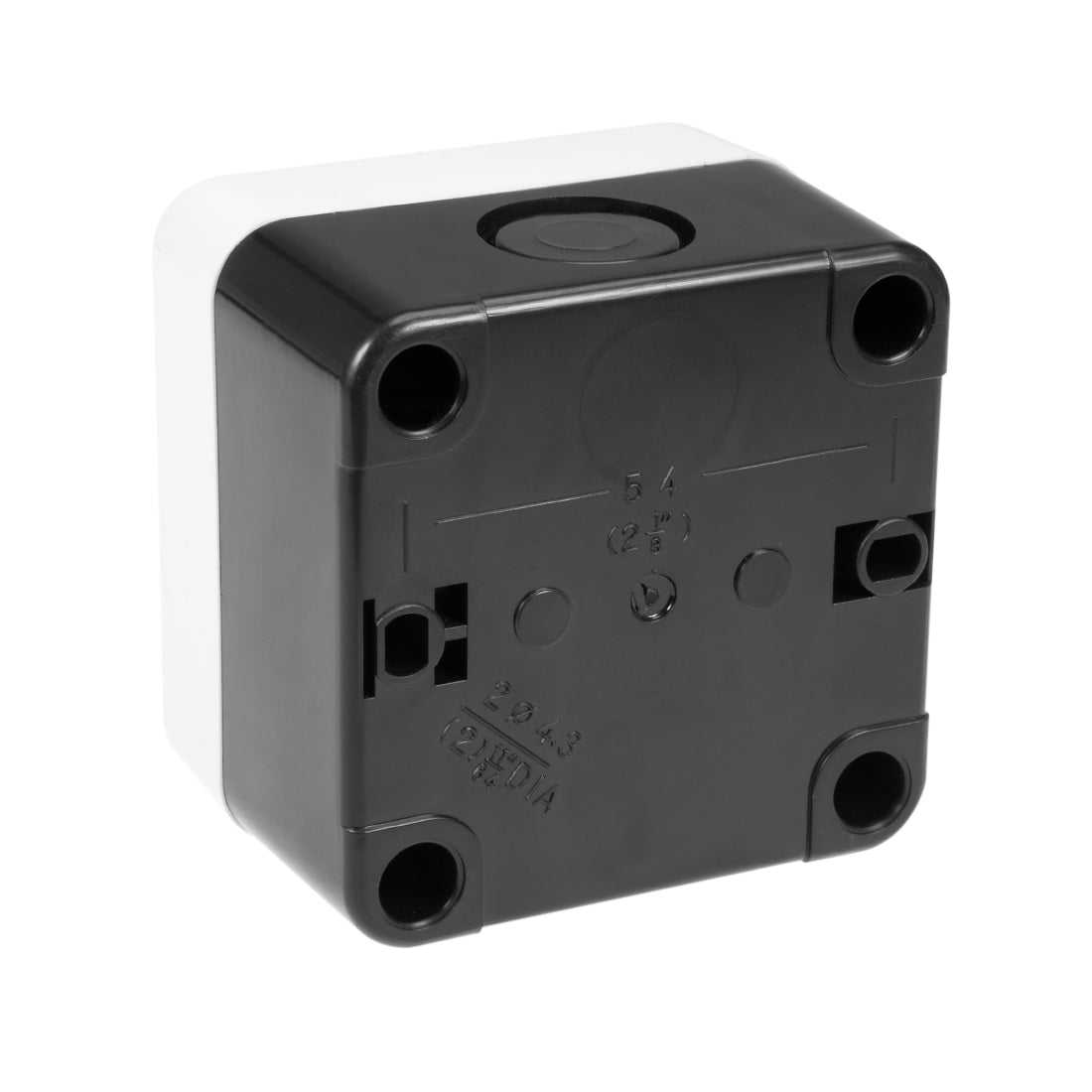

Screw Hole Dia: 4mm / 0.16inch
Button Diameter: 25mm / 0.98inch
Hole Distance(Center to Center): 54mm / 2.13-inch

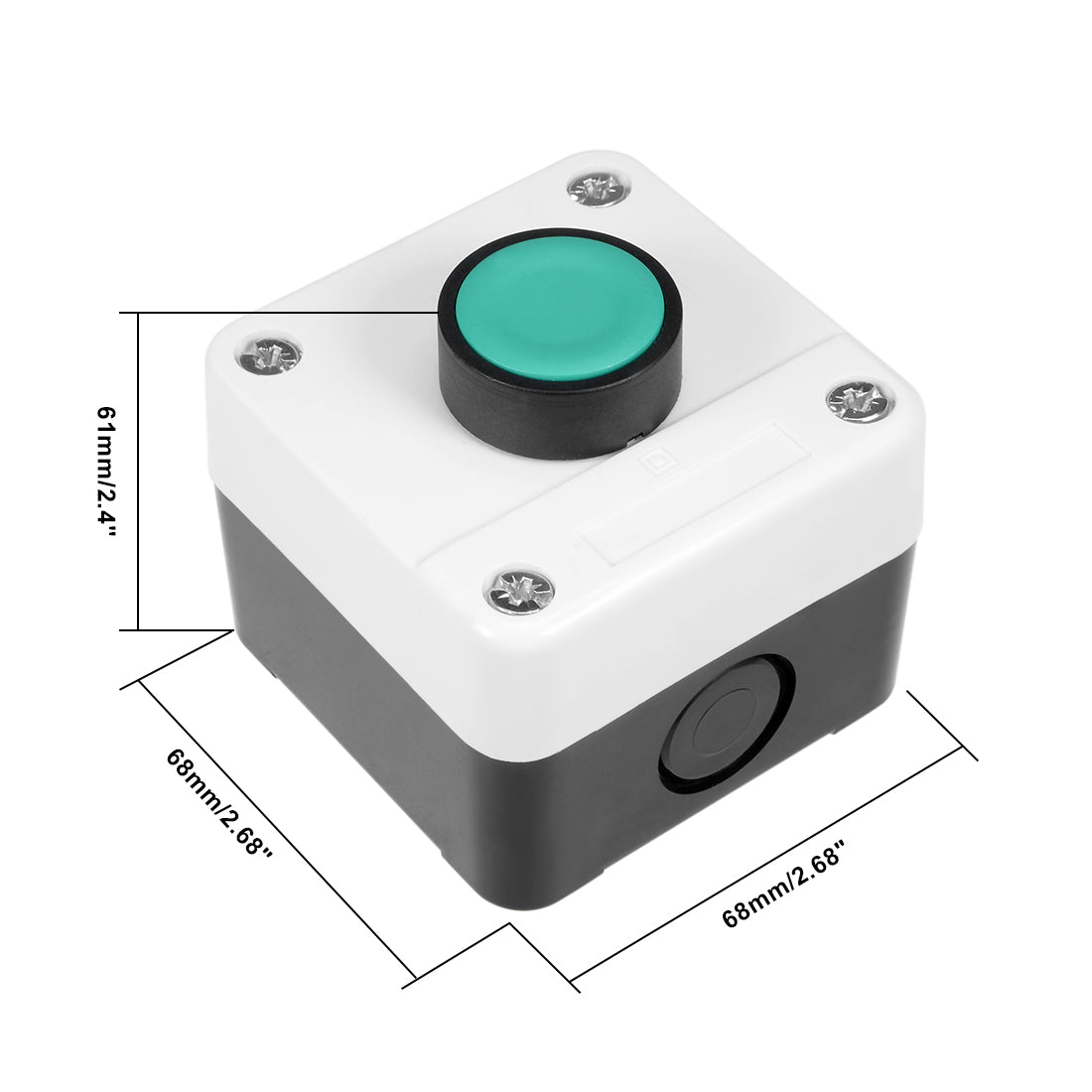

Total Size (Approx.): 68 x 68 x 61m / 2.68-inch x 2.68-inch  x 2.40inch (L*W*T)
Package Content: 1 x Push Button Switch Station

Description:

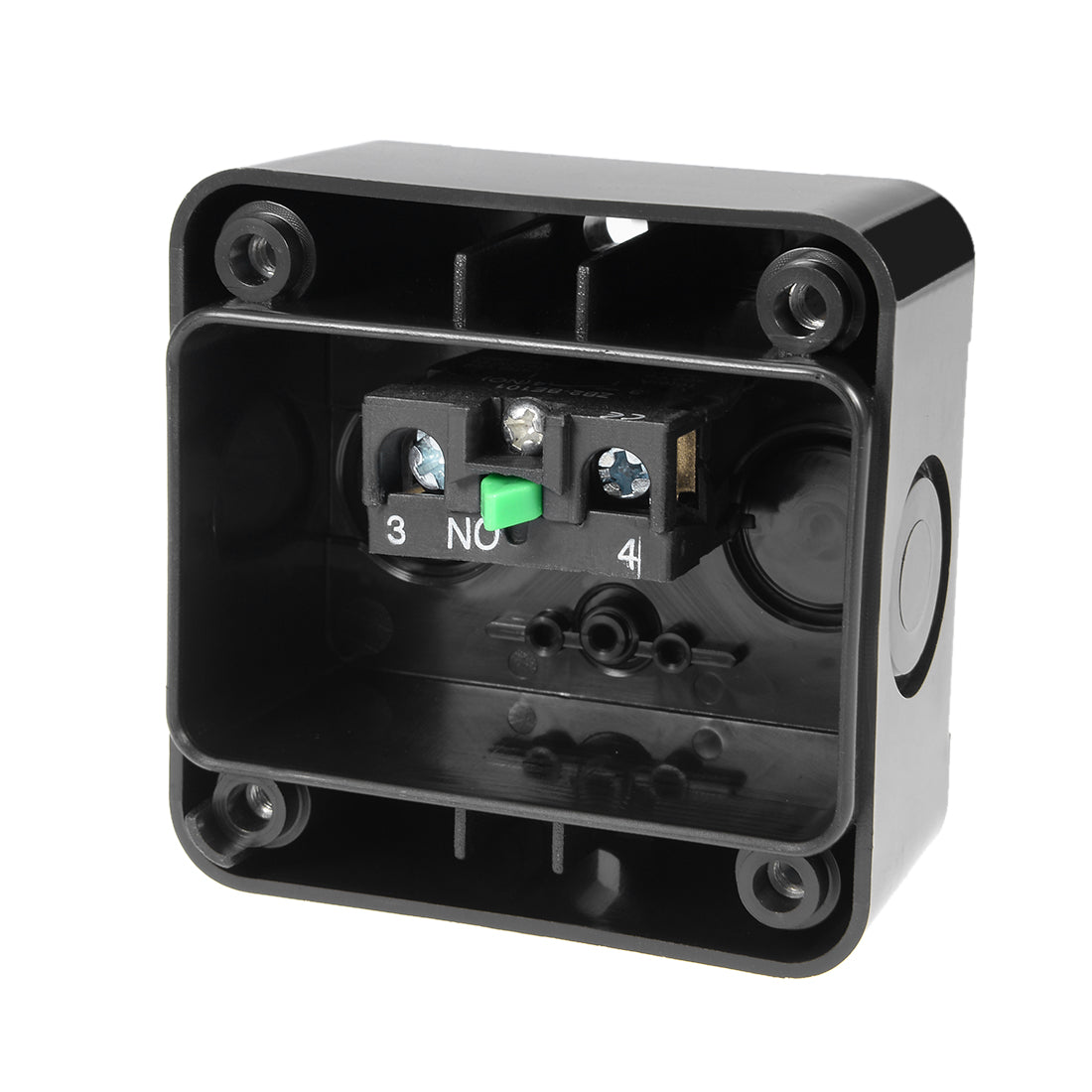

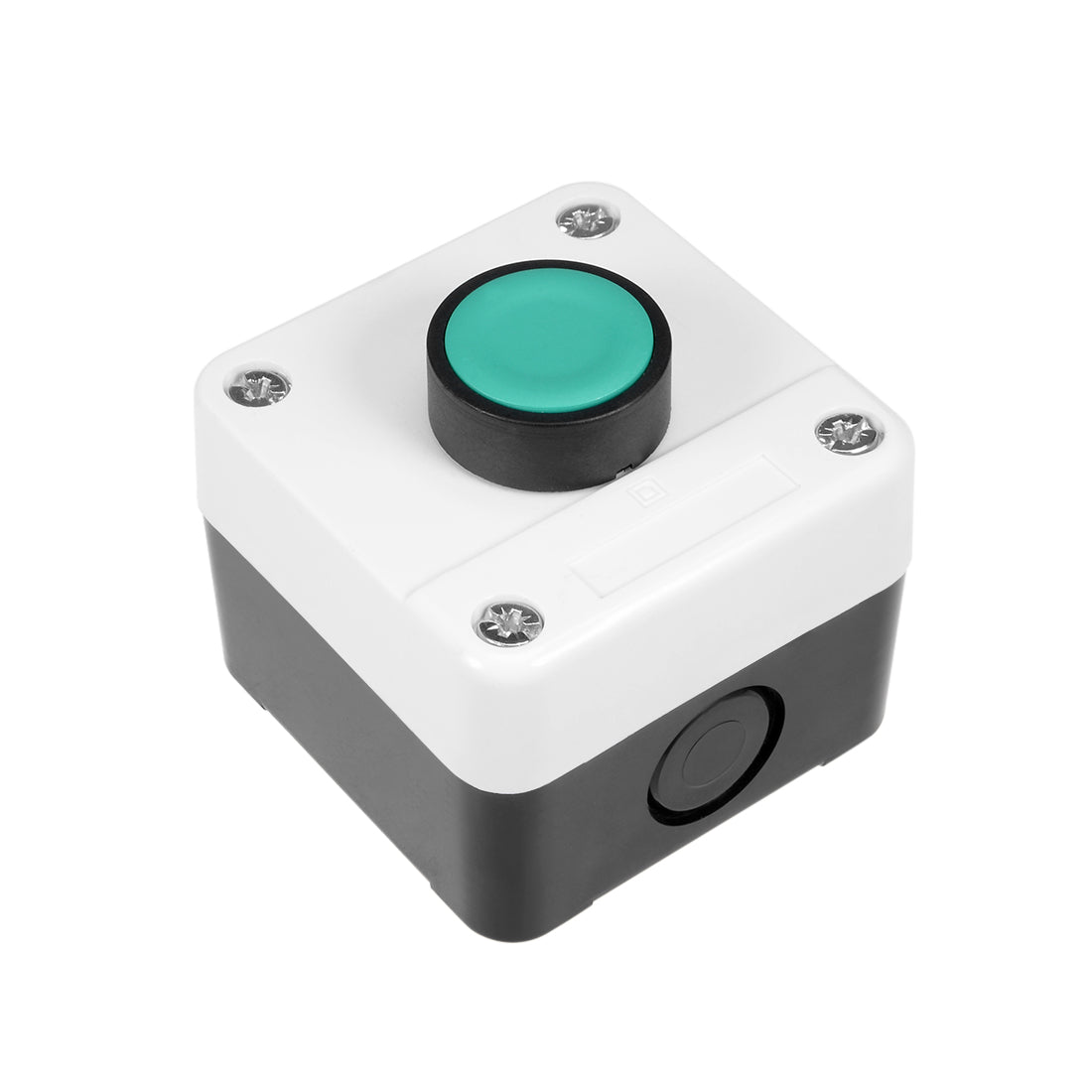

The push button switch station have one switch, a 1 NO momentary Green push button switch.
Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
