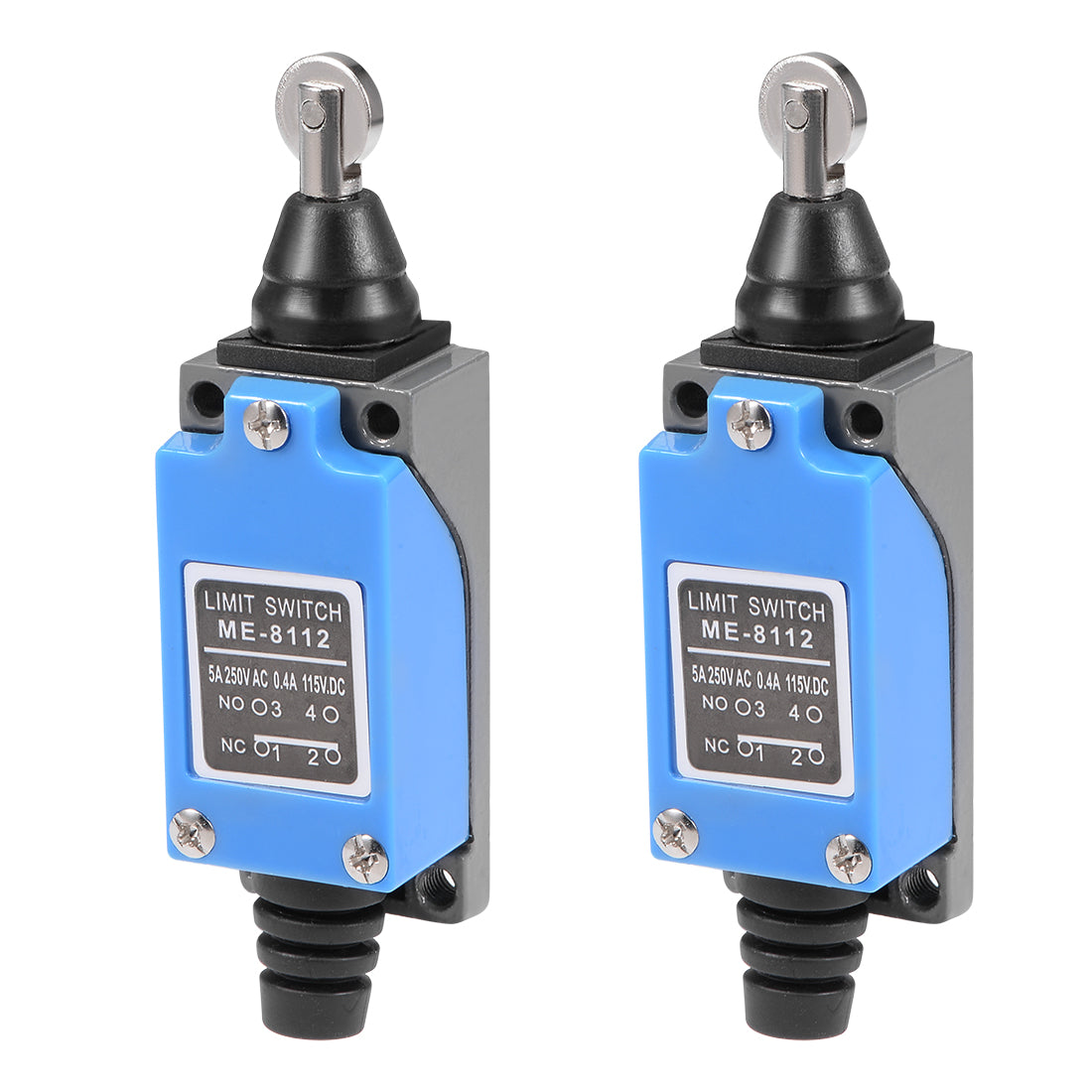

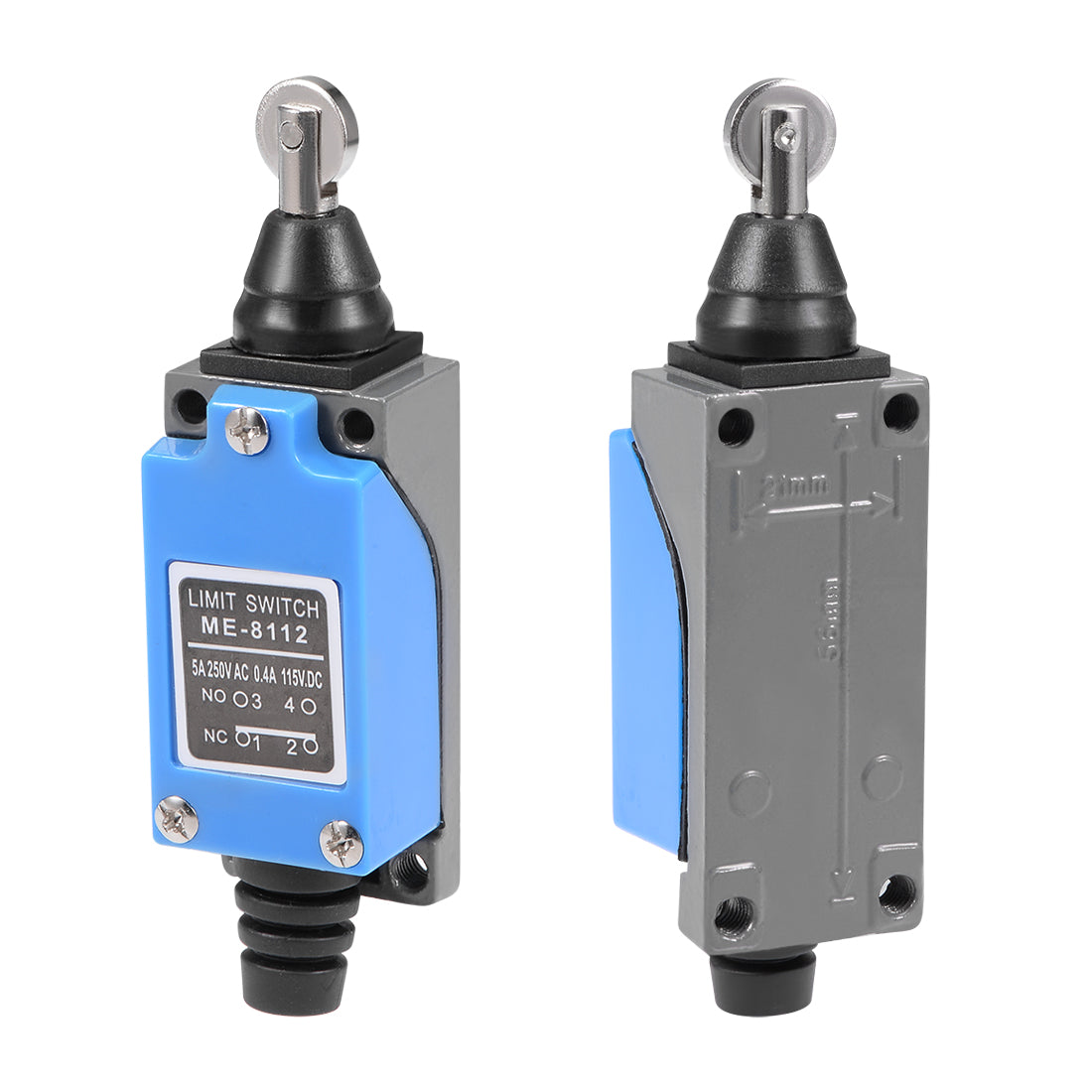

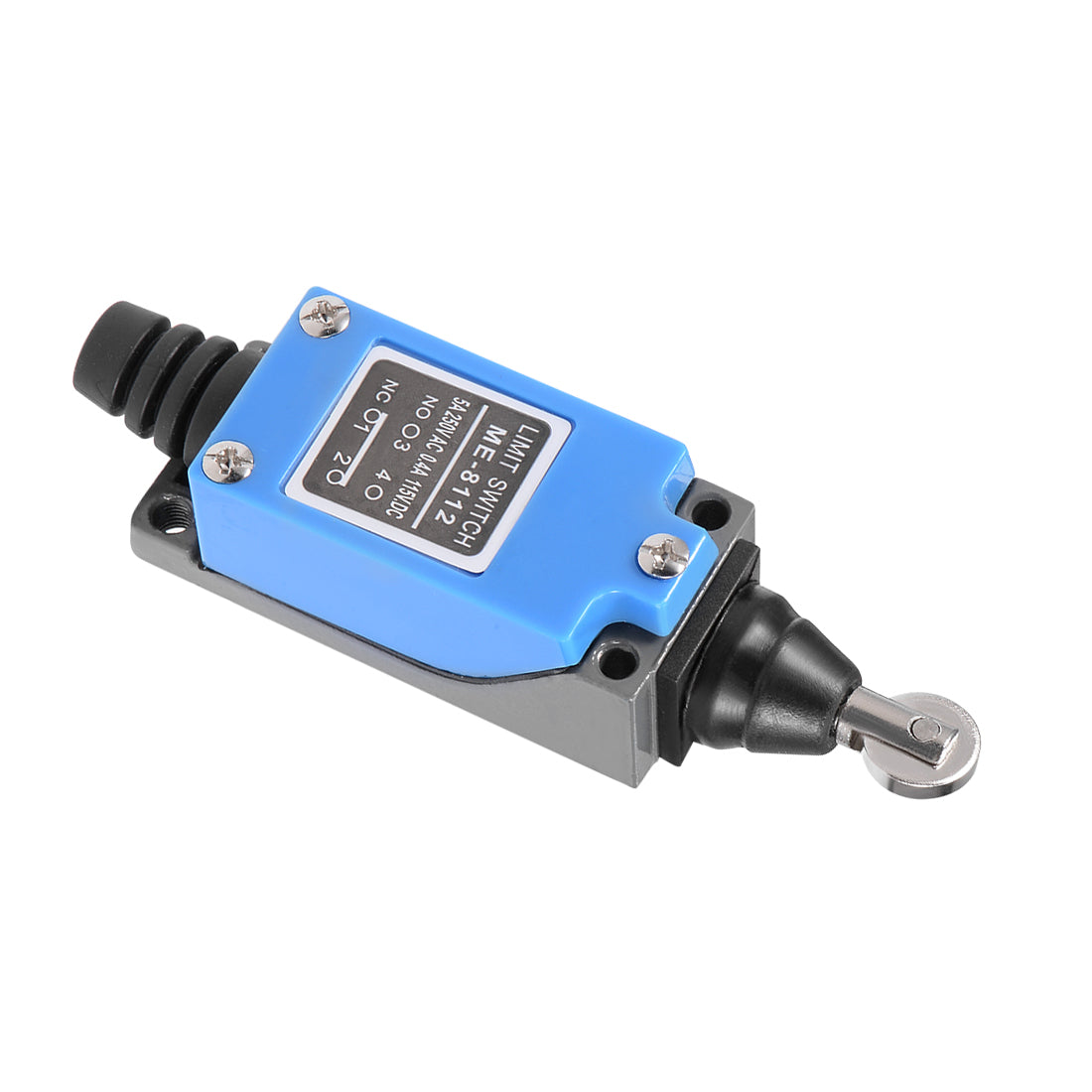

Harfington ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 2Pcs

ME-8112 Roller Plunger Momentary Limit Switch 1NC+1NO 2Pcs

ID:
AU$19.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: ME-8112 ; Roller Plunger Type
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • Easy-to-wire, smooth operation and reliable
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: ME-8112 ; Roller Plunger Type
  • Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
  • Easy-to-wire, smooth operation and reliable
  • built-in basic switch with good electrical conductivity
  • Able to withstand some washdowns, shock and vibration
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

Product Name: Limit Switch

Model: ME-8112

Actuator Type: Roller Plunger Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

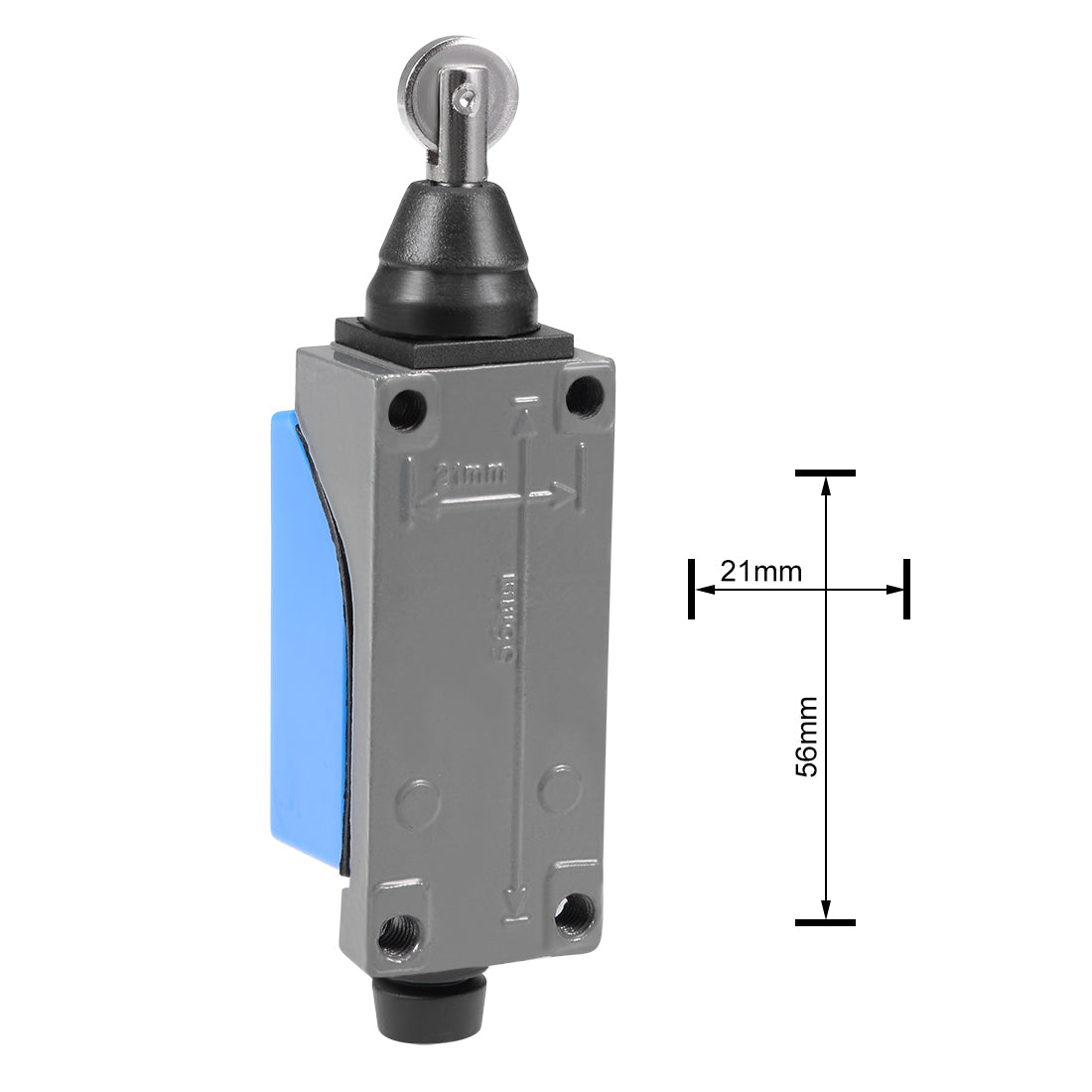

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.

Position detection accuracy is high.

Operating Characteristics:

OF max.: 1100g (10.78N)

RF min.: 250g (2.45N)

PT max.: 2mm

OT min.: 0.6mm

MD max.: 1mm

OP: 37+/-0.8mm

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.

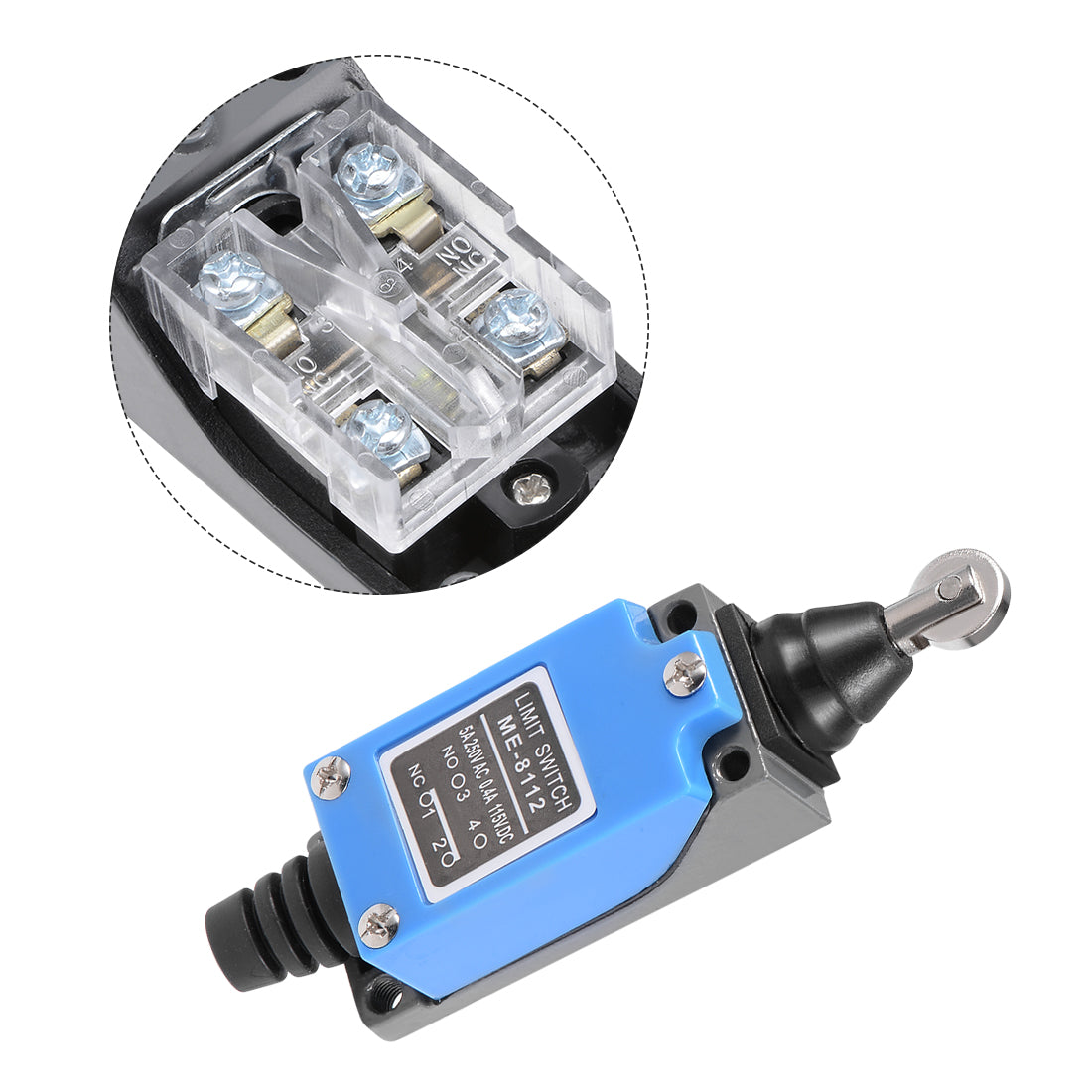

  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$19.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Specification:

Product Name: Limit Switch

Model: ME-8112

Actuator Type: Roller Plunger Type

Rated Voltage: 5A 250V AC / 0.4A 115V DC

Contact Configuration: 1NC+1NO

Body Size: 64 x 28 x 25mm (L*W*T)

Mounting Hole Size: M5

Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)

The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.

Position detection accuracy is high.

Operating Characteristics:

OF max.: 1100g (10.78N)

RF min.: 250g (2.45N)

PT max.: 2mm

OT min.: 0.6mm

MD max.: 1mm

OP: 37+/-0.8mm

Description:

  • Double circuit limit switch with build-in double reed mechanism.
  • Zine alloy and intensive plastic shell, strong and hightly rigid construction.
  • Smooth operation with highter OT.
  • Brass contacts with 30% silver contained. Easy-to-wire design.
  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
