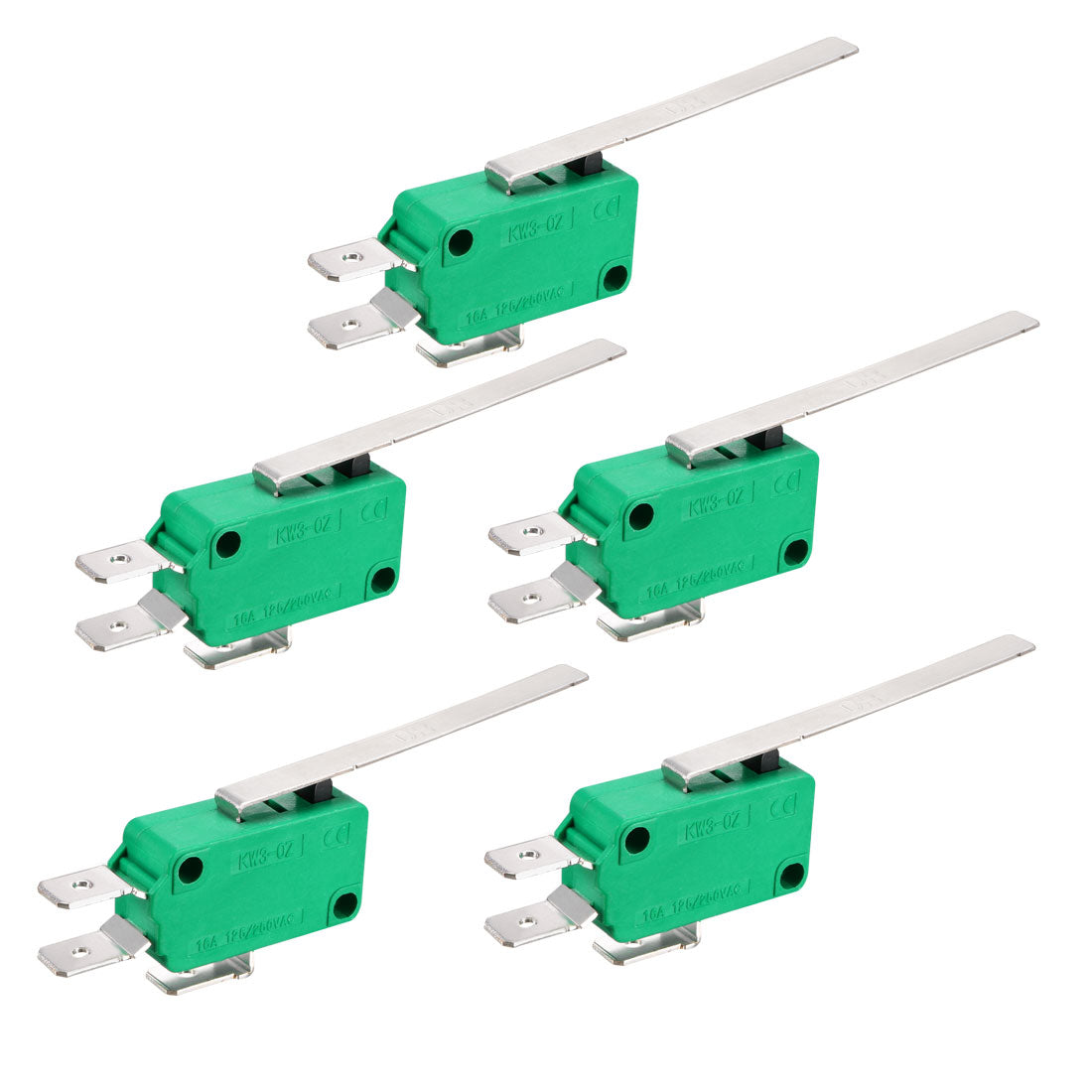

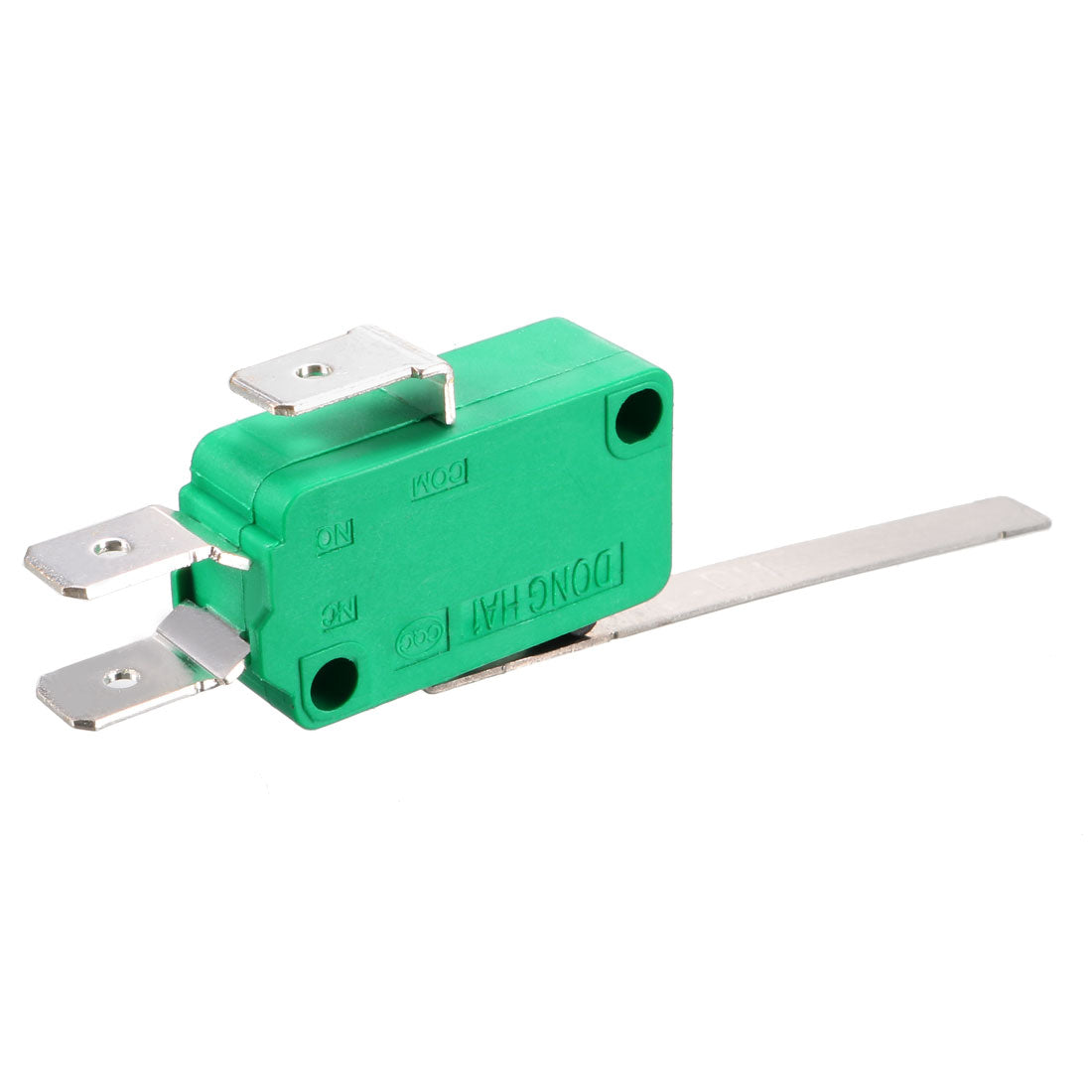

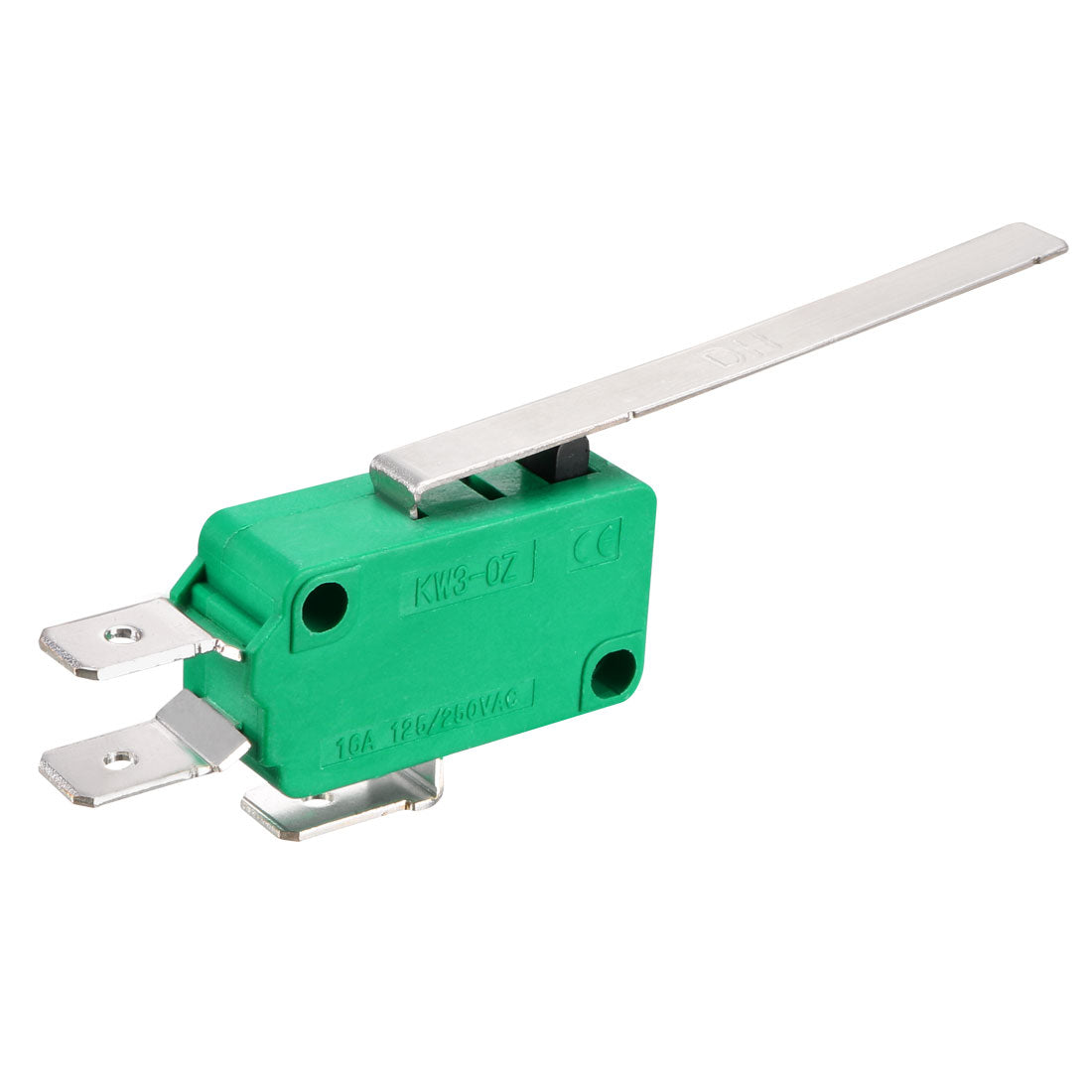

Harfington 5PCS KW3-OZ 16A 125/250VAC Long Straight Hinge Lever Type SPDT NO NC Micro Limit Switches

5PCS KW3-OZ 16A 125/250VAC Long Straight Hinge Lever Type SPDT NO NC Micro Limit Switches

ID:
AU$18.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
  • 3 pins, applicable to AC DC control circuits.Reliable for years
  • High precision design, use easily.Designed to control the movement of a mechanical part.
  • IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
  • Widely used in appliances, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool, etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features

Offers long service and operations life.

Small contact gap, snap action, high sensitivity, and small operating travel

Widely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc.



Specification

Rating Load: 16A 125/250VAC

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Dielectric strength: 1,000 VAC 50/60 Hz for 1minute

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

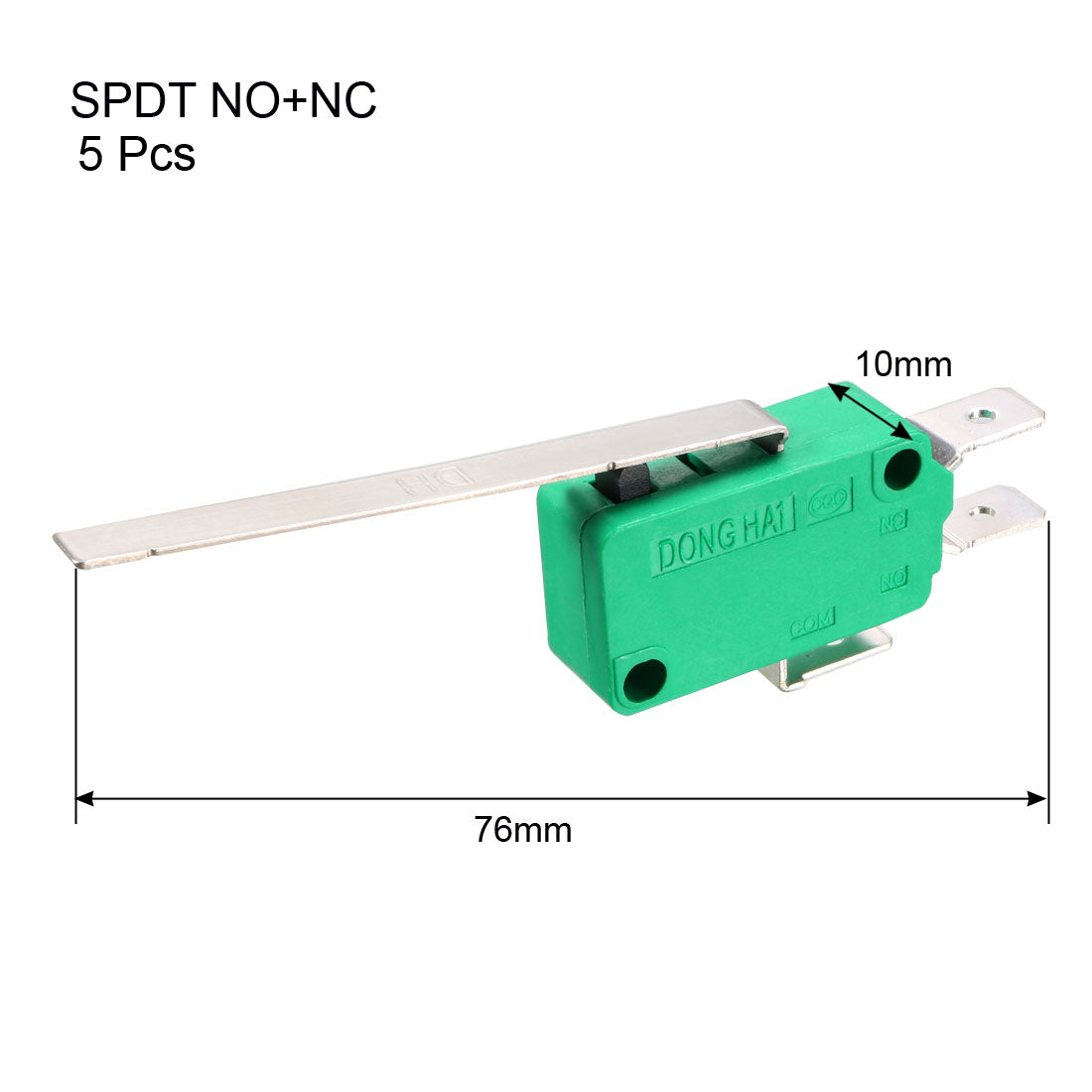

Overall size: 76x22x10mm/2.99x0.87x0.39inch(L*W*H)

Total weight: 43g



Package Content

5 x Micro switch

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$18.00 Regular price
AU/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Features

Offers long service and operations life.

Small contact gap, snap action, high sensitivity, and small operating travel

Widely used in appliances, electronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool, etc.



Specification

Rating Load: 16A 125/250VAC

Operation speed: 0.1mm-1m/s

Contact resistance: 15m Ohm max. (initial)

Insulation resistance: 100m Ohm min. (at DC500V)

Dielectric strength: 1,000 VAC 50/60 Hz for 1minute

Life: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)

Operating temperature: -25~+80°C

Contact Form: SPDT NO+NC

Pin number: 3

Overall size: 76x22x10mm/2.99x0.87x0.39inch(L*W*H)

Total weight: 43g



Package Content

5 x Micro switch
