Harfington 4pcs KSD9700 Thermostat, 90℃ N.O 5A Metal Bimetal Temperature Control Switch

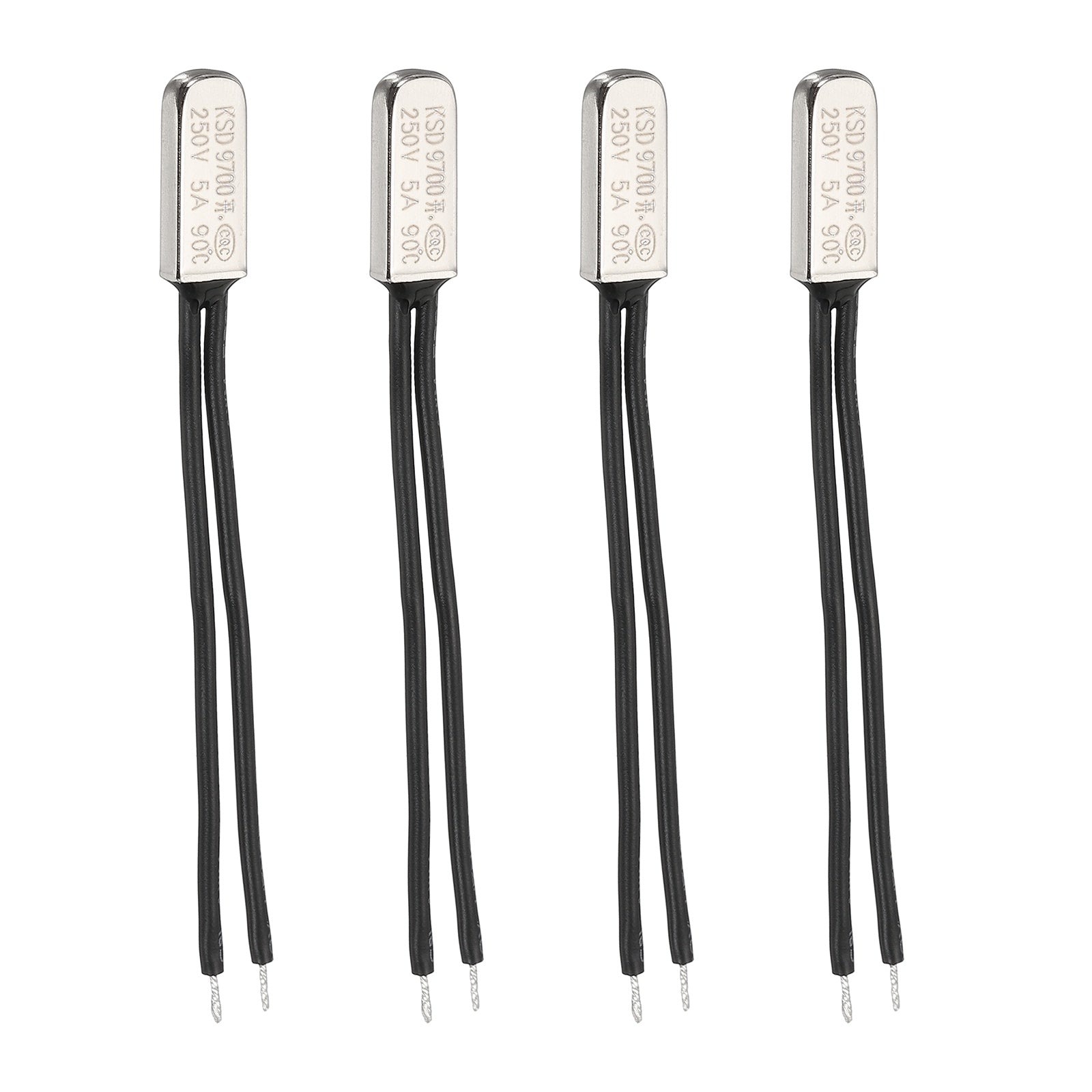

4pcs KSD9700 Thermostat, 90℃ N.O 5A Metal Bimetal Temperature Control Switch

ID:
€8,01 Normaler Preis
/
Großhandelspreis
35%Rabatt
Bestellung $5000+
  • 35%Rabatt
    Bestellung $5000+
  • 25%Rabatt
    Bestellung $2000+
  • 15%Rabatt
    Bestellung $800+
  • 10%Rabatt
    Bestellung $500+
  • 5%Rabatt
    Bestellung $200+
Über diesen Artikel
  • This is a thermostat with a normally open (NO) contact and an action temperature. It is designed to automatically close electrical circuits when the temperature reaches the set point. The normally open temperature switch is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.

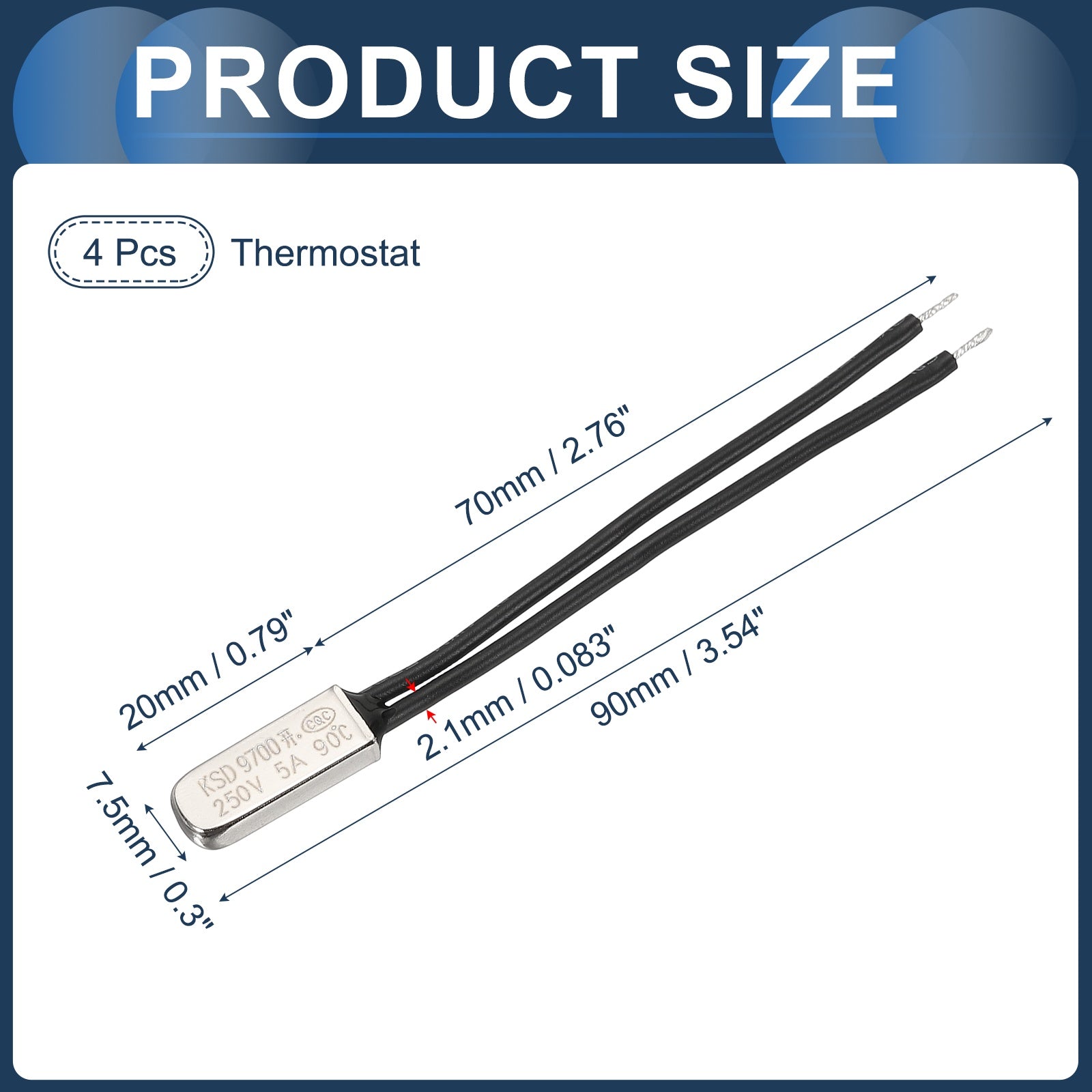

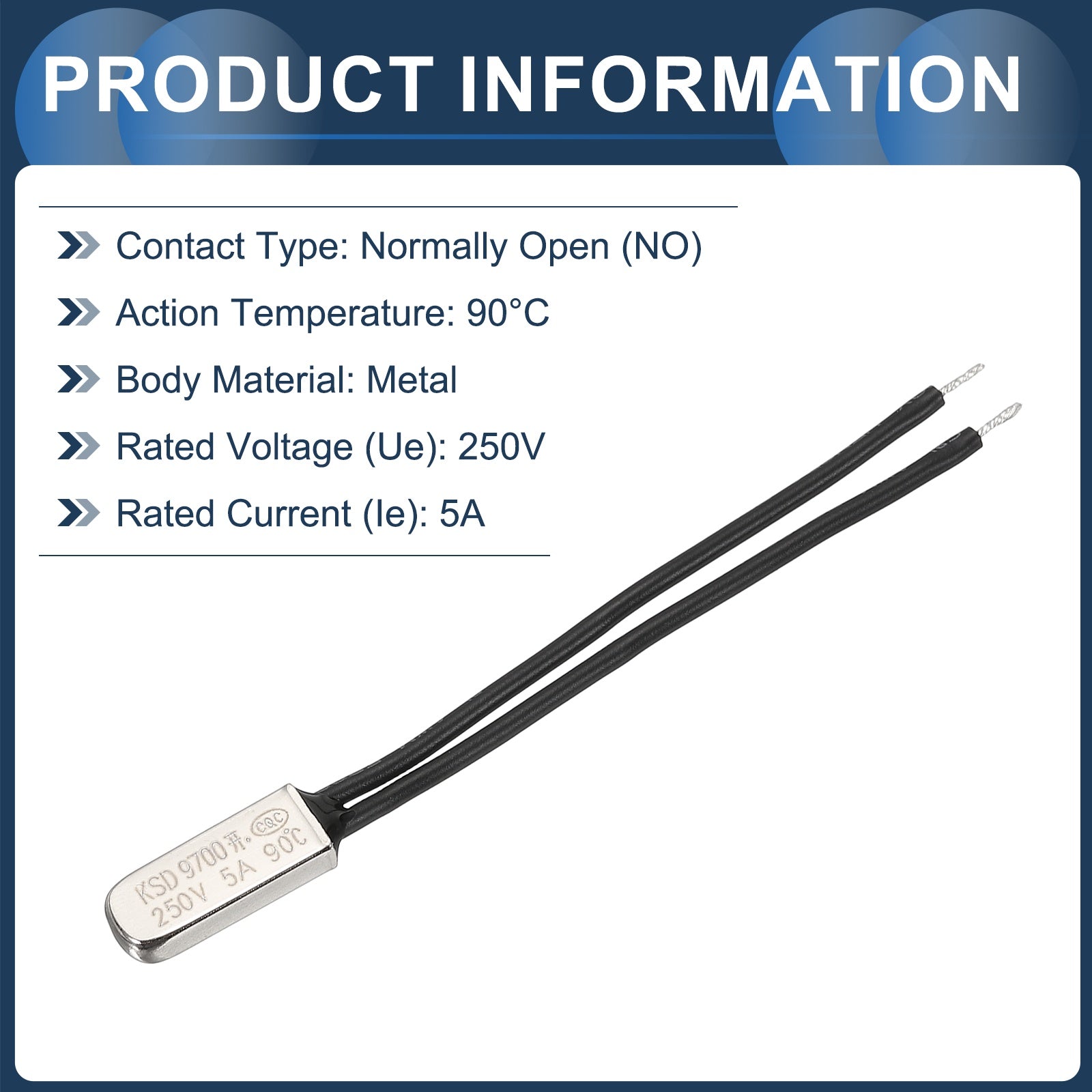

  • Product: Thermostat; Contact Type: Normally Open (NO); Action Temperature: 90°C; Body Material: Metal; Body Size: 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 5A; Package: 4 Pcs Thermostat
  • The metal body of the thermal switch ensures durability and efficient thermal conductivity, while normally open contacts keep the circuit open under normal conditions and close at the action temperature. The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
  • Connect the two wires of the thermal protector in series with the circuit you wish to control. Mount the metal body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will close, completing the circuit to enable heating or operation.
  • Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NO) are suitable for your specific use before installation.
  • Auf Lager
Einkaufswagen
Warenkorb
Über diesen Artikel
  • This is a thermostat with a normally open (NO) contact and an action temperature. It is designed to automatically close electrical circuits when the temperature reaches the set point. The normally open temperature switch is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
  • Product: Thermostat; Contact Type: Normally Open (NO); Action Temperature: 90°C; Body Material: Metal; Body Size: 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 5A; Package: 4 Pcs Thermostat
  • The metal body of the thermal switch ensures durability and efficient thermal conductivity, while normally open contacts keep the circuit open under normal conditions and close at the action temperature. The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
  • Connect the two wires of the thermal protector in series with the circuit you wish to control. Mount the metal body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will close, completing the circuit to enable heating or operation.
  • Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NO) are suitable for your specific use before installation.
Spezifikation

Spezifikation

Anfrage erfolgreich abgeschickt
Wir werden Ihnen innerhalb von 24 Stunden während der Arbeitszeit antworten. Sollten Sie bis dahin noch keine Antwort erhalten haben, überprüfen Sie bitte Ihren Spam. Wir danken Ihnen!
Zahlungen werden über die Website oder den Stripe-Zahlungslink verarbeitet. Bitte beachten Sie, dass E-Mails von Domainkontakten, die nicht @harfington.com sind, nicht vertraut werden sollten.
Artikel Beschreibung:
Was Ist Das
Dies Ist Ein Thermostat Mit Normalerweise Offenem (NO) Kontakt Und Einer Aktionstemperatur Es Ist Dafür Konzipiert Elektrische Schaltkreise Automatisch Zu Schließen Wenn Die Temperatur Den Einstellpunkt Erreicht Der Thermische Schutz Wird Häufig In Haushaltsgerätemotoren Und Elektrischen Geräten Verwendet Wie Verschiedene Mikromotoren Waschmaschinen Klimaanlagen Ventilatoren Induktionskochfelder Und Andere Kleingeräte

Was Bekomme Ich
Produkt Thermostat
Kontakttyp Normalerweise Offen (NO)
Aktionstemperatur 90°C
Gehäusematerial Metall
Gehäusegröße 20mm x 7.5mm x 3.7mm / 0.79" x 0.3" x 0.15" (L x B x H)
Kabellänge 70mm / 2.76"
Gesamtlänge 90mm / 3.54"
Kabeldurchmesser 2.1mm / 0.083"
Nennspannung (Ue) 250V
Nennstrom (Ie) 5A
Verpackung 4 Stück Thermostat

Gibt Es Vorteile
Das Metallgehäuse Des Thermoschalters Gewährleistet Langlebigkeit Und Effiziente Wärmeleitfähigkeit Während Normalerweise Offene Kontakte Den Stromkreis Unter Normalen Bedingungen Offen Halten Und Bei Der Aktionstemperatur Schließen Der Thermostat Zeichnet Sich Durch Kleine Größe Schnelle Reaktion Präzise Temperaturregelung Hohen Steuerstrom Stabile Leistung Und Lange Lebensdauer Aus

Wie Wird Es Verwendet
Verbinden Sie Die Zwei Kabel Des Thermischen Schutzes In Reihe Mit Dem Stromkreis Den Sie Steuern Möchten Montieren Sie Das Metallgehäuse In Der Nähe Der Wärmequelle Oder Des Bereichs Der Temperaturüberwachung Benötigt Wenn Die Temperatur Die Aktionstemperatur Erreicht Schließt Sich Der Schalter Und Schließt Den Stromkreis Um Heizung Oder Betrieb Zu Ermöglichen
