Harfington 4pcs KSD9700 Thermostat, 80℃ N.C 5A Plastic Temperature Control Switch

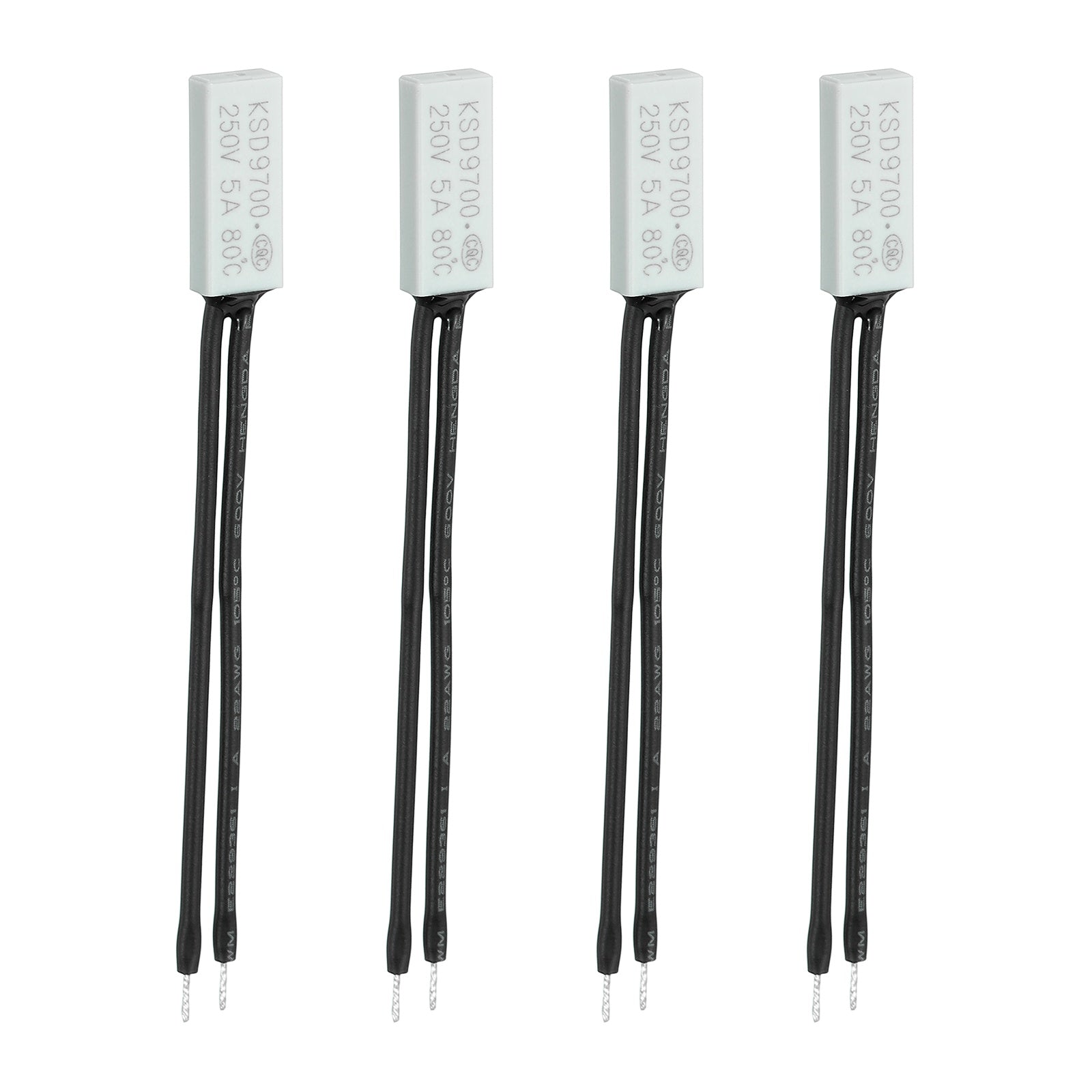

4pcs KSD9700 Thermostat, 80℃ N.C 5A Plastic Temperature Control Switch

ID:
€7,81 Normaler Preis
/
Großhandelspreis
35%Rabatt
Bestellung $5000+
  • 35%Rabatt
    Bestellung $5000+
  • 25%Rabatt
    Bestellung $2000+
  • 15%Rabatt
    Bestellung $800+
  • 10%Rabatt
    Bestellung $500+
  • 5%Rabatt
    Bestellung $200+
Über diesen Artikel
  • This is a thermostat with a normally closed (NC) contact and an action temperature. It is designed to automatically cut off electrical circuits when the temperature exceeds the set point. The thermal protector is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.

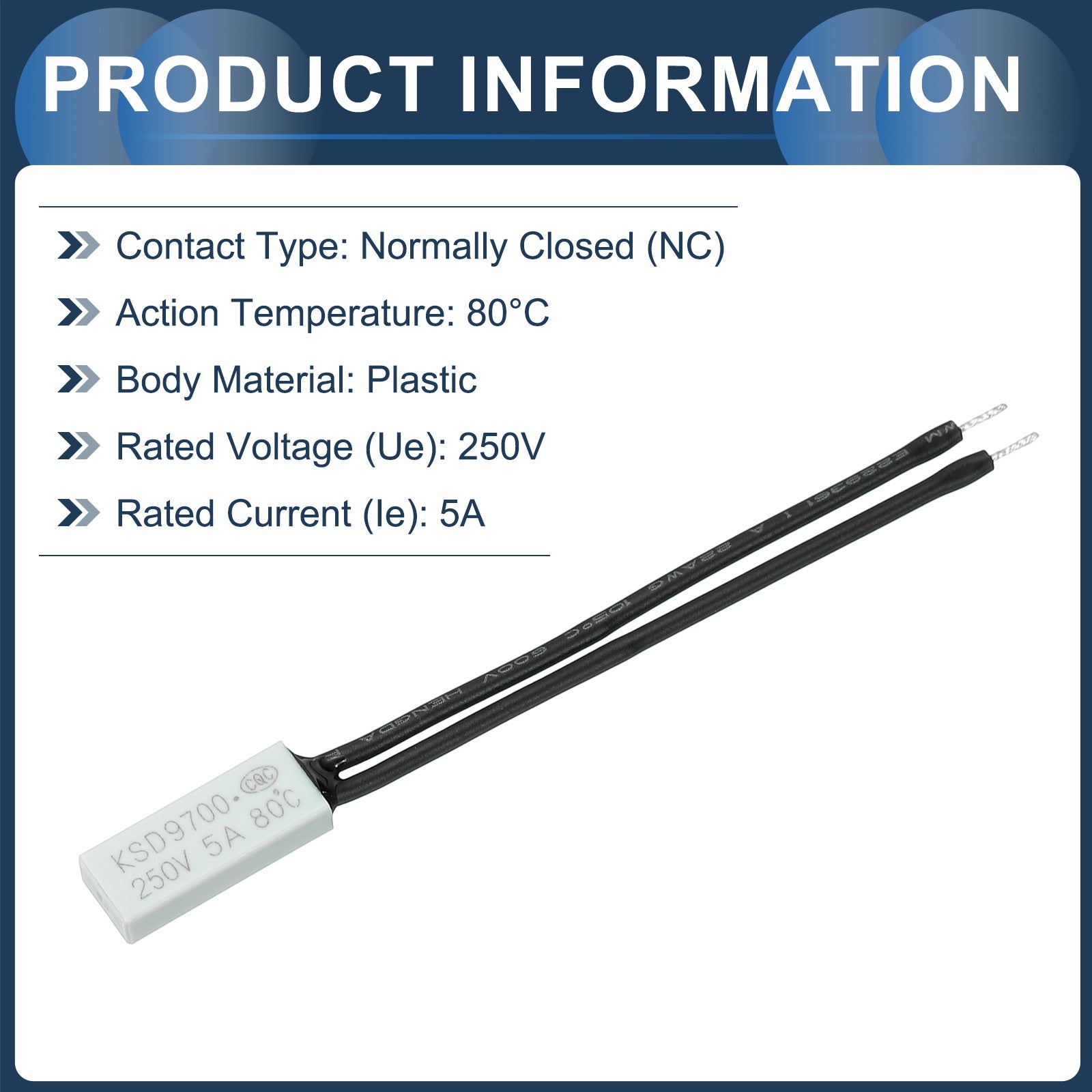

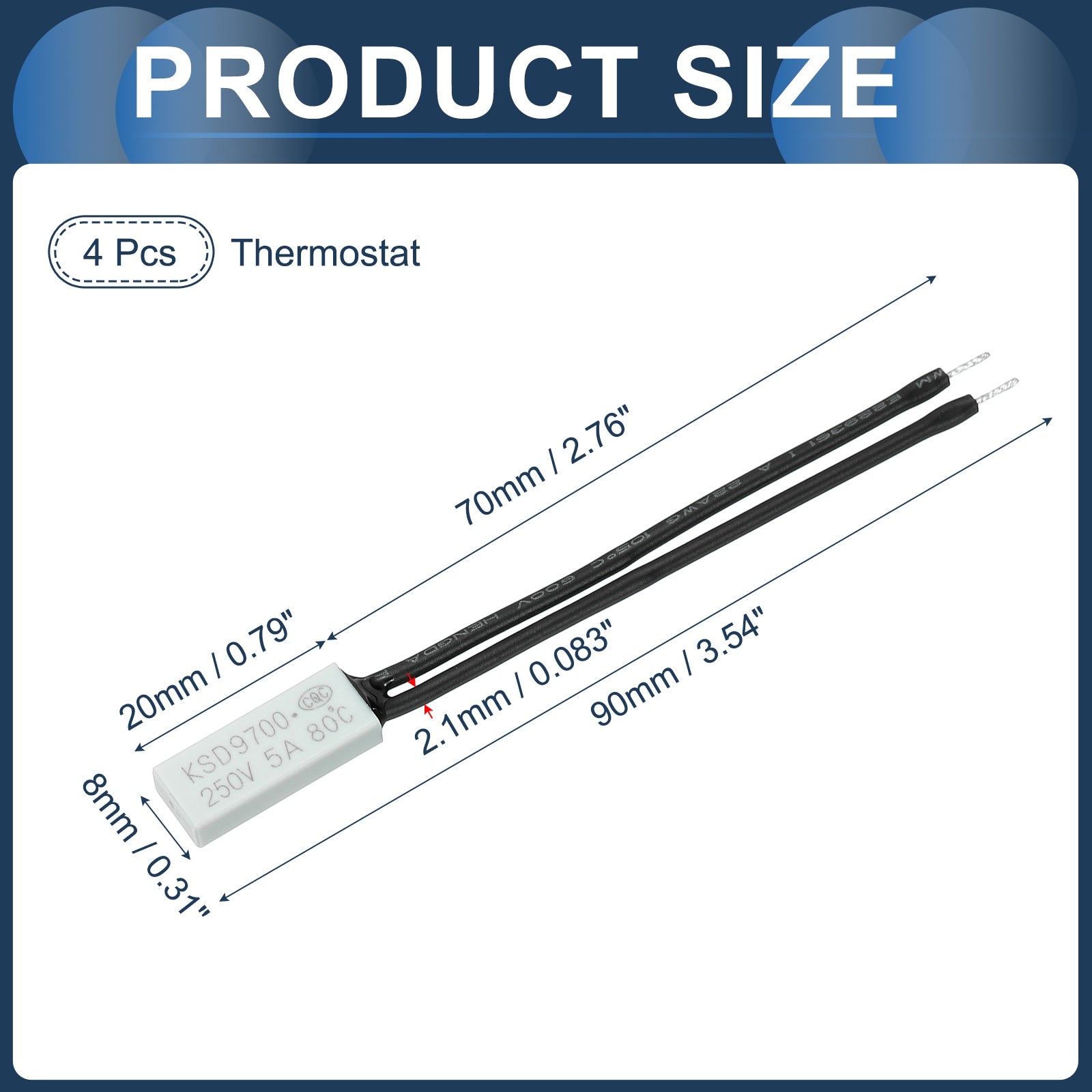

  • Product: Thermostat; Contact Type: Normally Closed (NC); Action Temperature: 80°C; Body Material: Plastic; Body Size: 20mm x 8mm x 4mm / 0.79" x 0.31" x 0.16" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 5A; Package: 4 Pcs Thermostat
  • The plastic body of the thermal switch ensures durability, while the normally closed contacts keep the circuit closed under normal conditions and open at the action temperature. The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
  • Connect the two wires of the thermal protector in series with the circuit you wish to protect. Mount the plastic body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will open, interrupting the circuit to prevent overheating.
  • Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NC) are suitable for your specific use before installation.
  • Auf Lager
Einkaufswagen
Warenkorb
Über diesen Artikel
  • This is a thermostat with a normally closed (NC) contact and an action temperature. It is designed to automatically cut off electrical circuits when the temperature exceeds the set point. The thermal protector is widely used in household appliance motors and electrical equipment, such as various micro motors, washing machines, air conditioners, fans, induction cookers, and other small appliances.
  • Product: Thermostat; Contact Type: Normally Closed (NC); Action Temperature: 80°C; Body Material: Plastic; Body Size: 20mm x 8mm x 4mm / 0.79" x 0.31" x 0.16" (L x W x H); Wire Length: 70mm / 2.76"; Total Length: 90mm / 3.54"; Wire Diameter: 2.1mm / 0.083"; Rated Voltage (Ue): 250V; Rated Current (Ie): 5A; Package: 4 Pcs Thermostat
  • The plastic body of the thermal switch ensures durability, while the normally closed contacts keep the circuit closed under normal conditions and open at the action temperature. The thermostat features a small size, fast response, precise temperature control, high control current, stable performance, and long lifespan.
  • Connect the two wires of the thermal protector in series with the circuit you wish to protect. Mount the plastic body close to the heat source or area requiring temperature monitoring. When the temperature reaches the action temperature, the switch will open, interrupting the circuit to prevent overheating.
  • Ensure the voltage and current in your application do not exceed the rated values. Install the temperature controller in a dry location away from direct exposure to water or corrosive substances. Verify the temperature range and contact type (NC) are suitable for your specific use before installation.
Spezifikation

Spezifikation

Anfrage erfolgreich abgeschickt
Wir werden Ihnen innerhalb von 24 Stunden während der Arbeitszeit antworten. Sollten Sie bis dahin noch keine Antwort erhalten haben, überprüfen Sie bitte Ihren Spam. Wir danken Ihnen!
Zahlungen werden über die Website oder den Stripe-Zahlungslink verarbeitet. Bitte beachten Sie, dass E-Mails von Domainkontakten, die nicht @harfington.com sind, nicht vertraut werden sollten.
Artikel Beschreibung:
Was ist das?
Dies ist ein Thermostat mit einem normalerweise geschlossenen (NC) Kontakt und einer Auslösetemperatur. Er ist dafür ausgelegt, elektrische Stromkreise automatisch zu unterbrechen, wenn die Temperatur den eingestellten Wert überschreitet. Der thermische Schutzschalter wird häufig in Haushaltsgerätemotoren und elektrischen Geräten verwendet, wie z.B. verschiedenen Kleinstmotoren, Waschmaschinen, Klimaanlagen, Ventilatoren, Induktionskochfeldern und anderen kleinen Geräten.

Was erhalte ich?
Produkt: Thermostat
Kontakttyp: Normalerweise geschlossen (NC)
Auslösetemperatur: 80°C
Gehäusematerial: Kunststoff
Gehäusegröße: 20mm x 8mm x 4mm / 0.79" x 0.31" x 0.16" (L x B x H)
Kabellänge: 70mm / 2.76"
Gesamtlänge: 90mm / 3.54"
Kabeldurchmesser: 2.1mm / 0.083"
Nennspannung (Ue): 250V
Nennstrom (Ie): 5A
Lieferumfang: 4 Stück Thermostat

Gibt es Vorteile?
Das Kunststoffgehäuse des thermischen Schalters gewährleistet Langlebigkeit, während die normalerweise geschlossenen Kontakte den Stromkreis unter normalen Bedingungen geschlossen halten und bei Erreichen der Auslösetemperatur öffnen. Der Thermostat zeichnet sich durch kompakte Größe, schnelles Ansprechen, präzise Temperaturregelung, hohen Steuerstrom, stabile Leistung und lange Lebensdauer aus.

Wie wird er verwendet?
Schließen Sie die beiden Kabel des thermischen Schutzschalters in Reihe mit dem zu schützenden Stromkreis an. Bringen Sie das Kunststoffgehäuse in der Nähe der Wärmequelle oder des zu überwachenden Bereichs an. Wenn die Temperatur die Auslösetemperatur erreicht, öffnet sich der Schalter und unterbricht den Stromkreis, um Überhitzung zu verhindern.

Worauf sollte ich achten?
