Harfington 6pcs HB-9500 9 Positions Terminal Block 300V 20A 9.5mm Pitch Green

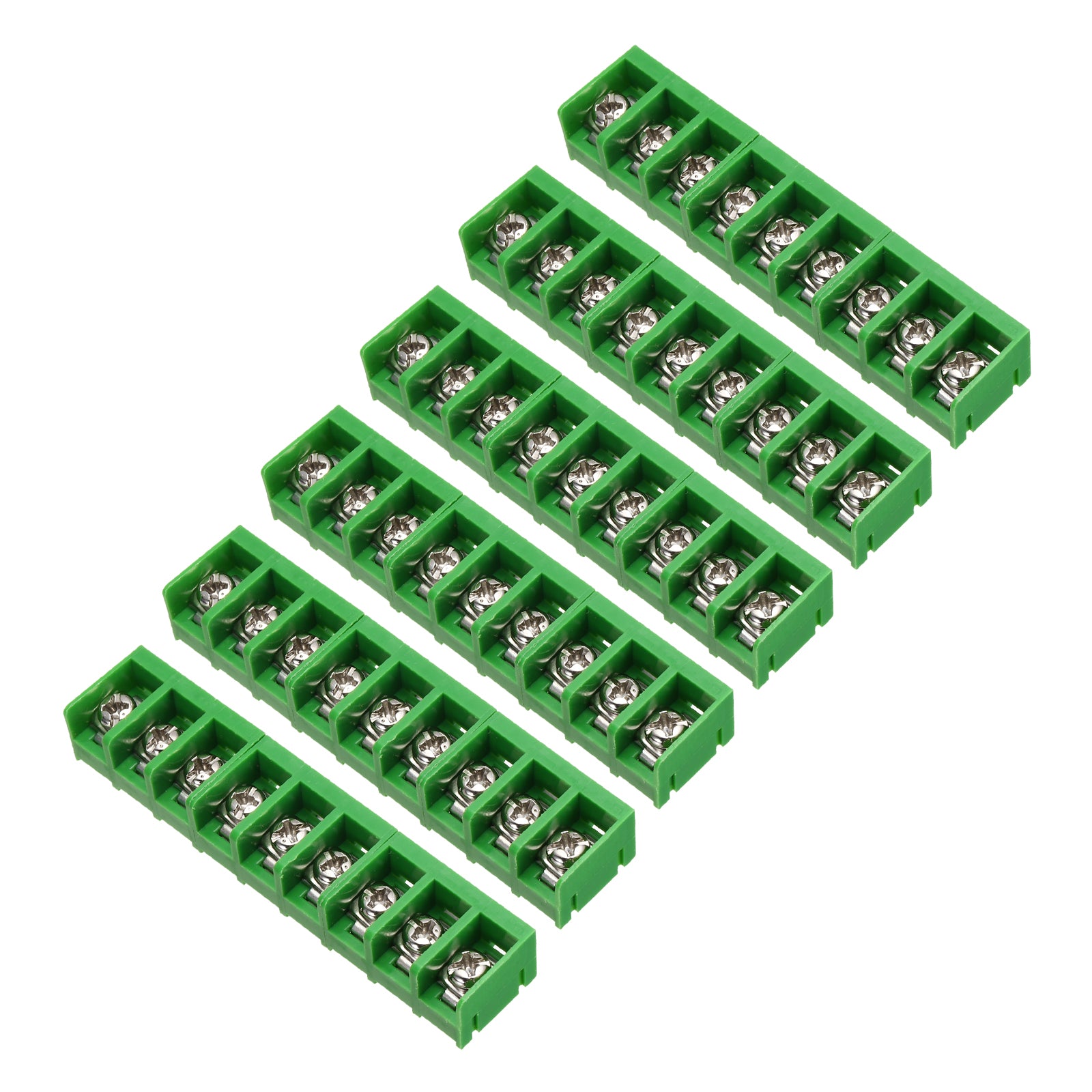

6pcs HB-9500 9 Positions Terminal Block 300V 20A 9.5mm Pitch Green

ID:
€16,58 Normaler Preis
/
Großhandelspreis
35%Rabatt
Bestellung $5000+
  • 35%Rabatt
    Bestellung $5000+
  • 25%Rabatt
    Bestellung $2000+
  • 15%Rabatt
    Bestellung $800+
  • 10%Rabatt
    Bestellung $500+
  • 5%Rabatt
    Bestellung $200+
Über diesen Artikel

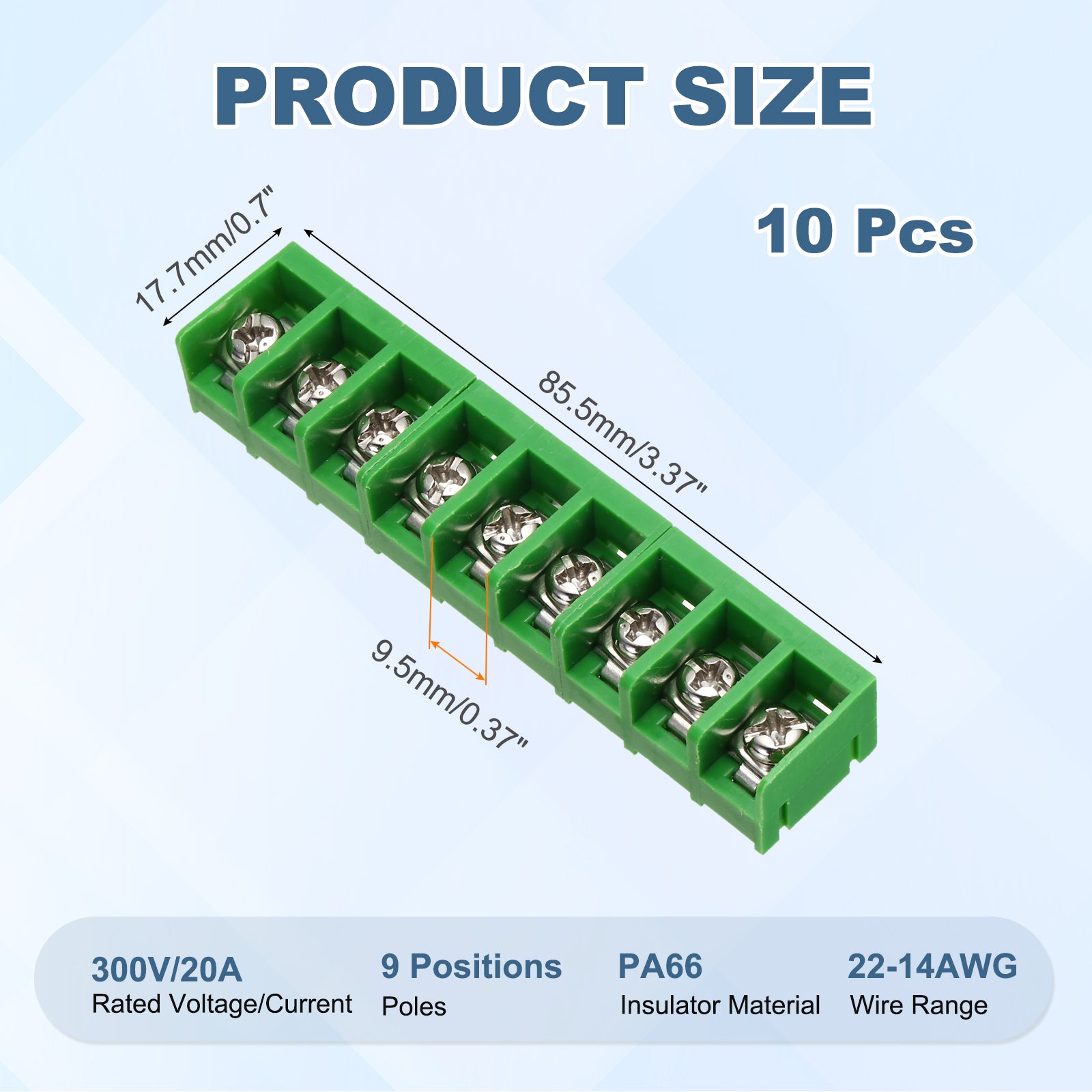

  • Product Name: HB-9500 Terminal Block; Rated Voltage/Current: 300V/20A; Poles: 9 Positions (Single Row); Overall Dimensions: 85.5 x 17.7 x 20mm/ 3.37" x 0.7" x 0.79"(LxWxH); Mounting Pitch: 9.5mm/0.37"; Conductor Material: Tin-Plated Brass; Insulator Material: PA66; Wire Range: 22-14AWG; Color: Green; Package Contents: 6Pcs x Terminal Blocks
  • Align the terminal block with PCB mounting holes, solder it into position, and secure wires using the screw-down terminals. Strip wires to 5-7mm length and tighten screws firmly to ensure optimal connection.

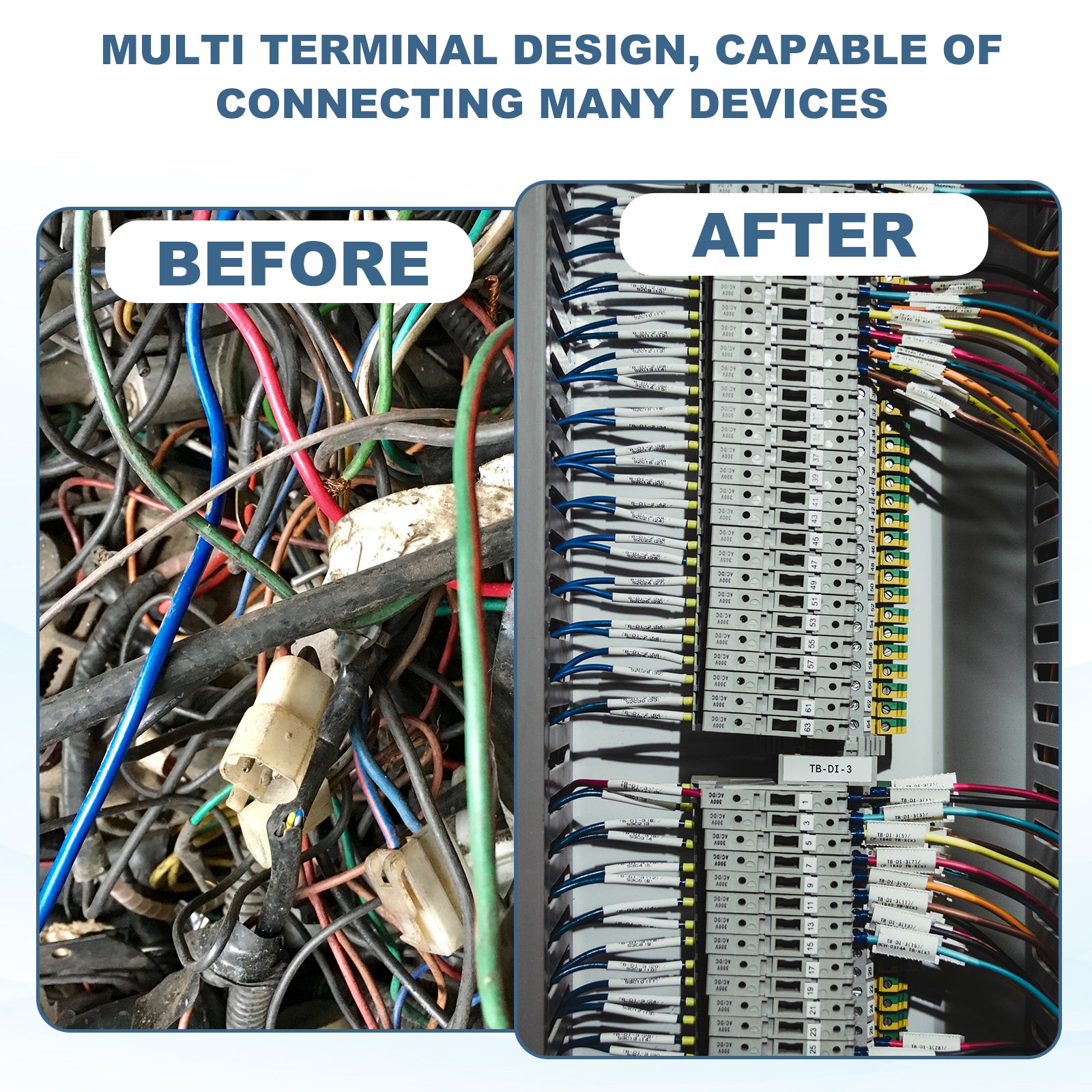

  • A terminal block is an electrical component used to connect circuits in electrical equipment. Its function is to connect circuits between internal and external devices, transmitting signals (current and voltage). It also provides aesthetically pleasing wiring and easy maintenance. It provides secure PCB connections for industrial control systems, power supplies, automotive electronics, HVAC equipment, and telecommunications equipment.

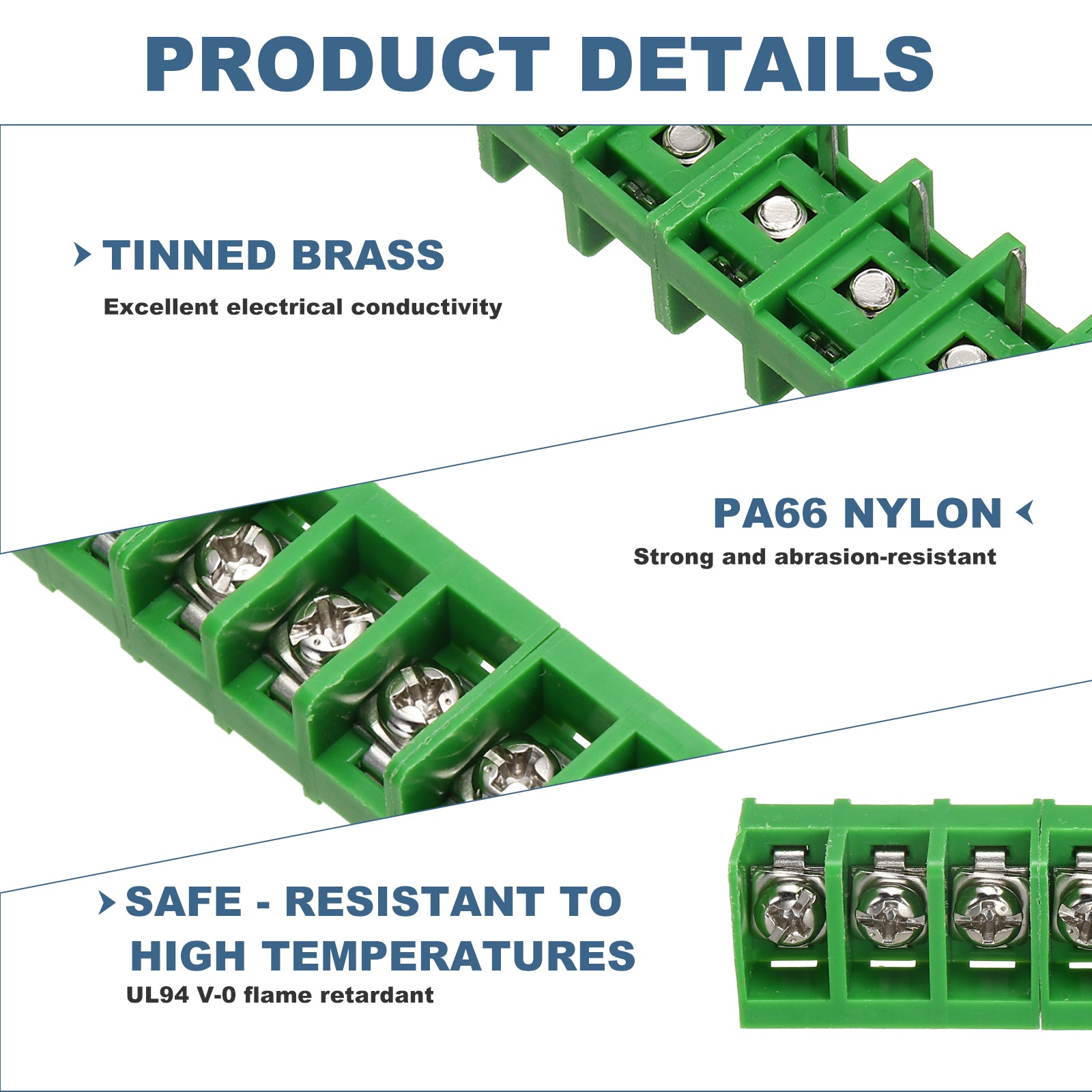

  • The terminal blocks feature tinned brass conductors for secure insertion and removal, and excellent conductivity. The housing is made of PA66 nylon, offering high strength, toughness, durability, and abrasion resistance. Furthermore, they offer excellent heat resistance (105°C) and flame retardancy (UL94 V-0), ensuring safety before and after wiring.
  • Do not exceed the rated voltage/current specifications. Ensure the stripped length is appropriate and the screws are tightened for an optimal connection.
  • Auf Lager
Einkaufswagen
Warenkorb
Über diesen Artikel
  • Product Name: HB-9500 Terminal Block; Rated Voltage/Current: 300V/20A; Poles: 9 Positions (Single Row); Overall Dimensions: 85.5 x 17.7 x 20mm/ 3.37" x 0.7" x 0.79"(LxWxH); Mounting Pitch: 9.5mm/0.37"; Conductor Material: Tin-Plated Brass; Insulator Material: PA66; Wire Range: 22-14AWG; Color: Green; Package Contents: 6Pcs x Terminal Blocks
  • Align the terminal block with PCB mounting holes, solder it into position, and secure wires using the screw-down terminals. Strip wires to 5-7mm length and tighten screws firmly to ensure optimal connection.
  • A terminal block is an electrical component used to connect circuits in electrical equipment. Its function is to connect circuits between internal and external devices, transmitting signals (current and voltage). It also provides aesthetically pleasing wiring and easy maintenance. It provides secure PCB connections for industrial control systems, power supplies, automotive electronics, HVAC equipment, and telecommunications equipment.
  • The terminal blocks feature tinned brass conductors for secure insertion and removal, and excellent conductivity. The housing is made of PA66 nylon, offering high strength, toughness, durability, and abrasion resistance. Furthermore, they offer excellent heat resistance (105°C) and flame retardancy (UL94 V-0), ensuring safety before and after wiring.
  • Do not exceed the rated voltage/current specifications. Ensure the stripped length is appropriate and the screws are tightened for an optimal connection.
Spezifikation

Spezifikation

Anfrage erfolgreich abgeschickt
Wir werden Ihnen innerhalb von 24 Stunden während der Arbeitszeit antworten. Sollten Sie bis dahin noch keine Antwort erhalten haben, überprüfen Sie bitte Ihren Spam. Wir danken Ihnen!
Zahlungen werden über die Website oder den Stripe-Zahlungslink verarbeitet. Bitte beachten Sie, dass E-Mails von Domainkontakten, die nicht @harfington.com sind, nicht vertraut werden sollten.
Artikel Beschreibung:
Was Ist Dies?
Eine Klemmleiste Ist Ein Elektrisches Bauteil Zum Verbinden Von Stromkreisen In Elektrischen Geräten. Ihre Funktion Ist Das Verbinden Von Stromkreisen Zwischen Internen Und Externen Geräten Zum Übertragen Von Signalen (Strom Und Spannung). Sie Ermöglicht Auch Ästhetische Verdrahtung Und Einfache Wartung. Sie Bietet Sichere PCB-Verbindungen Für Industrielle Steuerungssysteme, Netzteile, Automotive-Elektronik, HVAC-Geräte Und Telekommunikationsgeräte.

Was Erhalte Ich?
Produktname: HB-9500 Klemmleiste;
Nennspannung/Strom: 300V/20A;
Pole: 9 Positionen (Einzelreihe);
Gesamtabmessungen: 85.5 x 17.7 x 20mm/ 3.37" x 0.7" x 0.79"(LxBxH);
Montageraster: 9.5mm/0.37";
Leitermaterial: Verzinntes Messing;
Isoliermaterial: PA66;
Leiterquerschnitt: 22-14AWG;
Farbe: Grün;
Lieferumfang: 6Stk x Klemmleisten;

Welche Vorteile Hat Das Produkt?
Die Klemmleisten Haben Verzinnte Messingleiter Für Sichere Kontaktierung Und Hervorragende Leitfähigkeit. Das Gehäuse Besteht Aus PA66-Nylon Mit Hoher Festigkeit, Zähigkeit, Langlebigkeit Und Verschleißfestigkeit. Zudem Bieten Sie Hervorragende Hitzebeständigkeit (105°C) Und Flammwidrigkeit (UL94 V-0) Für Sicherheit Vor Und Nach Der Verdrahtung.

Wie Wird Es Verwendet?
Richten Sie Die Klemmleiste An Den PCB-Montagelöchern Aus, Löten Sie Sie Fest Und Befestigen Sie Die Drähte Mit Den Schraubklemmen. Entfernen Sie 5-7mm Isolierung Und Ziehen Sie Die Schrauben Fest An Für Eine Optimale Verbindung.

Worauf Sollte Ich Achten?
Überschreiten Sie Nicht Die Nennspannung/Strom-Spezifikationen. Stellen Sie Sicher, Dass Die Abisolierlänge Angemessen Ist Und Die Schrauben Festgezogen Sind Für Eine Optimale Verbindung.
