Über diesen Artikel
  • This is a KSD9700 Normally Closed (NC) Temperature Control Switch, designed for precise thermal protection and regulation in electrical appliances and equipment. It automatically opens the circuit when temperature rises beyond the set point and closes it once cooling occurs, ensuring safe operation. Great for motors, washing machines, air conditioners, fans, induction cookers, and other small household or industrial devices requiring reliable temperature management.

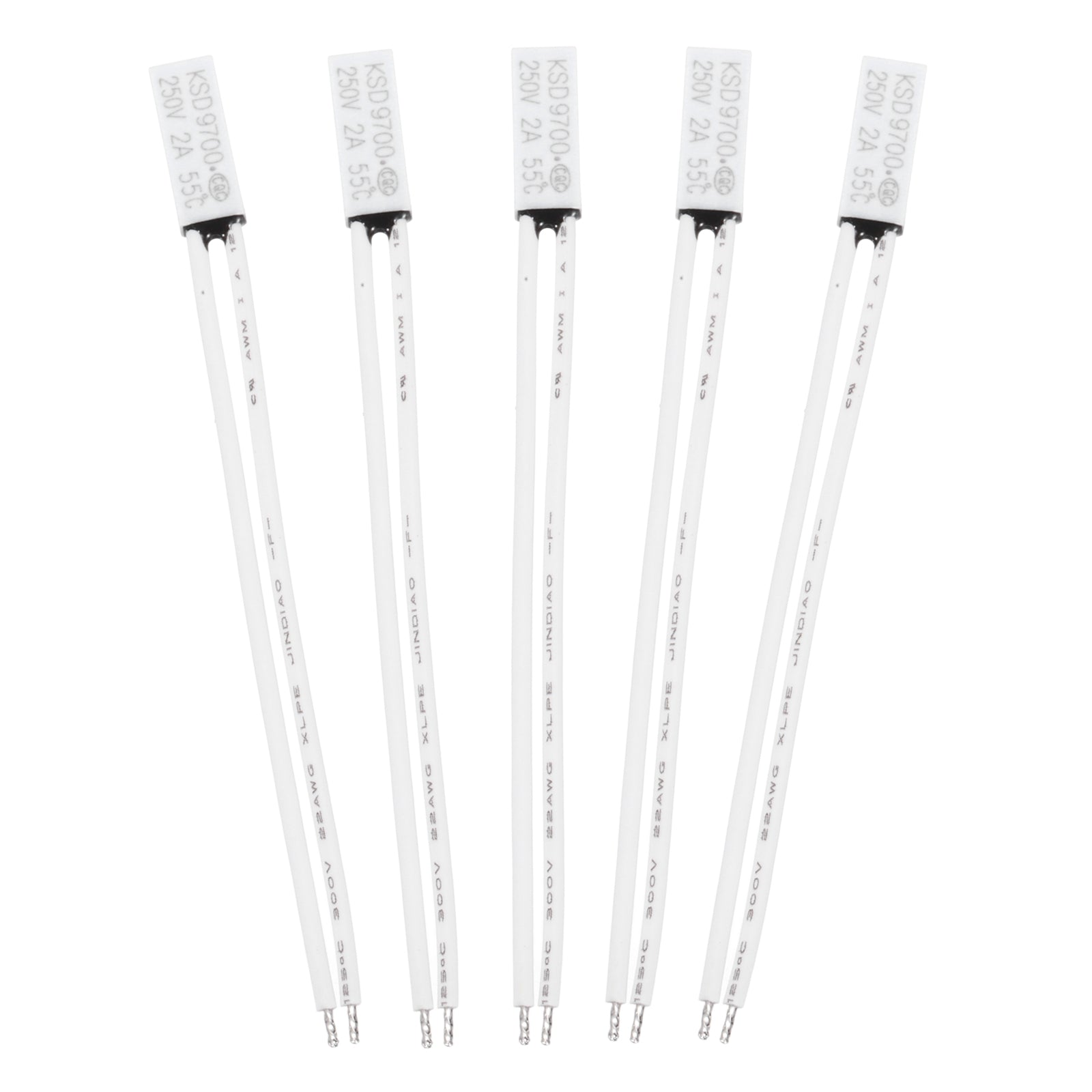

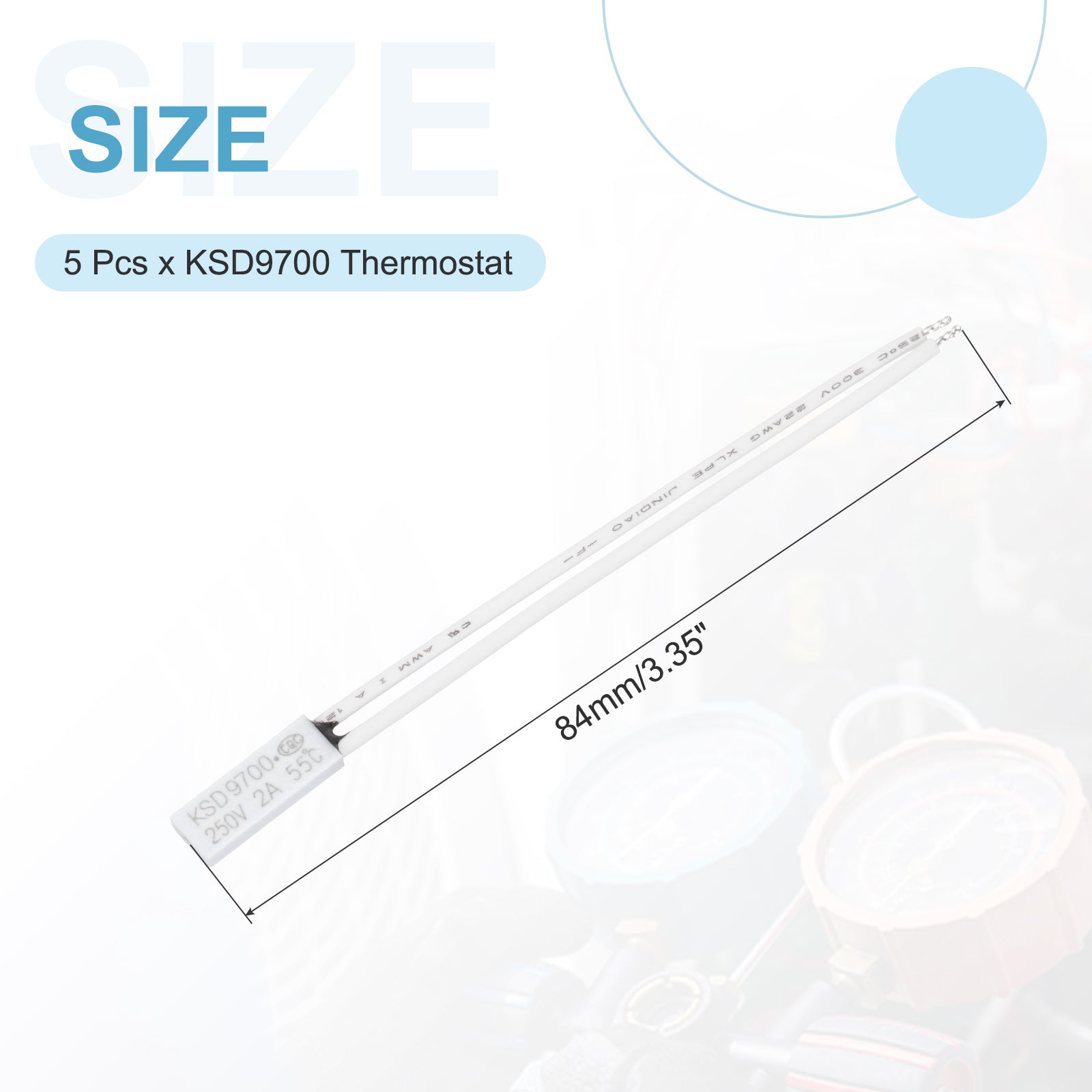

  • Product Name:KSD9700 Thermostat;Action Temperature:55°C/131°F;Action Type:N.C (Normal Close);Power:2A 250V;Pin Type:2 Wires;Body Material:Plastic;Total length x height:85x2.4mm/3.35x0.09inch;Package Content :5 Pcs x KSD9700 Thermostat;
  • KSD9700 temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.Suitable for both temperature protection and automated control systems.
  • Mount the switch in the target area (e.g., motor housing, appliance chassis) using screws or clips, ensuring direct contact with the heat source,Connect the terminals to the circuit according to the device’s wiring diagram.The switch operates automatically: it disconnects the circuit when overheating is detected and connects once temperatures normal.After installation, test the switch by gradually heating the monitor area to verify activation accuracy.
  • Never collapse or deform the plastic or metal shell so as not to affect the performance.It is not suitable for air temperature sensing, only applies to contact sensing.Metal shell case is conductive which needs to be used with the insulating sleeve.
  • Auf Lager
Einkaufswagen
Warenkorb
Über diesen Artikel
  • This is a KSD9700 Normally Closed (NC) Temperature Control Switch, designed for precise thermal protection and regulation in electrical appliances and equipment. It automatically opens the circuit when temperature rises beyond the set point and closes it once cooling occurs, ensuring safe operation. Great for motors, washing machines, air conditioners, fans, induction cookers, and other small household or industrial devices requiring reliable temperature management.
  • Product Name:KSD9700 Thermostat;Action Temperature:55°C/131°F;Action Type:N.C (Normal Close);Power:2A 250V;Pin Type:2 Wires;Body Material:Plastic;Total length x height:85x2.4mm/3.35x0.09inch;Package Content :5 Pcs x KSD9700 Thermostat;
  • KSD9700 temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.Suitable for both temperature protection and automated control systems.
  • Mount the switch in the target area (e.g., motor housing, appliance chassis) using screws or clips, ensuring direct contact with the heat source,Connect the terminals to the circuit according to the device’s wiring diagram.The switch operates automatically: it disconnects the circuit when overheating is detected and connects once temperatures normal.After installation, test the switch by gradually heating the monitor area to verify activation accuracy.
  • Never collapse or deform the plastic or metal shell so as not to affect the performance.It is not suitable for air temperature sensing, only applies to contact sensing.Metal shell case is conductive which needs to be used with the insulating sleeve.
Spezifikation

Spezifikation

Anfrage erfolgreich abgeschickt
Wir werden Ihnen innerhalb von 24 Stunden während der Arbeitszeit antworten. Sollten Sie bis dahin noch keine Antwort erhalten haben, überprüfen Sie bitte Ihren Spam. Wir danken Ihnen!
Zahlungen werden über die Website oder den Stripe-Zahlungslink verarbeitet. Bitte beachten Sie, dass E-Mails von Domainkontakten, die nicht @harfington.com sind, nicht vertraut werden sollten.
Artikel Beschreibung:
Was Ist Dies?
Dies Ist Ein KSD9700 Normalerweise Geschlossener (NC) Temperaturschalter, Entwickelt Für Präzisen Thermoschutz Und Temperaturregelung In Elektrogeräten Und Ausrüstung. Er Öffnet Automatisch Den Stromkreis Bei Überschreiten Der Einstelltemperatur Und Schließt Ihn Bei Abkühlung Wieder, Was Eine Sichere Funktion Gewährleistet. Ideal Für Motoren- Oder Industriegeräte.

Was Bekomme Ich?

Produktname:KSD9700 Thermostat;
Aktionstemperatur:55°C/131°F;
Aktionstyp:N.C (Normal Close);
Leistung:2A 250V;
Anschlusstyp:2 Drähte;
Gehäusematerial:Kunststoff;
Gesamtlänge X Höhe:85x2.4mm/3.35x0.09inch;
Paketinhalt:
5 Stück X KSD9700 Thermostat;


Welche Vorteile Hat Das Produkt?

Der KSD9700 Temperaturregler Zeichnet Sich Durch Kleine Abmessungen, Schnelles Ansprechen, Präzise Temperaturregelung, Hohe Strombelastbarkeit Und Lange Lebensdauer Aus. Normalerweise Geschlossen: Der Kontakt Des Temperaturschalters Ist Im Ursprungszustand Geschlossen Und Öffnet Bei Überschreiten Der Nenntemperatur.

Wie Wird Es Verwendet?

Montieren Sie Den Schalter Im Zielbereich (Z.B. Motorgehäuse, Gerätegehäuse) Mit Schrauben Oder Klammern, Wobei Direkter Kontakt Mit Der Wärmequelle Gewährleistet Sein Muss. Schließen Sie Die Anschlüsse Gemäß Dem Schaltplan Des Geräts An. Der Schalter Arbeitet Automatisch: Er Unterbricht Den Stromkreis Bei Überhitzung Und Schließt Ihn Wieder, Sobald Die Temperatur Normalisiert Ist.

Worauf Muss Ich Achten?

Vermeiden Sie Es, Das Kunststoff- Oder Metallgehäuse Zu Verformen Oder Zu Beschädigen, Da Dies Die Leistung Beeinträchtigen Kann. Der Schalter Ist Nicht Für Die Messung Der Lufttemperatur Geeignet, Sondern Nur Für Die Kontaktmessung. Metallgehäuse Sind Leitfähig Und Müssen Mit Isolierhülsen Verwendet Werden.
