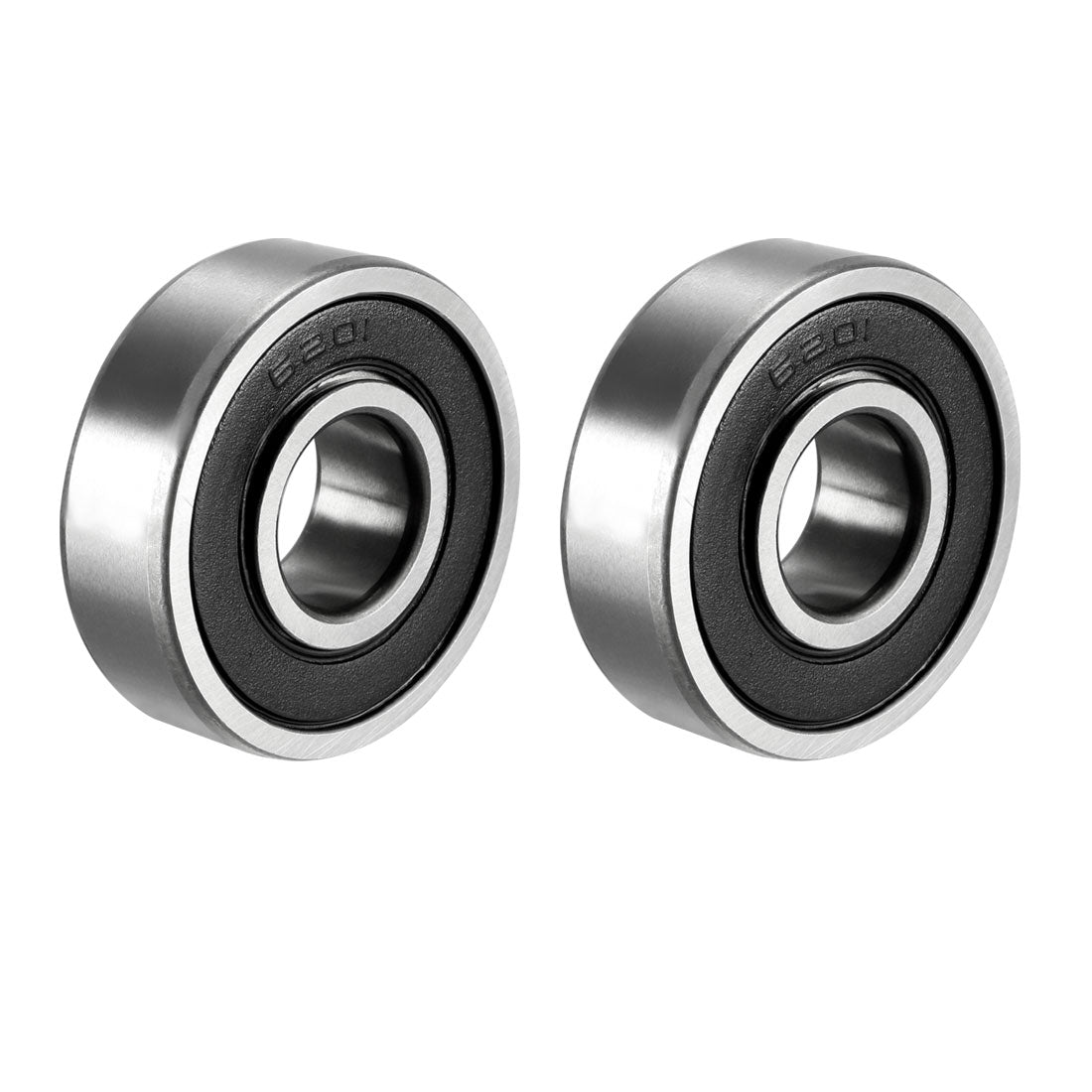

Harfington 6201-2RS Ball Bearing 12mm x 32mm x 10mm Double Sealed 180201 Deep Groove Bearings Carbon Steel (Pack of 2)

6201-2RS Ball Bearing 12mm x 32mm x 10mm Double Sealed 180201 Deep Groove Bearings Carbon Steel (Pack of 2)

ID:
€10,95 Normaler Preis
/
Über diesen Artikel

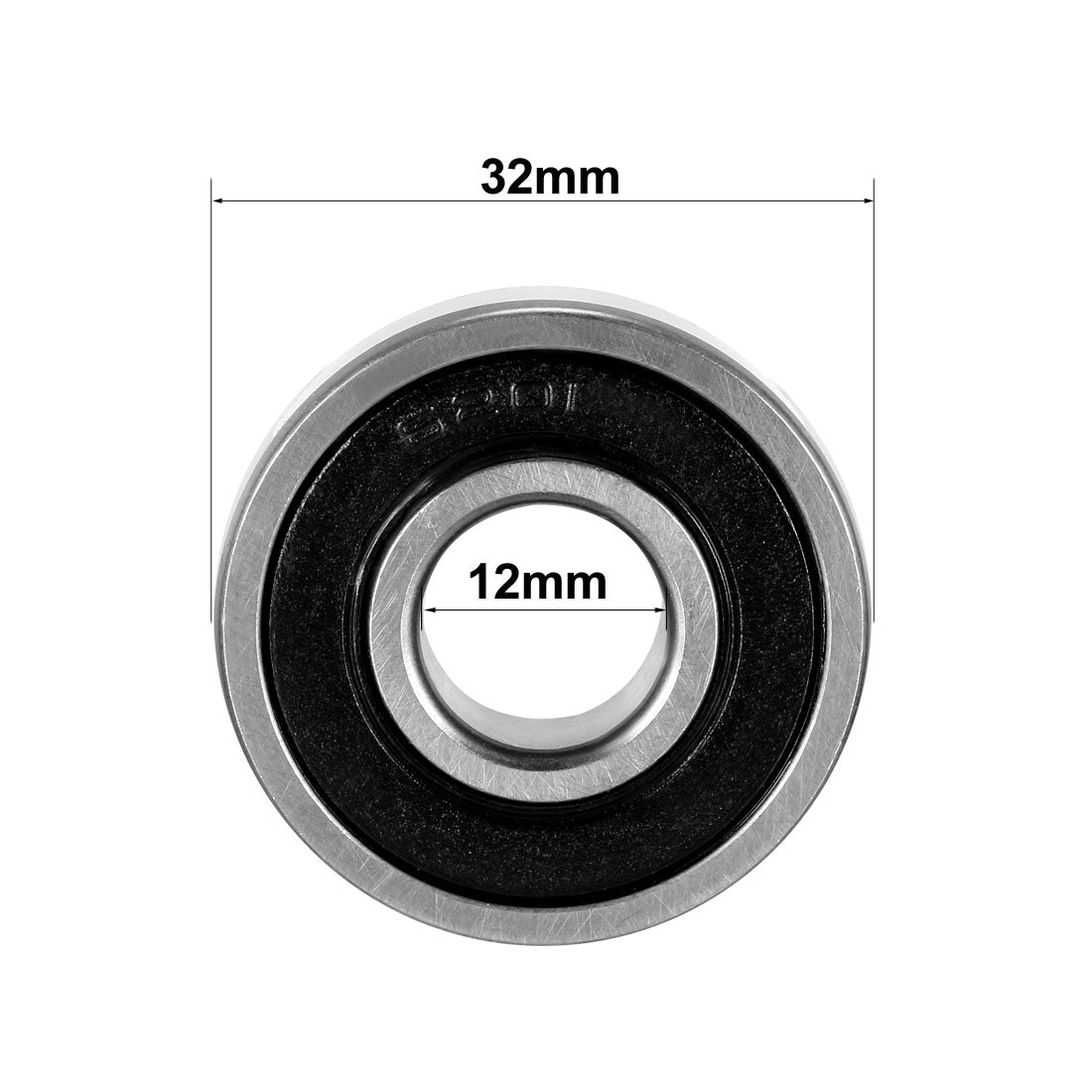

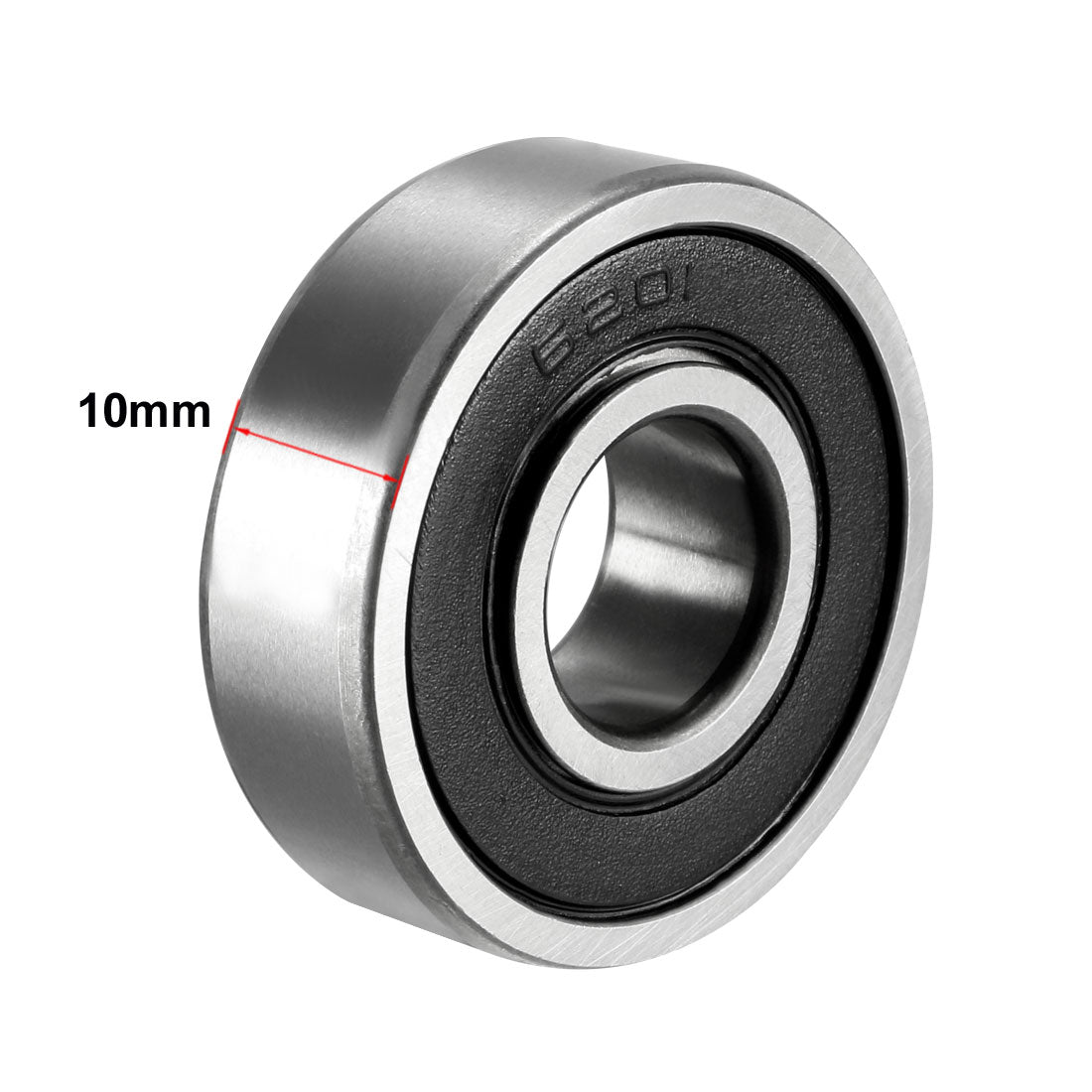

  • Size: 6201-2RS (Inner Dia.=12mm, Outer Dia.=32mm, Thickness=10mm)

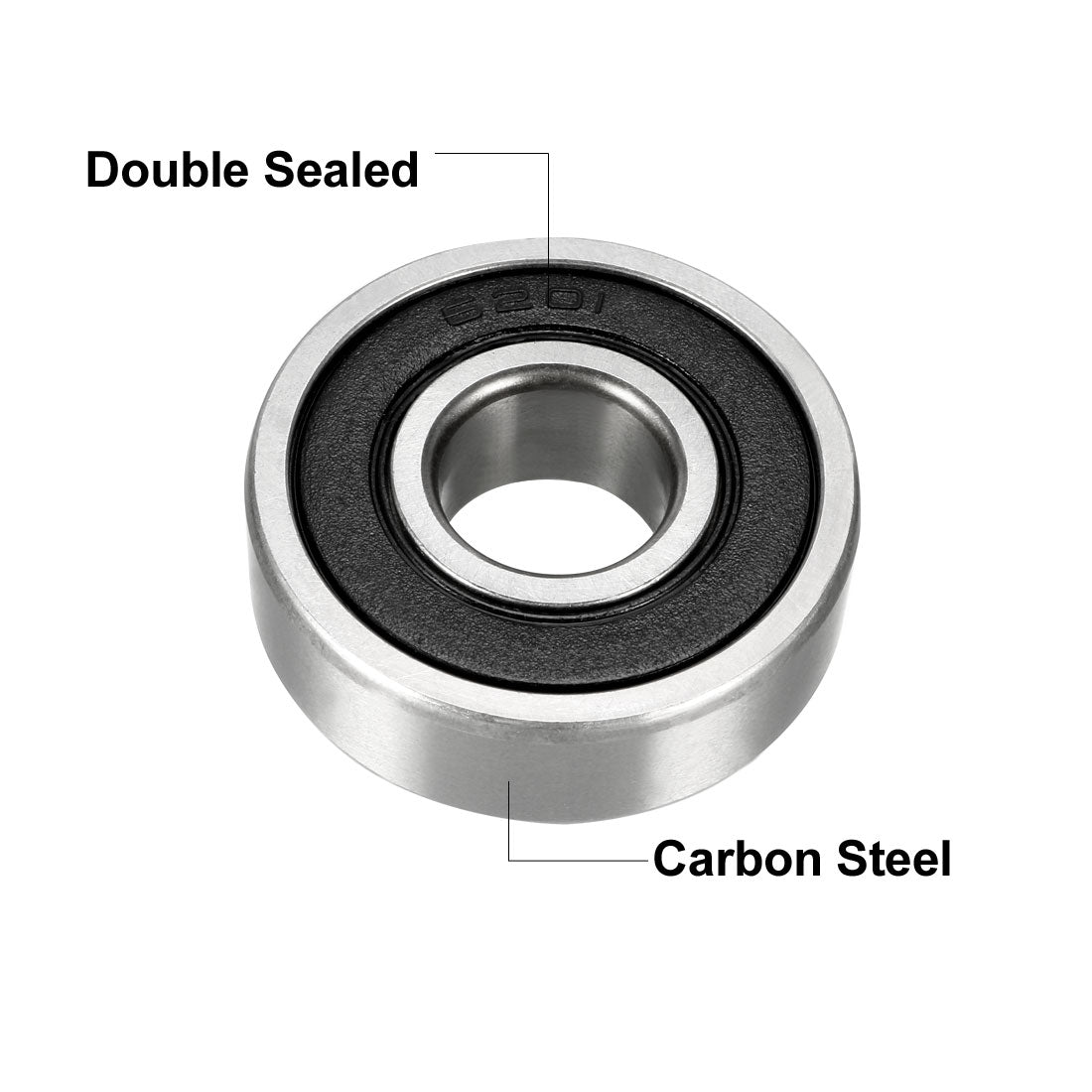

  • Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
  • Made from Carbon Steel, durability and resistance to under heavy loads
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
  • Auf Lager
Einkaufswagen
Warenkorb
Über diesen Artikel
  • Size: 6201-2RS (Inner Dia.=12mm, Outer Dia.=32mm, Thickness=10mm)
  • Sealed on BOTH SIDES of the bearing to keep lubricant in. Suitable for complex environment
  • Made from Carbon Steel, durability and resistance to under heavy loads
  • ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
  • Pre-Lubricated, Easy to maintain
Spezifikation

Spezifikation

Anfrage erfolgreich abgeschickt
Wir werden Ihnen innerhalb von 24 Stunden während der Arbeitszeit antworten. Sollten Sie bis dahin noch keine Antwort erhalten haben, überprüfen Sie bitte Ihren Spam. Wir danken Ihnen!
Zahlungen werden über die Website oder den Stripe-Zahlungslink verarbeitet. Bitte beachten Sie, dass E-Mails von Domainkontakten, die nicht @harfington.com sind, nicht vertraut werden sollten.
Artikel Beschreibung:

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and  loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Uxcell's Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Single-row, pre-lubricated, normal accuracy.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced  (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6201-2RS

Sealed Type: Double Sealed

Material: High-Carbon Steel

Heat Treatment: Quenching



Hardness: HRC50-55

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 32mm

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6.82kN

Static Load Rating (Cor): 3.05kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Weight: 72g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
€10,95 Normaler Preis
/
  • Auf Lager
Einkaufswagen
Warenkorb
Kostenloser Versand über $20

Produktvarianten

Produkte Titel ID Preis Menge
Produkte Titel ID Preis Menge
Menge: {[total.qty]} Artikel(s)
Gesamtbetrag: {[handleCurrency(total.price*100)]}
Mehr sehen

Beschreibung

Beschreibung

NOTE:

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.





Description:

  • Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and  loads in both directions.
  • Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
  • With small friction and high-limit speed, Uxcell's Deep Groove Ball Bearings are cost-effective and require little maintenance.
  • Carbon Steel bearings are better in toughness than chrome steel bearings after quenching. These cost-effective bearings are widely used in areas with low requirements for Mohs hardness.
  • Single-row, pre-lubricated, normal accuracy.





Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced  (oil- and liquid-resistant). Lower limit speed than Shield Bearings.





Specification:

Model: 6201-2RS

Sealed Type: Double Sealed

Material: High-Carbon Steel

Heat Treatment: Quenching



Hardness: HRC50-55

Cage Material: Stamping Steel

Inner Diameter (d): 12mm

Outer Diameter (D): 32mm

Thickness (B): 10mm

Dynamic Load Rating (Cr): 6.82kN

Static Load Rating (Cor): 3.05kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 2 Pcs

Weight: 72g

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
